Description

Price

1

BOLT,12X30

113G1230A

$4.69

2

HOLDER,STEP,L.H.

34003-1021

$57.00

2-1

HOLDER-STEP,FR,LH

34003-1074

$149.42

3

HOLDER,STEP,R.H.

34003-1022

$57.48

3-1

HOLDER-STEP,FR,RH

34003-1075

$149.42

4

STEP-ASSY

34027-1103

$50.53

4-1

STEP-ASSY,FR,RH

34028-1018

Unavailable

5

STEP-ASSY

34027-1103

$50.53

5-1

STEP-ASSY,FR,RH

34028-1018

Unavailable

6

WASHER-SPRING,12MM

461F1200

$0.96

7

PIN COTTER 2.5X16

550D2516

$2.79

8

WASHER,25X36X2.3

92022-250

$5.00

9

PIN,8X31

92043-080

$5.52

9-1

PIN,8X35.5

92043-115

$9.51

10

HOLDER,REAR FOOTREST

34003-1025

$34.78

11

STEP,RR,LH

34028-1009

$35.18

12

STEP,RR,RH

34028-1010

$35.18

13

WASHER-PLAIN,10MM

411B1000

$0.93

14

PIN-COTTER,2.0X12

550D2012

$1.11

15

BOLT,HEX HEAD,10X40

92003-213

Unavailable

16

NUT,LOCK,10MM

92019-021

$6.11

17

WASHER,22.5X30X2.6

92022-181

Unavailable

18

PIN,6X28

92043-1464

$8.10

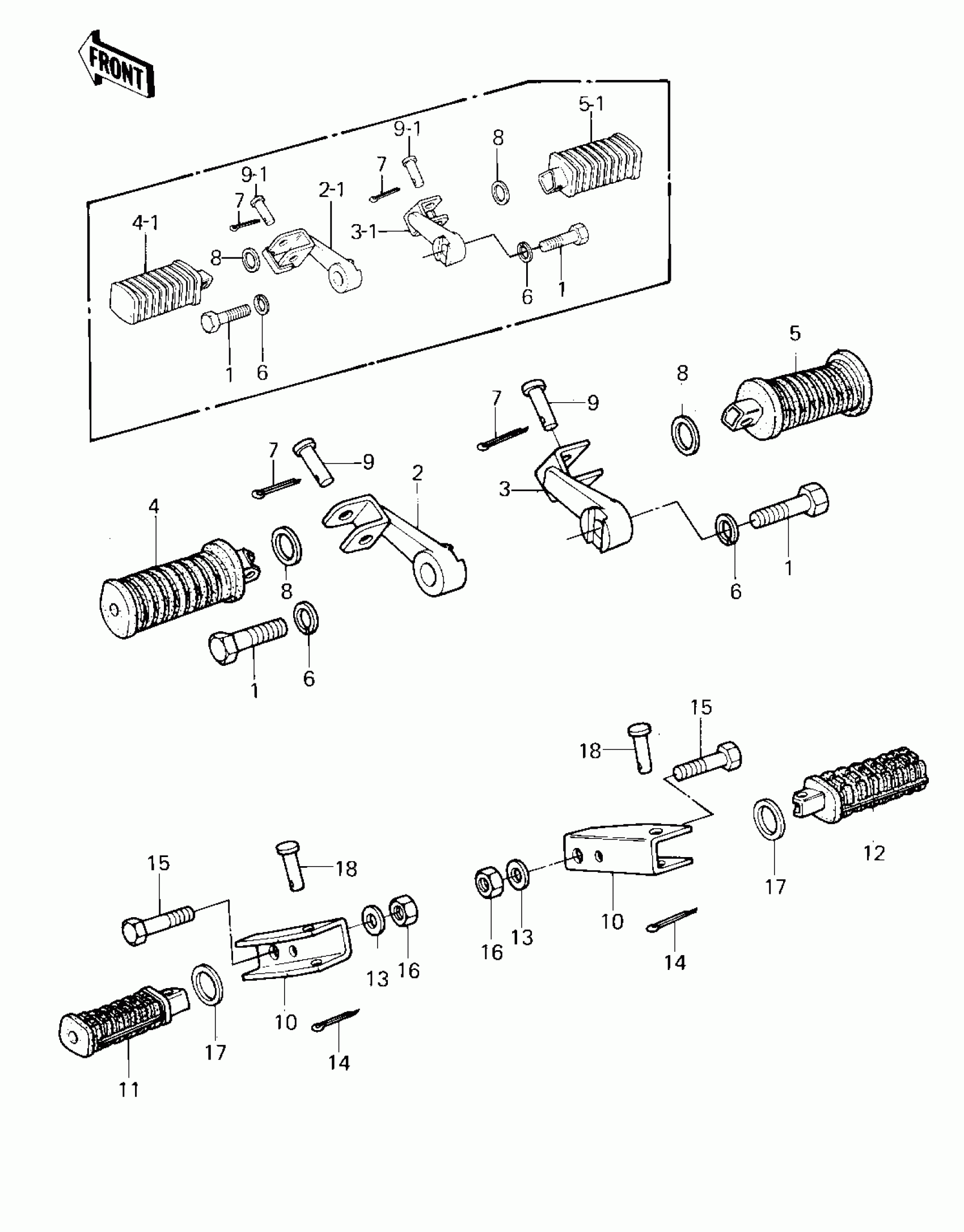

Kawasaki KZ550-A2 FOOTRESTS ('80-'81 A1/A2) Diagram

BOLT,12X30

HOLDER,STEP,L.H.

HOLDER-STEP,FR,LH

HOLDER,STEP,R.H.

HOLDER-STEP,FR,RH

STEP-ASSY

STEP-ASSY,FR,RH

STEP-ASSY

STEP-ASSY,FR,RH

WASHER-SPRING,12MM

PIN COTTER 2.5X16

WASHER,25X36X2.3

PIN,8X31

PIN,8X35.5

HOLDER,REAR FOOTREST

STEP,RR,LH

STEP,RR,RH

WASHER-PLAIN,10MM

PIN-COTTER,2.0X12

BOLT,HEX HEAD,10X40

NUT,LOCK,10MM

WASHER,22.5X30X2.6

PIN,6X28
