1981 Kawasaki KZ550-A2 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1981 Kawasaki KZ550-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

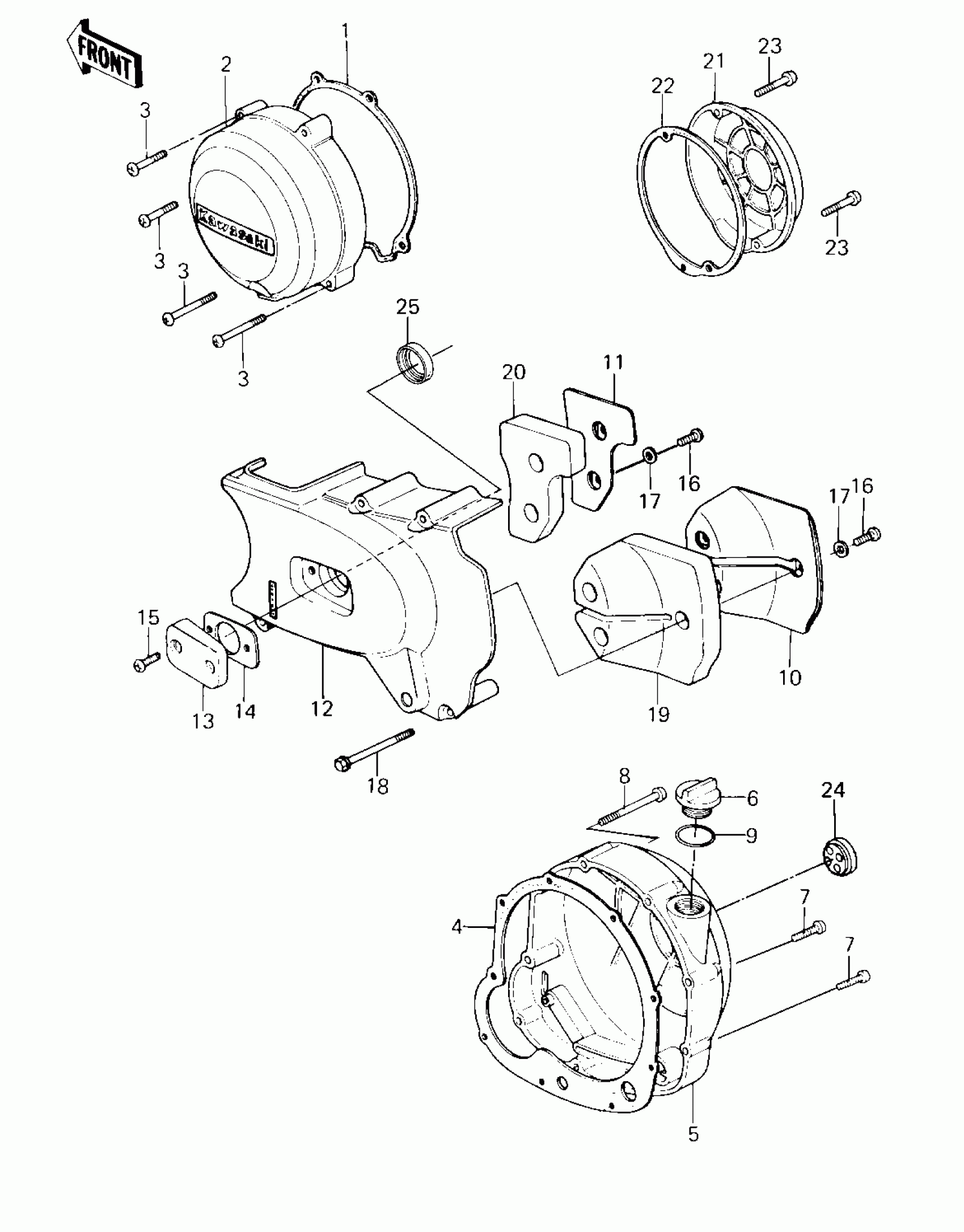

1981 Kawasaki KZ550-A2 Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET,GENERATOR COVER

11060-1055

1
Out of stock

2

COVER,GENERATOR,BUFF

14031-1014

1
Out of stock

3

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

4

GASKET,CLUTCH COVER

11060-1054

1
Out of stock

5

COVER,CLUTCH,BUFF

14032-5004

1
Out of stock

6

CAP-OIL FILLER

16115-013

1
Out of stock

7

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

8

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

9

RING-O,31.5X2.6

92055-049

1
Out of stock

10

COVER,SOUND ARRESTER

14025-1115

1
Out of stock

11

COVER,SOUND ARRESTER

14025-1116

1
Out of stock

12

COVER,CHAIN

14026-1015

1
Out of stock

12

COVER,CHAIN

14026-1047

1
Out of stock

13

COVER,CLUTCH ADJUSTNG

14028-006-80

1
Out of stock

14

GASKET,CLUTCH ADJ CAP

14049-004

1
Out of stock

15

SCREW PAN HEAD 6X18

220B0618

1
Out of stock

16

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

17

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

18

BOLT-FLANGED,6X70

130G0670

1
Out of stock

19

DAMPER,CHAIN COVER RR

92075-1158

1
Out of stock

20

DAMPER,CHAIN COVER FR

92075-1159

1
Out of stock

21

CAP,CONTACT BREAKER

11012-1098

1
Out of stock

22

GASKET,PULSING COIL CAP

11060-1053

1
Out of stock

23

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

24

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

25

SEAL-OIL,CLUTCH RELEASE

92049-1003

1
Out of stock
