1981 Kawasaki KZ550-A2 Crankcase Bolt & Stud Pattern ('80-'81 A Diagram

← All diagrams

Find the part on the Crankcase Bolt & Stud Pattern ('80-'81 A diagram for your 1981 Kawasaki KZ550-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

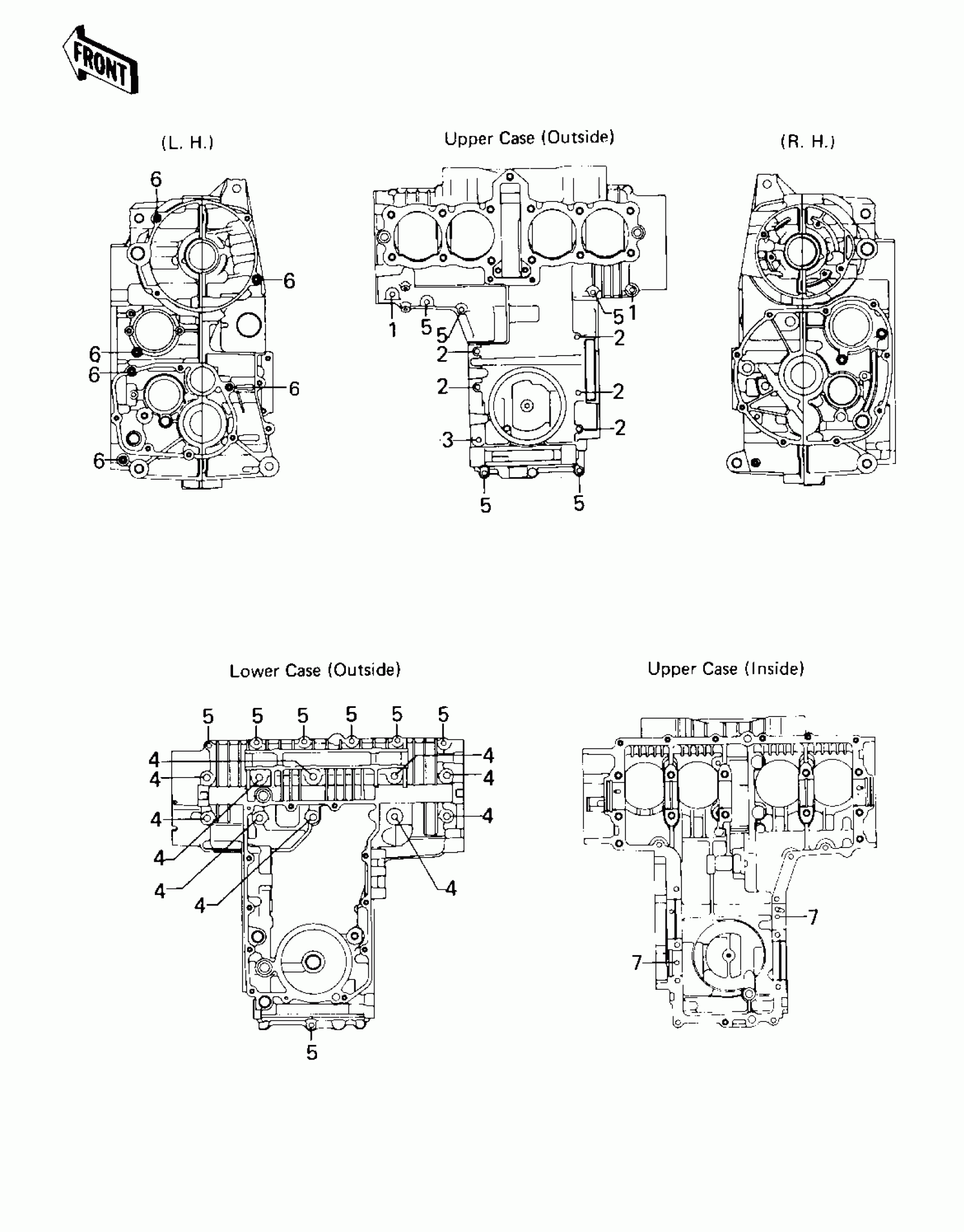

1981 Kawasaki KZ550-A2 Crankcase Bolt & Stud Pattern ('80-'81 A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

?

UNAVAILABLE IN PRICE BOOK

?

—
Out of stock

?

UNAVAILABLE IN PRICE BOOK

?

—
Out of stock

3

BOLT,6X105

92003-194

1
Out of stock

4

BOLT-FLANGED,8X95

130P0895

1
Out of stock

5

BOLT,HEX HEAD,6X41

92003-109

1
Out of stock

6

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

7

PIN,DOWEL,6X16

92042-016

1
Out of stock
← Crankcase Crankshaft Secondary Shaft ('80-'81 A1/A →
