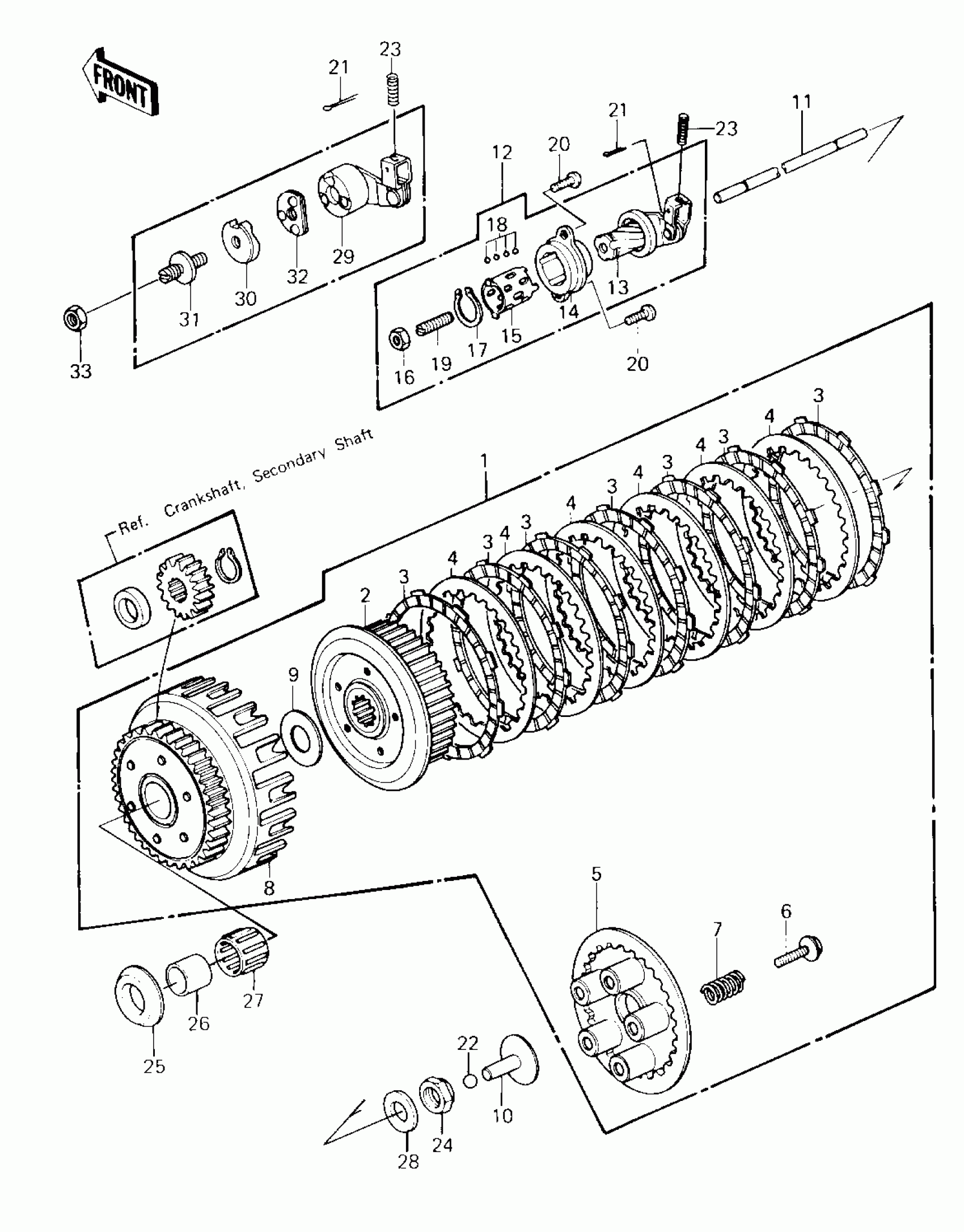

Kawasaki KZ550-A2 CLUTCH ('80-'81 A1/A2) Diagram

#

Description
Price

1

CLUTCH-ASSY

13081-1044

Unavailable

2

HUB-CLUTCH

13087-1052

Unavailable

3

PLATE-FRICTION

13088-040

$12.57

4

PLATE-CLUTCH,T=2.0

13089-026

$12.80

5

PLATE,CLUTCH SPRING

13187-008

Unavailable

6

BOLT,FLANGED,6X18

92001-1066

$6.22

7

SPRING,CLUTCH

92081-139

$8.51

8

HOUSING-COMP-CLUTCH

13095-1030

Unavailable

9

SPACER,25.5X47X2.5

92026-022

$9.91

10

PUSHER,CLTCH SPRG PLT

13116-029

Unavailable

11

ROD,CLUTCH PUSH

13116-1007

Unavailable

12

RELEASE ASSY,CLUTCH

13231-020

Unavailable

13

INNER,CLUTCH RELEASE

13102-027

Unavailable

14

OUTER,CLUTCH RELEASE

13118-011

Unavailable

15

RETAINER

13197-004

Unavailable

16

NUT-HEX-SMALL,8MM

318B0800

$0.59

17

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

18

BALL,STEEL,1/8"

600A0400

$1.40

19

SCREW,SLOTTED,8X25

92014-014

Unavailable

20

SCREW-PAN-CROS,6X16

220B0616

$2.84

21

PIN-COTTER,1.6X15

550D1615

$2.51

22

BALL-STEEL,3/8"

600A1200

$1.56

23

SPRING,CLUTCH RELEASE

92081-069

$7.51

24

NUT,20MM

92015-1555

$13.08

25

SPACER,THRUST,T=5.5

92026-116

$17.60

26

BUSHING,25X32X23.6

92028-178

$25.03

27

BEARING-NEEDLE,KTV323723

92046-028

$21.24

28

WASHER

92125-002

Unavailable

29

RELEASE,CLUTCH

13102-1008

Unavailable

30

CAM-RELEASE,CLUTCH

13119-1003

$16.96

31

SCREW,8MM

92009-1009

$4.99

32

BEARING,BALL,CLUTCH

92045-1001

$11.60

33

NUT-HEX-SMALL,8MM

318B0800

$0.59
