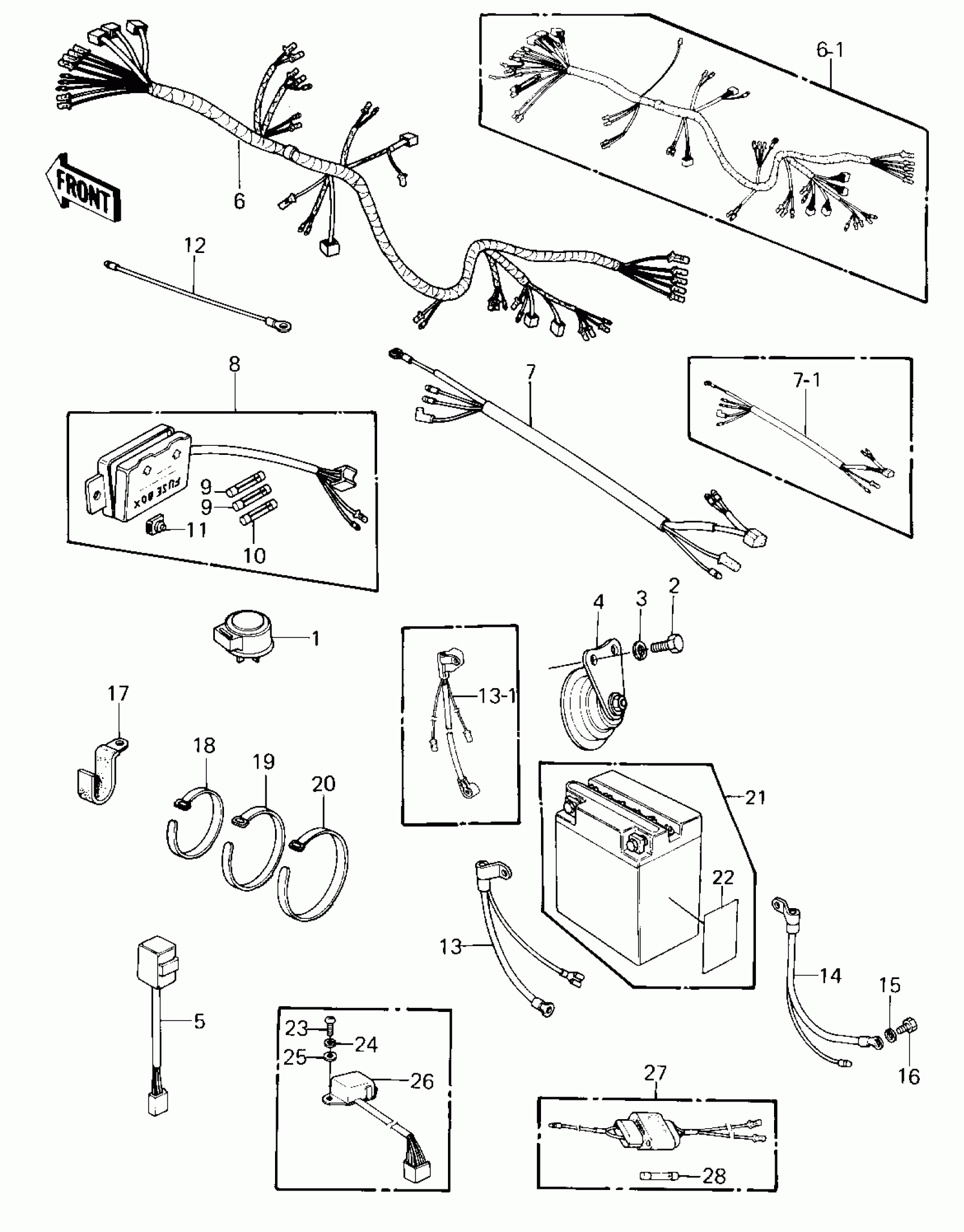

Kawasaki KZ550-A2 CHASSIS ELECTRICAL EQUIPMENT ('80-'81 A1 Diagram
#
Description
Price
1
RELAY-ASSY,TURN SIGNAL
27002-011
$101.43
2
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
3
WASHER SPRING 8MM
461F0800
$0.40
4
HORN
27003-1014
$156.18
5
SWITCH,OUTAGE,INDICTR
28019-001
Unavailable
6
WIRING HARNESS,MAIN
26001-1126
Unavailable
6-1
HARNESS,MAIN
26001-1230
$264.46
7
WIRING HARNESS,SUB
26001-1051
$55.84
7-1
HARNESS,SUB
26001-1202
$82.77
8
FUSE ASSY
26004-1002
$101.21
9
FUSE,10A,L=25
26006-003
$4.72
10
FUSE,20A,L=25
26006-005
$5.06
11
DAMPER,FUSE
92075-279
$6.45
12
WIRE-LEAD,L=285
26011-095
$11.60
13
WIRE-LEAD,BATTERY(T)
26011-1155
Unavailable
13-1
WIRE-LEAD,BATTERY
26011-1156
$41.15
14
WIRE,LEAD,BATTERY(-)
26011-1032
Unavailable
15
WASHER SPRING 6MM
461F0600
$0.69
16
BOLT,6X10
92001-137
$6.52
17
CLAMP,WIRING HARNESS,L=60
92037-1069
Unavailable
18
BAND,L=123
92072-030
$5.00
19
BAND,L=149
92072-031
$5.00
20
BAND,L=218
92072-032
$5.00
21
FB BAT FB12A-A
26012-1004
$95.75
22
LABEL-WARNING,BATTERY
56040-1036
Unavailable
23
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
24
WASHER SPRING 6MM
461F0600
$0.69
25
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
26
SWITCH,RESERVE LIGHTI
27010-1024
Unavailable
27
FUSE-ASSY,ACCESSORY
26004-1014
$70.27
28
FUSE,GLASS TUBE,6.4X30,10A,YEL
26006-1002
$4.96
