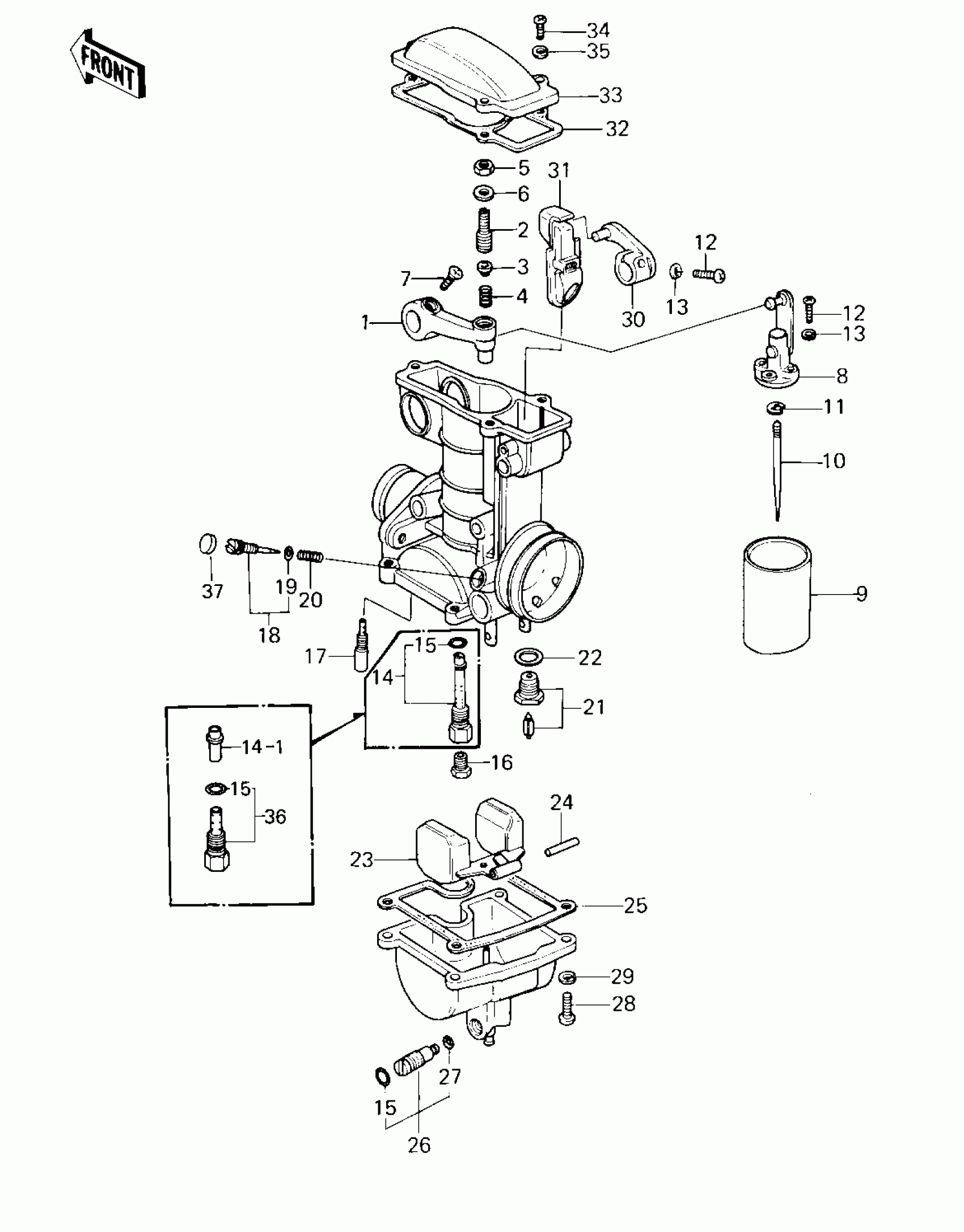

Kawasaki KZ550-A2 CARBURETOR PARTS ('80-'81 A1/A2) Diagram
#
1
ARM,THROTTLE
21083-1006
$27.51
2
SCREW,ADJUST,THROTTLE
92009-1079
Unavailable
3
PIN,SPRING,THROTTLE
92043-1065
Unavailable
4
SPRING,THROTTLE ARM
92081-1189
Unavailable
5
NUT-HEX,5MM
312B0500
$0.46
6
WASHER,PLAIN
92022-1167
Unavailable
7
SCREW.CNTSNK HD,4X12
92009-1080
$5.71
8
BRACKET ASSY,THROTTLE
11034-1587
Unavailable
9
VALVE,THROTTLE,CA2.5
16025-1038
$62.60
10
JET NEEDLE,#4D92
16009-1060
$30.35
10
JET NEEDLE,#4D93
16009-1061
$29.43
11
CIRCLIP,JET NEEDLE
92037-1157
$4.18
12
SCREW-PAN-CROS
220B0312
$1.58
13
WASHER SPRING 3MM
461F0300
$0.46
14
NEEDLE JET,#V95
16017-1044
Unavailable
14-1
NEEDLE JET,#V95
16017-1057
Unavailable
15
"O"RING,5M/M
92055-1069
$9.08
16
MAIN JET,#92
92063-1055
Unavailable
17
PILOT JET #32
92064-1028
Unavailable
18
USSCREW,AIR ADJUSTING
16014-1024
$6.66
18
SCREW,AIR ADJUSTING
16014-1019
Unavailable
19
"O" RING,AIR SCREW
92055-1070
$8.67
20
SPRING,AIR SCREW
92081-1190
$6.41
21
FLOAT VALVE ASSY.
16030-1009
$107.59
22
GASKET,FLOAT VALVE
11009-1160
$5.69
23
FLOAT
16031-1009
Unavailable
24
PIN
92043-1066
Unavailable
25
GASKET,FLOAT CHAMBER
11009-1161
$19.31
26
SCREW,DRAIN
92066-1065
$18.25
27
"O" RING,OVERFLOW
92055-1071
$8.67
28
SCREW PAN HEAD 4X16
220B0416
$1.66
29
WASHER SPRING 4MM
461F0400
Unavailable
30
ARM,CHOKE
21083-1007
$37.35
31
VALVE ASSY,CHOKE
16126-1024
Unavailable
32
GASKET,MIXING CHAMBER
11009-1162
$20.61
33
TOP,MIXING CHAMBER
16005-1008
$31.13
34
SCREW-PAN-CROS
220B0414
$4.28
35
WASHER SPRING 4MM
461F0400
Unavailable
36
PIPE,BLEED
49122-1010
Unavailable
37
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
