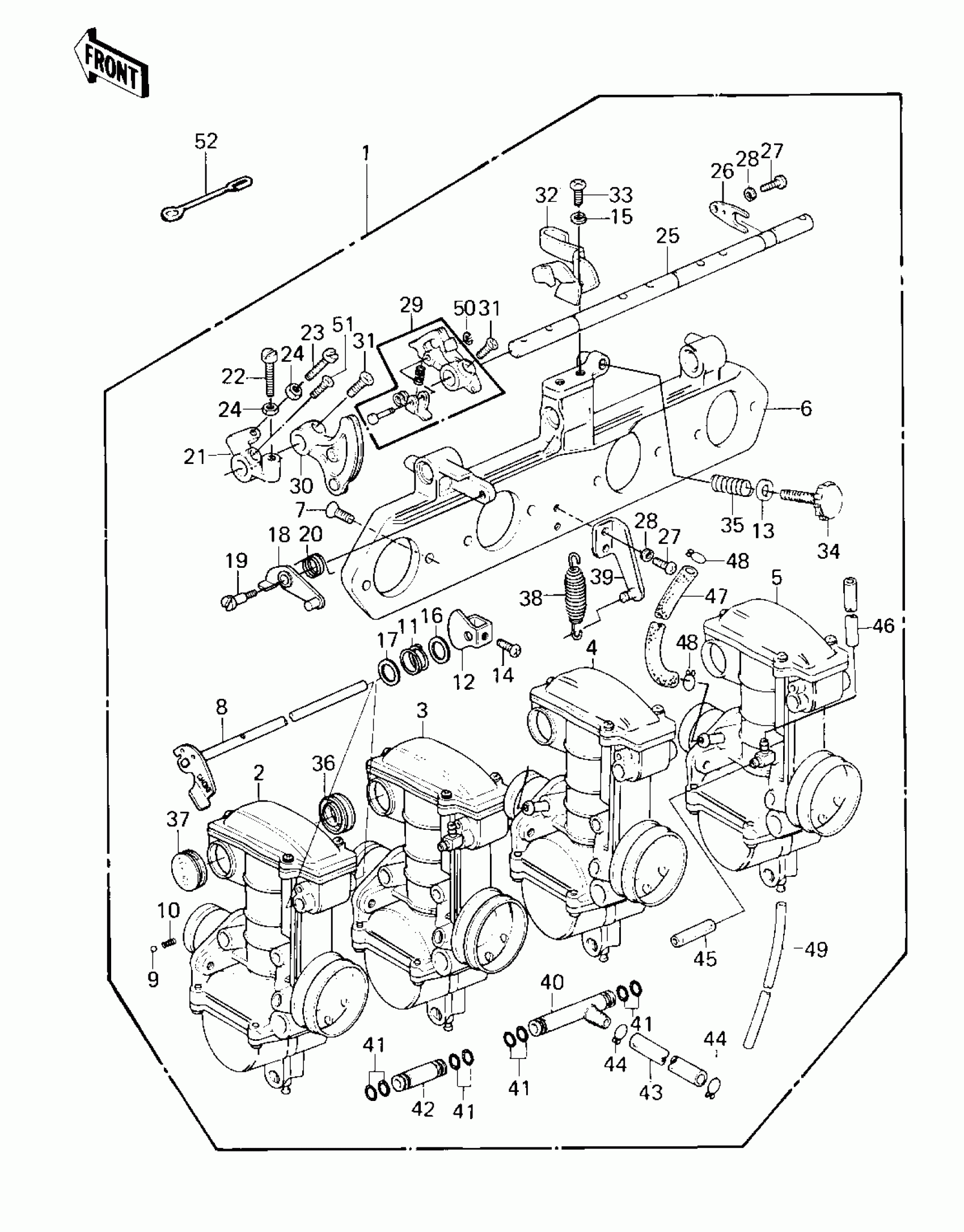

Kawasaki KZ550-A2 CARBURETOR ASSY ('80-'81 A1/A2) Diagram

#

Description
Price

1

CARBURETOR ASSY,

16001-1210

$1,091.07

1

CARBURETOR ASSY, (Canada)

16001-1285

Unavailable

2

CARBURETOR,L.H,OUTSID

16001-1255

$249.12

2

CARBURETOR,L.H,OUTSID (Canada)

16001-1305

Unavailable

3

CARBURETOR,L.H,INSIDE

16001-1254

$248.40

3

CARBURETOR,L.H,INSIDE (Canada)

16001-1306

Unavailable

4

CARBURETOR,R.H,INSIDE

16001-1253

$248.40

4

CARBURETOR,R.H,INSIDE (Canada)

16001-1307

Unavailable

5

CARBURETOR,R.H,OUTSID

16001-1252

$237.09

5

CARBURETOR,R.H,OUTSID (Canada)

16001-1308

Unavailable

6

BRACKET,CARBURETOR

11034-1588

Unavailable

7

SCREW-CSK-CROS,6X16

221B0616

$0.59

8

SHAFT,CHOKE LEVER

16041-1021

$32.02

9

BALL-STEEL,5/32

600A0500

$0.81

10

SPRING, CHOKE LEVER

92081-1195

$2.73

11

SPRING,CHOKE LEVER

92081-1191

$8.96

12

CAM,CHOKE

49060-1002

$12.77

13

WASHER PLAIN 6MM

411B0600

$2.84

14

SCREW PAN HEAD 4X8

220B0408

$0.67

15

WASHER SPRING 6MM

461F0600

$0.69

16

WASHER,CHOKE LEVER

92022-1168

$5.27

17

WASHER,CHOKE LEVER

92022-1169

$5.25

18

LEVER ASSY,TIMING

13168-1053

Unavailable

19

SCREW,TIMING LEVER

92009-1081

Unavailable

20

SPRING,TIMING LEVER

92081-1192

$5.11

21

BRACKET,THROTTLE STOP

11034-1590

Unavailable

22

SCREW,TIMING LEVER

92009-1082

$5.25

23

SCREW,THROTTLE STOP

92009-1083

$4.57

24

NUT-HEX,5MM

312B0500

$0.46

25

SHAFT,THROTTLE

16041-1012

$121.22

26

PLATE,THROTTLE SHAFT

11034-1591

Unavailable

27

SCREW-PAN-CROS

220B0514

$4.04

28

WASHER SPRING 5MM

461F0500

$0.69

29

LEVER ASSY,THROTTLE

13168-1054

Unavailable

30

LEVER,ASSY,THROTTLE

13168-1055

Unavailable

31

SCREW,CNTSNK HD,5X14

221B0514A

$3.38

32

BRACKET,THROTTLE CABL

11034-1592

Unavailable

33

SCREW-PAN-CROS,6X14

220B0614

$1.48

34

SCREW,THROTTLE STOP

16021-1017

$18.09

35

SPRING,ADJUST SCREW

92081-1193

Unavailable

36

DUST SEAL,THROTTLE

92093-1033

Unavailable

37

CAP,THROTTLE SHAFT

92093-1034

Unavailable

38

SPRING,THROTTLE RETRN

92081-1381

$14.78

39

BRACKET,THROTTLE RETN

11034-1593

Unavailable

40

"T"JOINT,FUEL

92005-1020

Unavailable

41

O RING,7MM

670B1507

$1.28

42

JOINT,FUEL

92005-1021

$37.66

44

CLAMP,FUEL HOSE

92037-1158

$8.84

45

HOSE,AIR VENT,4.5X30

92059-1099

$5.51

46

HOSE,AIR VENT,4.5X300

92059-1100

$24.74

47

HOSE,NEGATIVE PRESSUR

92059-1101

$37.74

48

CLAMP,NEGATIVE PRESSU

92037-1159

$3.60

49

HOSE,OVERFLOW,3.5X550

92059-1102

$28.95

50

CIRCLIP,3M/M

482J3000

$3.22

51

SCREW.CNTSNK HD,4X12

92009-1080

$5.71

52

CLAMP,OVER FLOW PIPE

92037-134

$11.50
