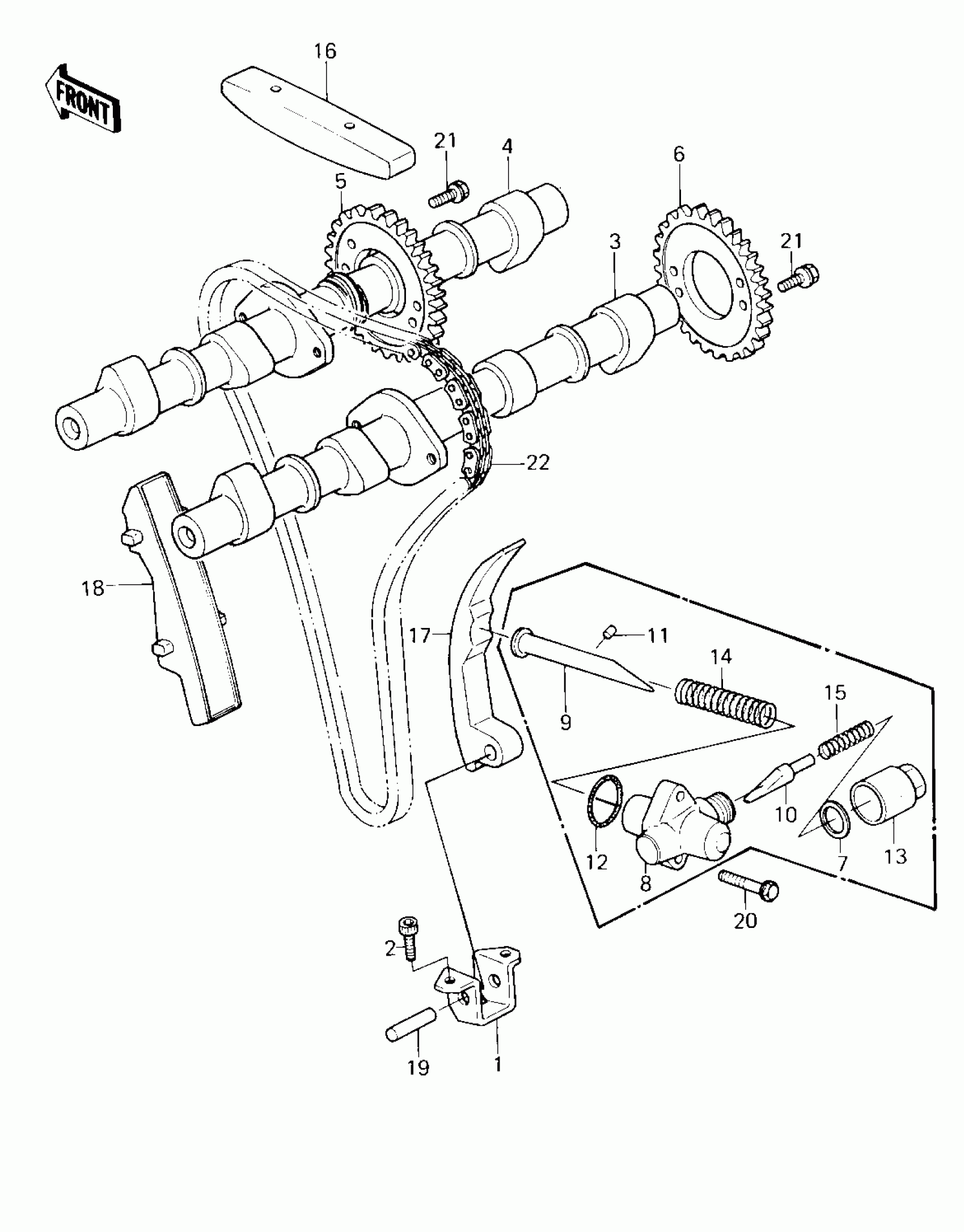

Kawasaki KZ550-A2 CAMSHAFT CHAIN TENSIONER ('80-'81 A1/A2) Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

?

Unavailable

2

UNAVAILABLE IN PRICE BOOK

?

Unavailable

3

UNAVAILABLE IN PRICE BOOK

?

Unavailable

4

CAM SHAFT,EXHAUST

12044-1004

Unavailable

5

SPROCKET,CAMSHAFT,42T

12046-1019

$81.47

6

SPROCKET,CAMSHAFT,42T

12046-1019

$81.47

7

WASHER,18.3X24X1.4

92022-1175

$4.39

8

TENSIONER,CAM CHAIN

12049-1009

$54.23

9

ROD-PUSH,CAM CHAIN

13116-1020

$38.11

10

ROD-PUSH,TENSIONER

13116-1012

$19.66

11

ROLLER,4X8

610A0408

$4.31

12

O RING,22MM

670B2022

$4.69

13

NUT,CAP,18MM

92015-1100

$13.08

14

SPRING,TENSIONER

92081-1075

$5.03

15

SPRING,TENSIONER

92081-1302

$5.54

16

GUIDE-CHAIN,CAM,HEAD

12053-1018

$35.78

17

GUIDE-CHAIN,CAM,RR

12053-1113

$83.54

18

GUIDE-CHAIN,CAM,FR

12053-1022

$42.72

19

PIN,DOWEL,8X25

551A0825

$0.81

20

BOLT,FLANGED,6X25

130G0625

$1.17

21

BOLT,FLANGED,6X11

92003-208

$4.31

22

CHAIN,CAM,82RH2015-140L

92057-1290

$115.07
