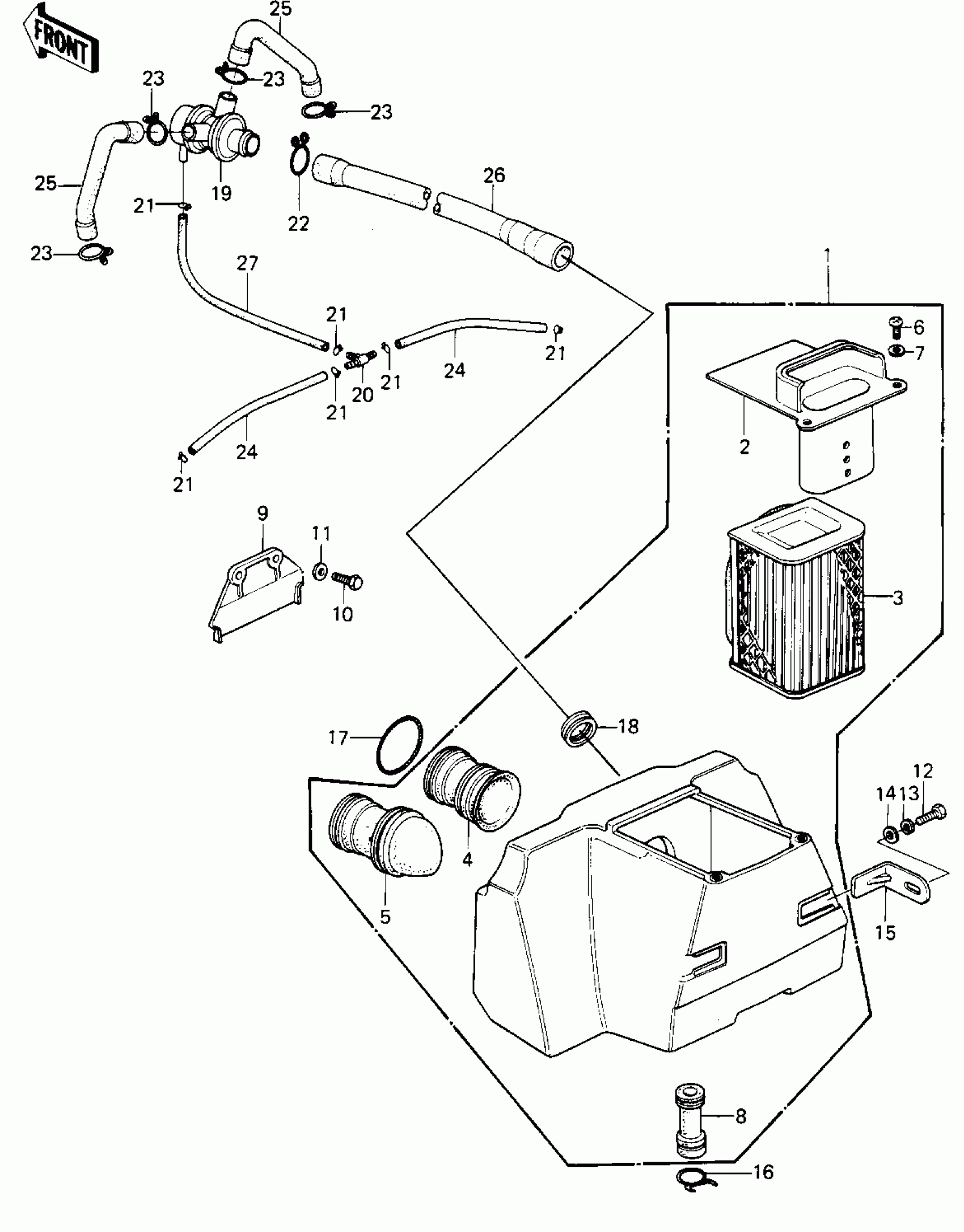

Kawasaki KZ550-A2 AIR CLEANER ('80-'81 A1/A2) Diagram
#
Description
Price
1
FILTER-ASSY-AIR
11010-1103
Unavailable
1
11010-1104 (Canada)
11010-1054
Unavailable
2
CAP,AIR FILTER
11012-1183
Unavailable
3
ELEMENT,AIR CLNR
11013-1013
$30.51
4
INLET DUCT,#2,3
11015-057
$24.19
5
INLET PIPE,#1.4
11015-063
$37.15
6
SCREW PAN HEAD 6X12
220B0612
Unavailable
7
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
8
TUBE,BREATHER,10X63L
92059-1200
Unavailable
9
BAFFLE PLT,AIR CLEANE
11019-003
Unavailable
10
BOLT-UPSET
112G0618
$1.01
11
WASHER PLAIN 6MM
411B0600
$2.84
12
BOLT-UPSET,6X12
112G0612
$1.45
13
WASHER SPRING 6MM
461F0600
$0.69
14
WASHER PLAIN 6MM
411B0600
$2.84
15
BRACKET,AIR CLEANER
32070-038
$5.86
16
CLAMP BREATHER PIPE
92037-028
Unavailable
17
SPRING COIL
92081-047
$11.29
18
GROMMET,AIR FILTER
92071-1013
$6.46
19
VALVE ASSY,AIR SWITCH
16126-1017
Unavailable
20
FITTING,TUBE,T-TYPE
92005-1017
Unavailable
21
CLAMP,TUBE
92037-072
$7.22
22
CLAMP,TUBE
92037-1076
$7.22
23
CLAMP,TUBE
92037-213
$4.31
24
TUBE,VACUUM,LONG
92059-1162
$19.09
25
TUBE
92059-1034
Unavailable
26
TUBE,19X21X340L
92059-1039
Unavailable
27
TUBE,4X9X220
92059-1040
$10.19
