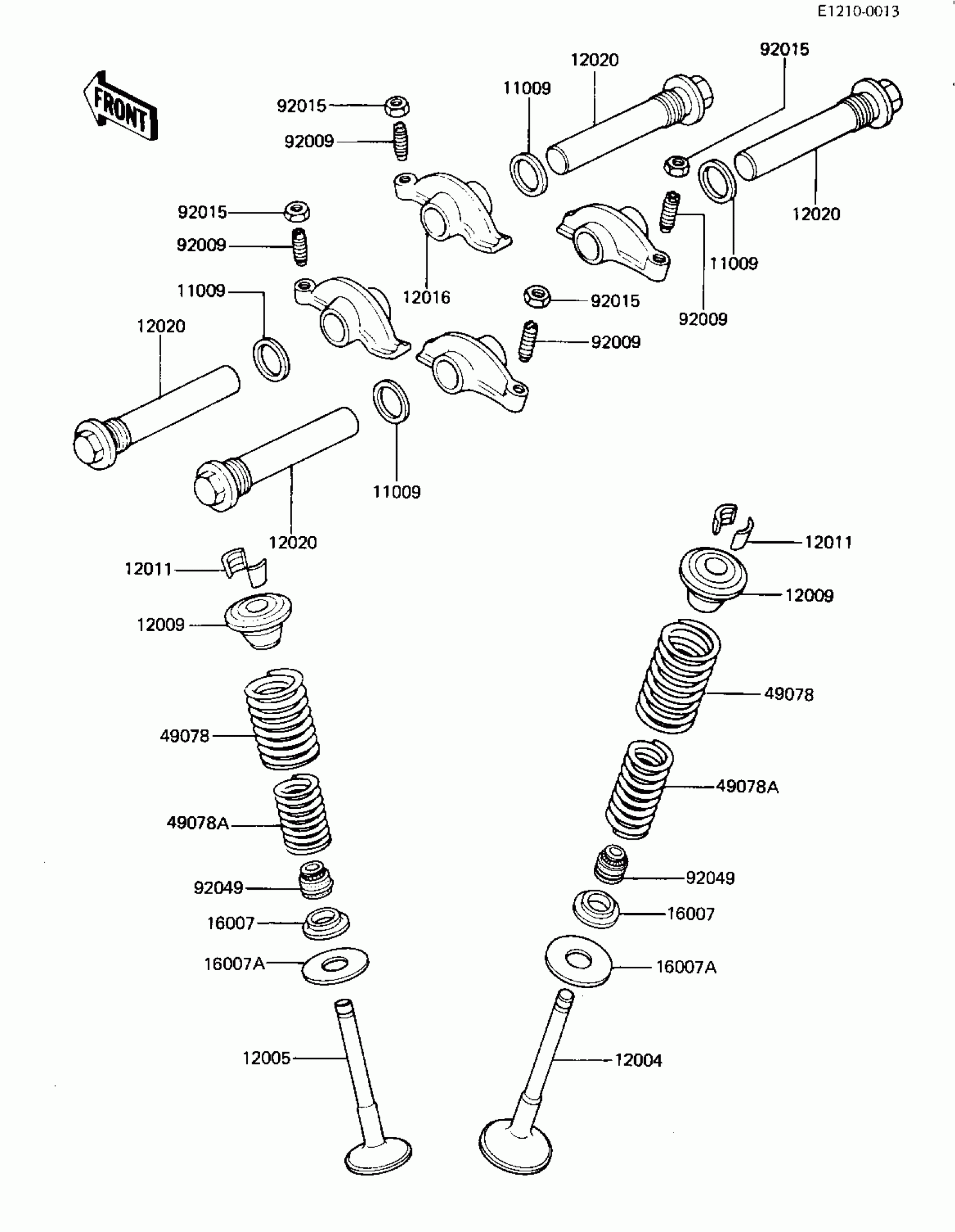

Kawasaki KZ440-G1 ROCKER ARMS/VALVES Diagram

Description

Price

11009

GASKET,16X19.7X1.5

11009-1106

$6.26

12004

VALVE,INTAKE

12004-1008

Unavailable

12005

VALVE,EXHAUST

12005-1007

Unavailable

12009

RETAINER,VALVE SPRING

12009-006

$11.50

12011

COLLET,RETAINER

12011-004

$5.46

12016

ARM,ROCKER

12016-1001

Unavailable

12020

SHAFT,ROCKER

12020-1001

Unavailable

16007

SEAT-SPRING,INNER

16007-1045

$6.16

16007A

SEAT-SPRING,OUTER

16007-1046

$6.16

49078

SPRING,OUTER VALVE

12007-013

$16.53

49078A

SPRING,INNER VALVE

12007-014

$16.53

92009

SCREW,6MM

92009-1032

$7.29

92015

NUT,6MM

92016-061

$4.69

92049

SEAL-OIL,RV37129.5

92049-016

$18.35
