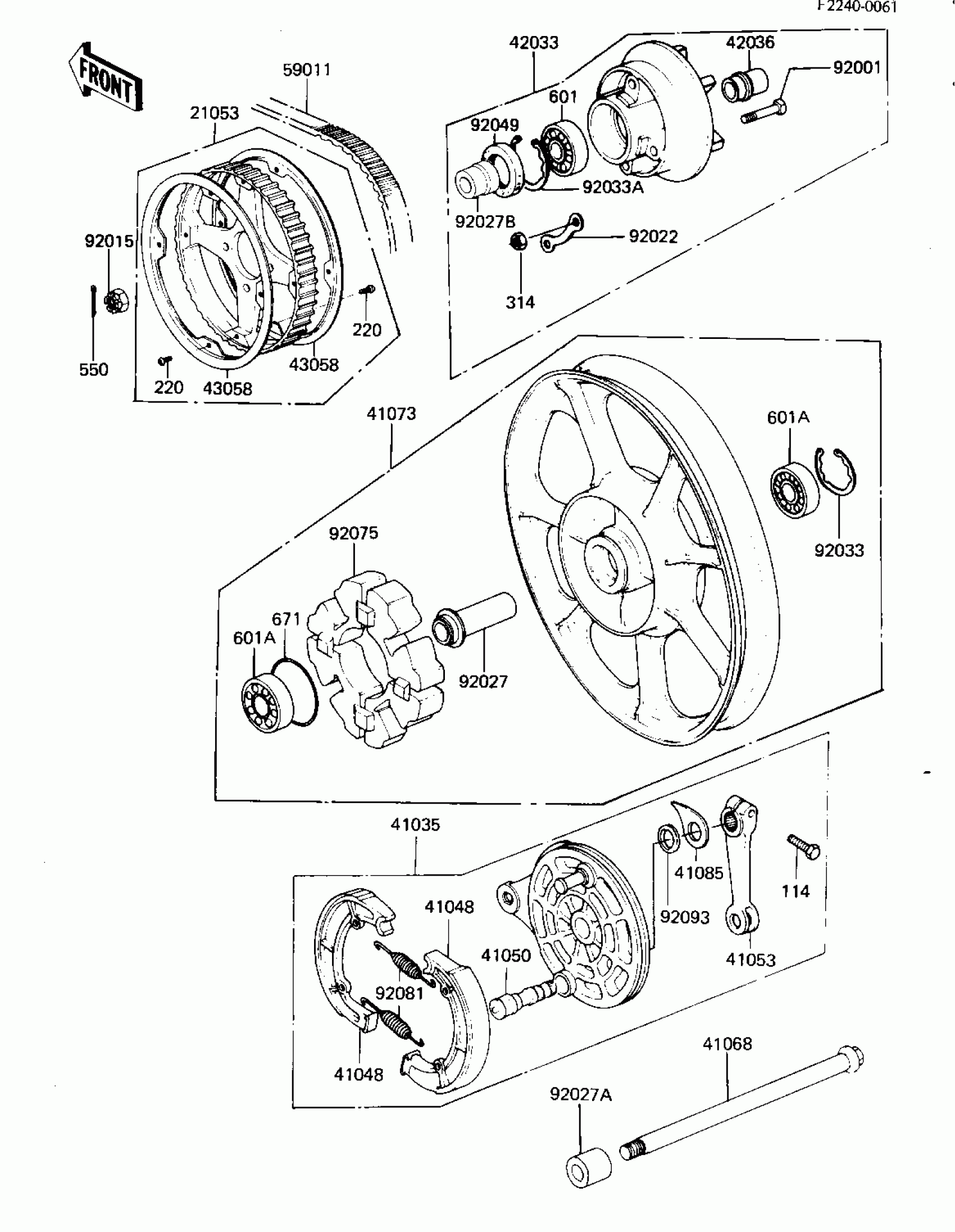

Kawasaki KZ440-G1 REAR WHEEL/HUB/BRAKE/BELT Diagram

#

Description
Price

21053

SPROCKET-ASSY,RR HUB

21053-1009

$396.37

41035

PANEL-ASY,RR BRK

41035-1087

$158.05

41048

SHOE-BRAKE

41048-1069

$27.31

41050

CAM-BRAKE

41050-1001

$35.31

41053

LEVER-BRAKE,CAM

41053-1016

$47.79

41068

AXLE,RR

41068-1060

$68.19

41073

WHEEL-ASSY,RR,SOLID

41073-1098

$315.93

41085

INDICATOR,BRAKE SHOE

41085-004

Unavailable

42033

COUPLING-ASSY,RR HUB

42033-1046

$154.48

42036

SLEEVE,RR HUB COUPLING

42036-1002

Unavailable

43058

RING,HUB SPROCKET

43058-1018

$58.82

59011

BELT,DRIVE,129T

59011-1009

Unavailable

92001

BOLT,HUB SPROCKET,10X55

92003-156

Unavailable

92015

NUT,16MM

92015-055

$11.50

92022

WASHER,SPROCKET LOCK

92088-005

$6.24

92027

COLLAR REAR HUB BRG (Canada)

92027-1192

Unavailable

92027A

COLLAR,L=34.5

92027-1395

$14.02

92027B

COLLAR,L=30.5

92027-1398

$21.07

92033

RING-SNAP,47MM

92033-1042

$4.22

92033A

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,TWC35527

92052-006

Unavailable

92075

DAMPER,SHOCK,RR HUB

92075-1008

Unavailable

92081

SPRING,BRAKE SHOE

42020-004

$8.51

92093

SEAL,BRAKE CAM

41051-003

$4.26

114

BOLT HEX HEAD 8X28

114G0828

$3.71

220

SCREW PAN HEAD 5X10

220B0510

$0.69

314

NUT-HEX-FINE,10MM

314B1000

$0.67

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6205C3

601B6205

$19.57

601A

UNAVAILABLE IN PRICE BOOK

601B630322

Unavailable

671

O RING,60MM

671B2560

$6.91
