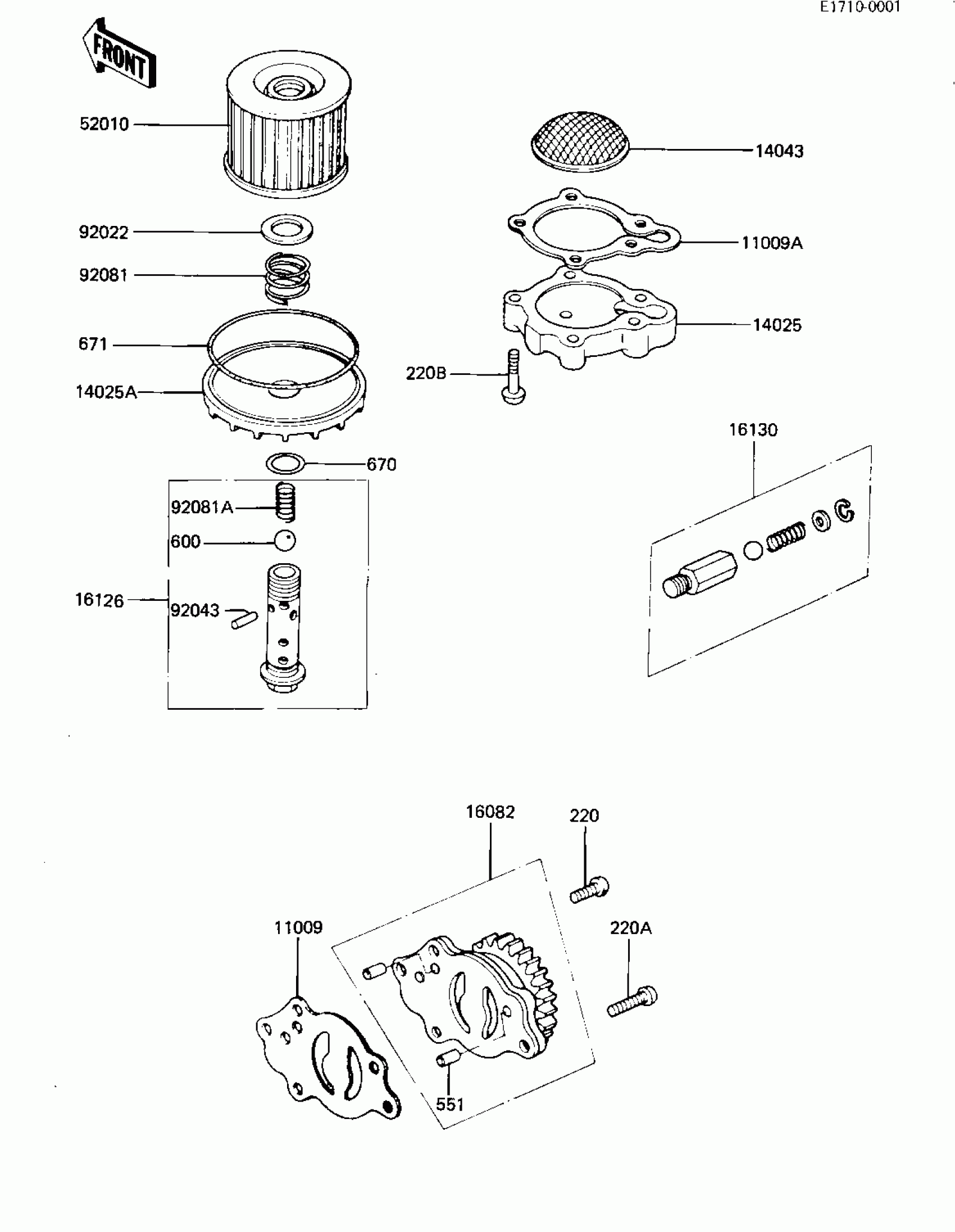

Kawasaki KZ440-G1 OIL PUMP/OIL FILTER Diagram

Description

Price

11009

GASKET,OIL PUMP

11009-1014

Unavailable

11009A

GASKET,OIL FILTER COVER

11009-1874

$6.18

14025

COVER,OIL STRAINER

16101-003

$17.75

14025A

COVER,OIL FILTER

16101-004

$39.50

14043

FILTER,OIL

16111-003

$19.41

16082

OIL PUMP ASSY

16082-1001

Unavailable

16126

VALVE,OIL FILTER

16126-1108

$37.32

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

52010

ELEMENT-OIL FILTER

16099-003

$9.28

92022

WASHER,20.5X30X1

92022-1012

$3.32

92043

PIN,SPRING,2X20

92043-111

$5.46

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-109

$10.85

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

220A

SCREW PAN HEAD 6X25

220B0625

Unavailable

220B

SCREW PAN HEAD 6X30

220B0630

Unavailable

551

PIN-DOWEL,6X12

551A0612

$0.78

600

BALL-STEEL,3/8"

600A1200

$1.14

670

O RING,16MM

670B2016

$1.04

671

O RING,90MM

671B2590

$7.54
