Description

Price

23004

LIGHT UNIT HEAD

23003-022

Unavailable

23005

BODY-COMP-HEAD LAMP,F.BLACK

23005-047-21

Unavailable

23006

RIM-LAMP

23006-044

$92.87

23007

LENS-COMP,"001-1269" MARK

23007-059

$99.38

23008

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

92001

BOLT,10X35

92007-024

$8.06

92009

SCREW,FOCUS ADJUSTING

23019-021

$4.69

92009A

SCREW,PAN HEAD,5X12

23019-023

$5.43

92009B

SCREW,5MM

92011-024

$2.58

92015

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92015A

NUT,10MM

23020-021

Unavailable

92015B

NUT,5MM

23020-023

Unavailable

92022

WASHER,4.1X8X0.8

23021-004

$2.91

92022A

WASHER

23021-010

$4.31

92022B

WASHER,PLAIN,5MM

23021-012

$5.43

92022C

WASHER

92022-289

$16.33

92027

COLLAR,HEAD LAMP

92027-1129

$6.35

92027A

COLLAR,10.2X13.4X8.1

92027-231

Unavailable

92075

DAMPER,LAMP

92075-128

$5.86

92081

SPRING,FOCUS ADJUSTING

23014-011

Unavailable

461

WASHER SPRING 5MM

461F0500

$0.69

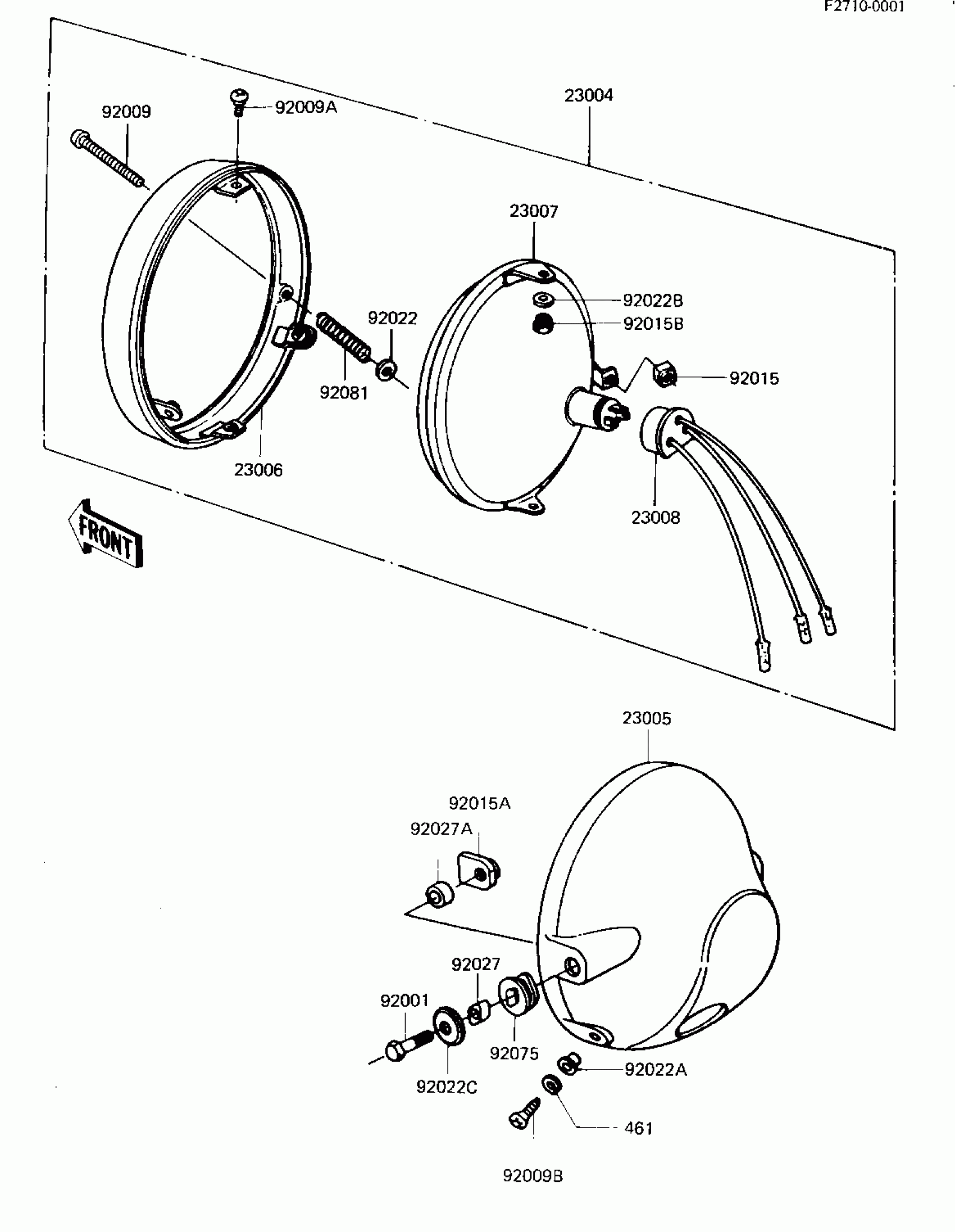

Kawasaki KZ440-G1 HEADLIGHT Diagram

LIGHT UNIT HEAD

BODY-COMP-HEAD LAMP,F.BLACK

RIM-LAMP

LENS-COMP,"001-1269" MARK

SOCKET ASSY,HEAD LAMP

BOLT,10X35

SCREW,FOCUS ADJUSTING

SCREW,PAN HEAD,5X12

SCREW,5MM

NUT,4MM,FOCUS ADJUST

NUT,10MM

NUT,5MM

WASHER,4.1X8X0.8

WASHER

WASHER,PLAIN,5MM

WASHER

COLLAR,HEAD LAMP

COLLAR,10.2X13.4X8.1

DAMPER,LAMP

SPRING,FOCUS ADJUSTING

WASHER SPRING 5MM
