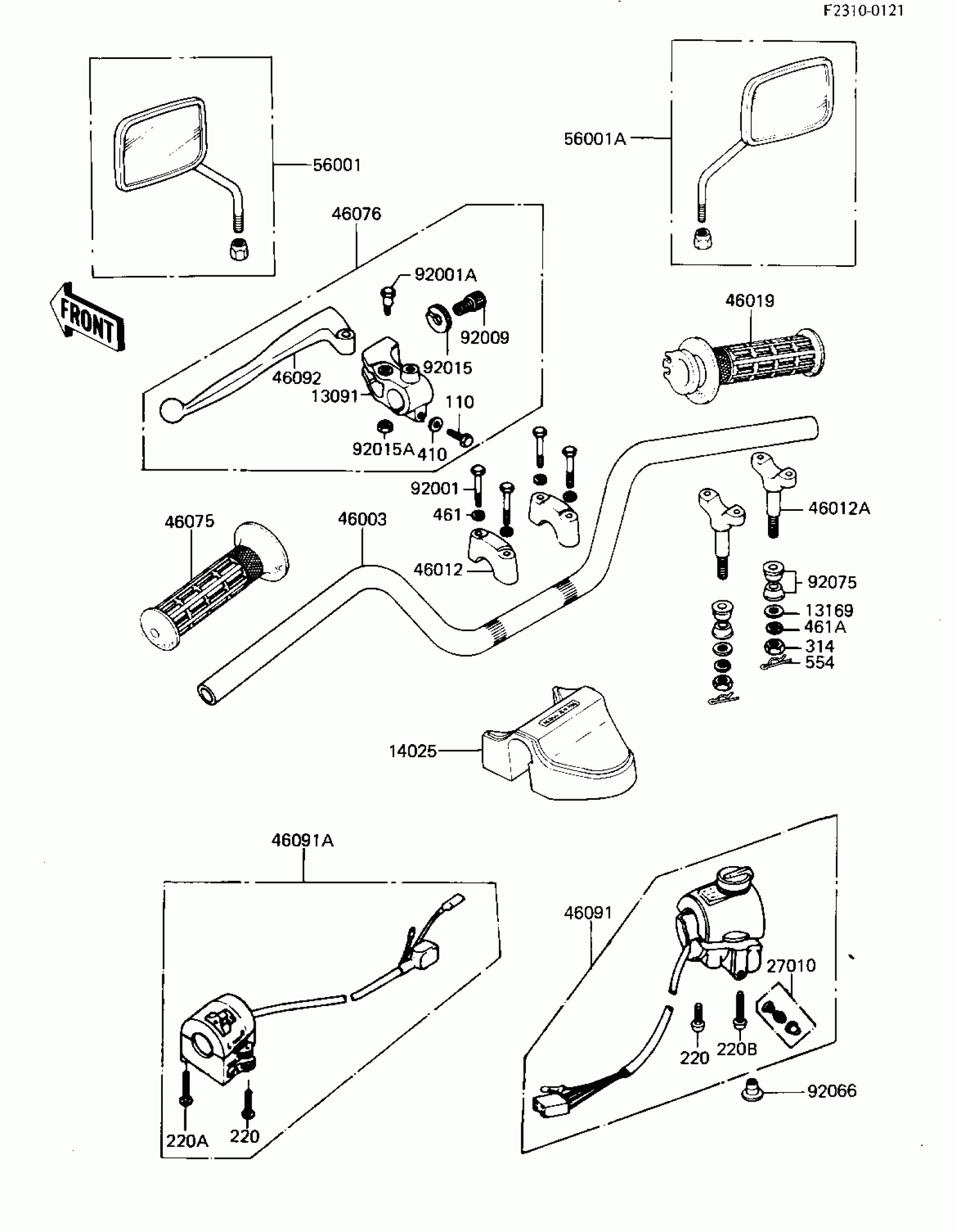

Kawasaki KZ440-G1 HANDLEBAR Diagram
#
Description
Price
13091
HOLDER,CLUTCH LEVER
46094-017
Unavailable
13169
PLATE,HANDLE HOLDER
46016-003
Unavailable
14025
COVER,HANDLE
14025-1421
Unavailable
27010
SWITCH,PUSH BUTTON
27010-1009
$9.20
46003
HANDLEBAR
46003-1104
$105.74
46012
HOLDER-HANDLE,UPP
46012-008
$37.74
46012A
HOLDER-HANDLE,LWR
46012-010
$30.76
46019
GRIP-ASSY,THROTTLE
46019-1017
$39.36
46075
GRIP,LH
46075-1022
$16.96
46076
LEVER ASSY,CLUTCH
46076-052
$102.73
46091
HOUSING ASSY,R.H
46091-1039
Unavailable
46091A
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
46092
LEVER-GRIP,CLUTCH
46092-023
$35.96
56001
MIRROR-ASSY,LH
56001-1101
$63.48
56001A
MIRROR-ASSY,RH
56001-1102
Unavailable
92001
BOLT 8X38
92001-1405
$16.50
92001A
BOLT,HEX HEAD
92007-047
$13.77
92009
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
92015
NUT,CABLE ADUST NUT
46056-007
Unavailable
92015A
NUT,LOCK,6MM
92019-008
$4.26
92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
92075
DAMPER,HANDLE HOLDER
92075-039
$4.69
110
BOLT HEX HEAD 6X25
110N0625
$5.46
220
SCREW PAN HEAD 5X30
220B0530
$3.41
220A
SCREW-PAN-CROS
220B0535
$3.70
220B
SCREW-PAN-CROS
220B0540
$3.41
314
NUT-HEX-FINE,10MM
314B1000
$0.67
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
461
WASHER SPRING 8MM
461F0800
$0.40
461A
WASHER SPRING 10MM
461F1000
$0.67
554
PIN-SNAP,8MM
554A0800
$1.26
