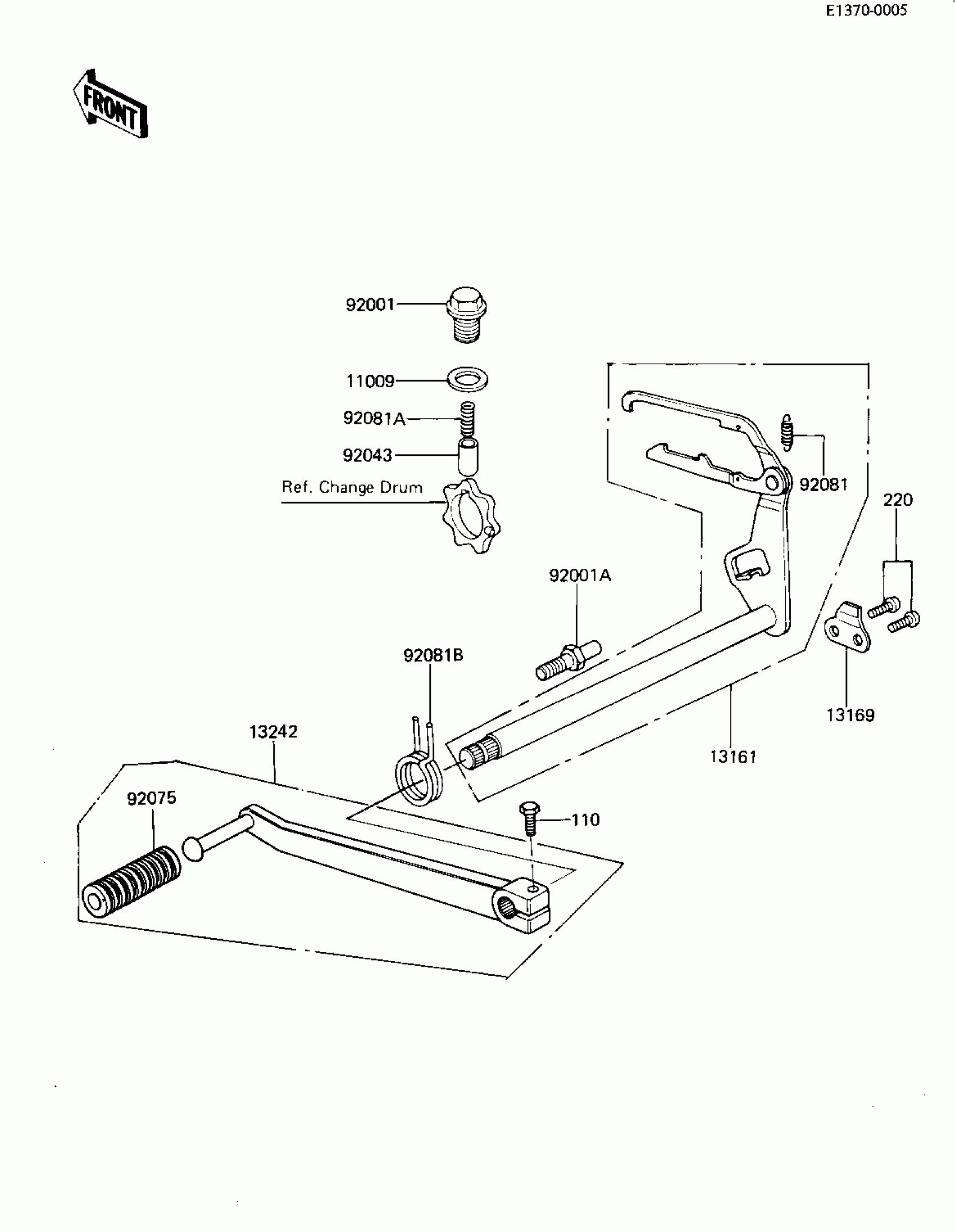

Kawasaki KZ440-G1 GEAR CHANGE MECHANISM Diagram

Description

Price

11009

GASKET,15.5X22X1

11009-1008

$2.75

13161

LEVER COMP,CHNG SHAFT

13161-1001

Unavailable

13169

PLATE,GEAR SHIFT LEV

13169-011

Unavailable

13242

PEDAL ASSY,GEAR SHIFT

13242-017

Unavailable

92001

BOLT,NEUTRAL POSITION

92001-1037

$12.73

92001A

BOLT,RETURN SPRING

92001-1401

$4.17

92043

92043-076

$11.22

92075

DAMPER,CHANGE PEDAL

13157-004

Unavailable

92081

SPRING,CHANGE LEVER

92081-076

$4.14

92081A

SPRING

92081-112

$5.37

92081B

SPRING,CHG PEDL RTRN

92083-028

Unavailable

110

BOLT-UPSET,6X20

112G0620

Unavailable

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

Kawasaki KZ440-G1 GEAR CHANGE MECHANISM Diagram

GASKET,15.5X22X1

LEVER COMP,CHNG SHAFT

PLATE,GEAR SHIFT LEV

PEDAL ASSY,GEAR SHIFT

BOLT,NEUTRAL POSITION

BOLT,RETURN SPRING

PIN

DAMPER,CHANGE PEDAL

SPRING,CHANGE LEVER

SPRING

SPRING,CHG PEDL RTRN

BOLT-UPSET,6X20

SCREW-PAN-CROS,6X16
