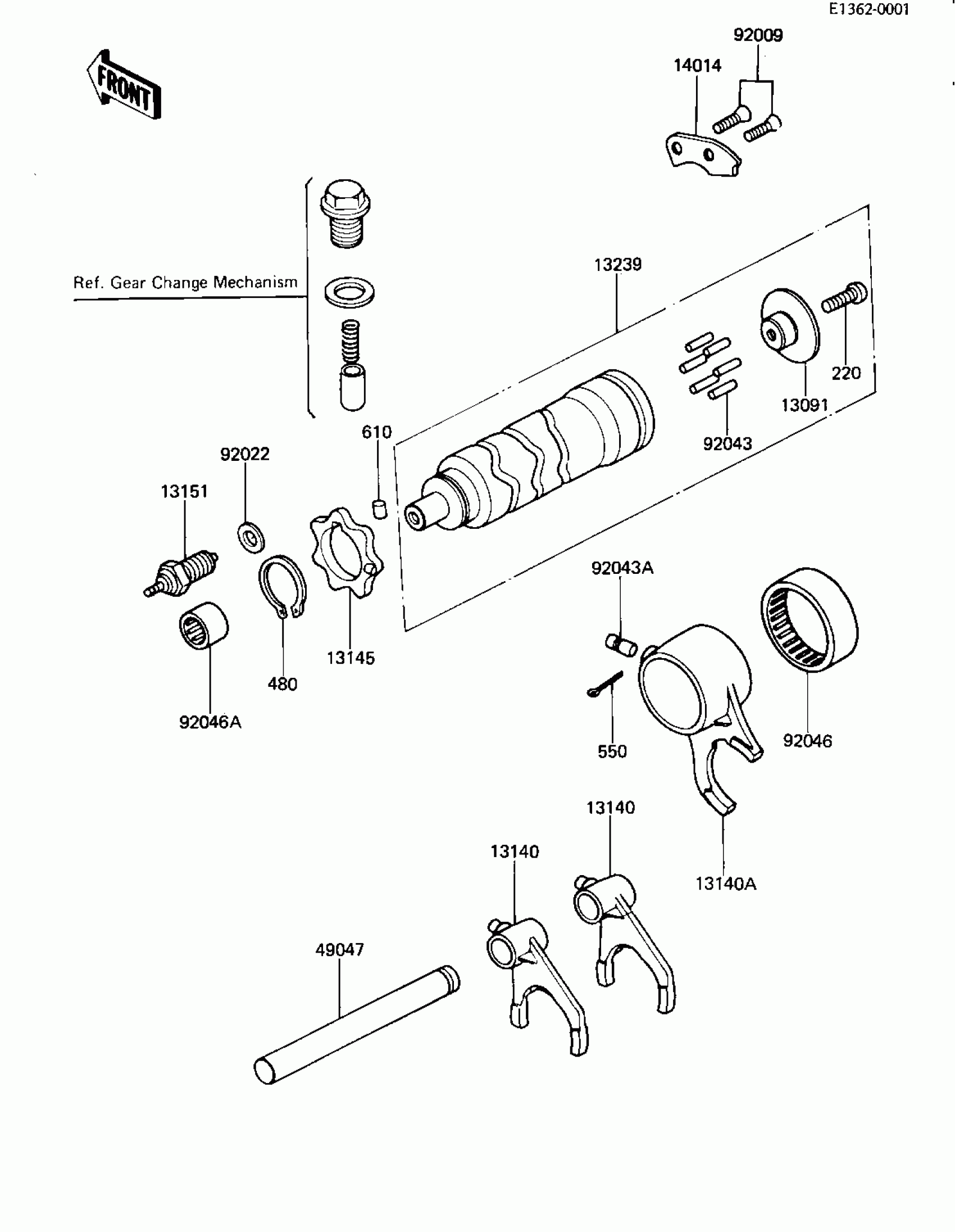

Kawasaki KZ440-G1 GEAR CHANGE DRUM & FORKS Diagram

Description

Price

13091

PLATE,SHIFT DRUM PIN

13142-016

Unavailable

13140

FORK-SHIFT,1,4&2,3

13140-1067

Unavailable

13140A

FORK-SHIFT,5TH&TOP

13140-1053

Unavailable

13145

CAM-CHANGE DRUM

13145-1058

$22.72

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM ASSY,CHANGE

13239-1011

Unavailable

14014

PLATE,SIFT DRM POSITN

14014-1001

Unavailable

49047

ROD,SHIFT

13209-022

Unavailable

92009

SCREW,CSK,6X16

92009-1007

Unavailable

92022

GASKET,10.5X16X1

92065-058

$3.96

92043

PIN,DOWEL,4X15.8

92042-014

$0.43

92043A

PIN,DOWEL,8X18

92042-021

$11.51

92046

BEARING-NEEDLE,37BTM4312

92046-051

$25.09

92046A

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

480

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

550

PIN-COTTER,3.0X20

550D3020

$1.78

610

ROLLER,4X6

610A0406

$4.31
