Description

Price

32029

BRACKET,ENGINE,HEAD

32029-1097

$17.40

32029A

BRACKET,ENGINE,FRONT

32029-1098

$12.27

32029B

BRACKET,ENG,REAR,R.H.

32029-1099

$16.34

32029C

BRACKET-ENGINE,RR,LH

32029-1165

$11.77

32029D

BRACKET-ENGINE,FR

32029-1172

$15.87

92001

BOLT,HEX HEAD,10X50

92001-1254

$4.38

92001A

BOLT,FLANGED,8X35

92001-1577

Unavailable

92001B

BOLT-FLANGE

92001-1582

Unavailable

92001C

BOLT-FLANGE

92001-1582

Unavailable

92001D

BOLT,FLANGED,10X220

92002-1197

$24.03

92001E

BOLT,FLANGED,10X325

92001-1654

Unavailable

92015

NUT,10MM

92015-1429

$6.88

92025

SHIM-ENG FIT FR,0.5MM

92025-053

Unavailable

92027

COLLAR,ENG MOUNTING

92027-160

Unavailable

92027A

COLLAR,ENG MOUNT UPPE

92027-228

Unavailable

92027B

COLLAR

92027-250

$13.88

317

NUT-HEX-SMALL,8MM

317B0800

$0.67

411

WASHER PLAIN 8MM

411B0800

$0.93

461

WASHER SPRING 8MM

461F0800

$0.40

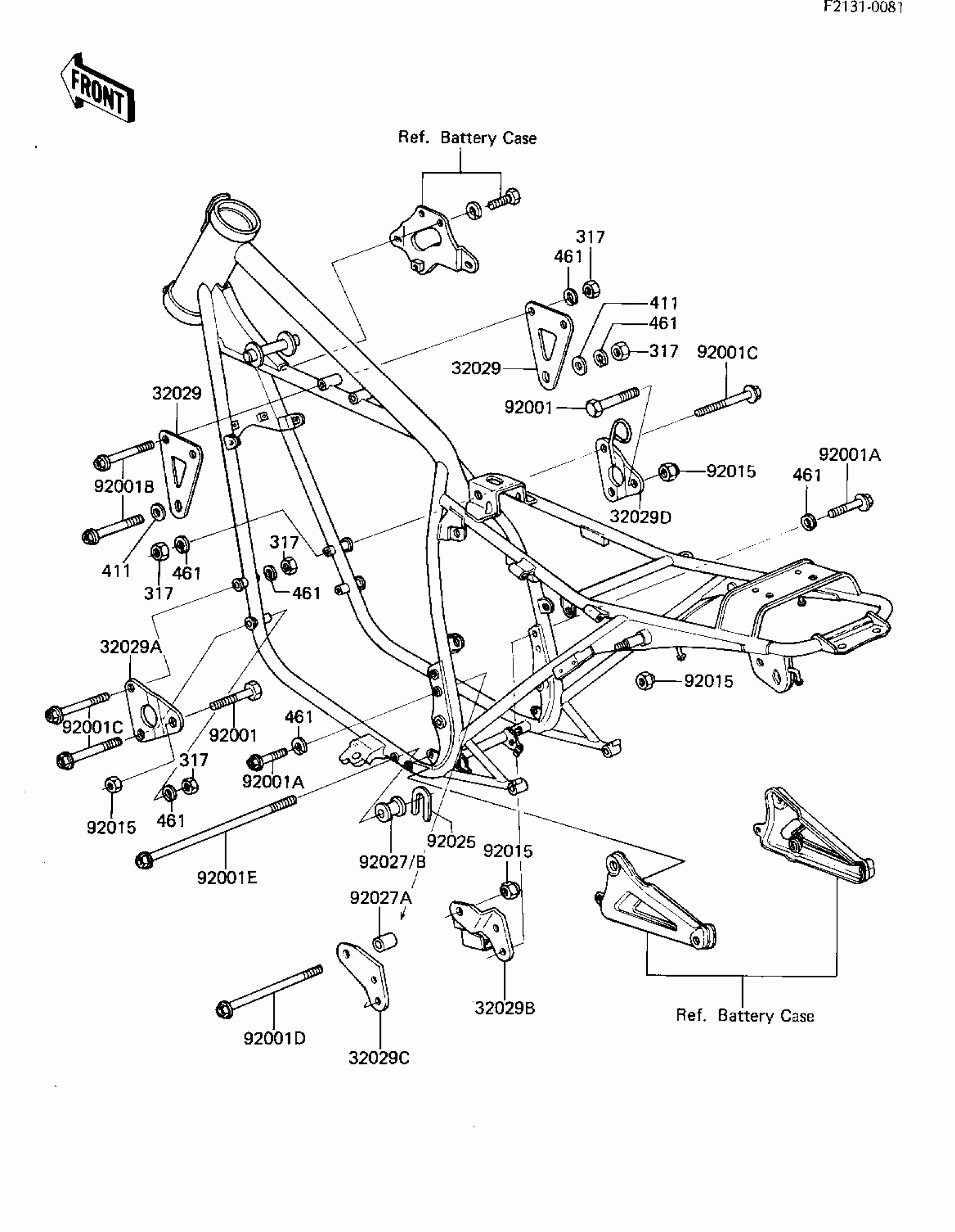

Kawasaki KZ440-G1 FRAME FITTINGS Diagram

BRACKET,ENGINE,HEAD

BRACKET,ENGINE,FRONT

BRACKET,ENG,REAR,R.H.

BRACKET-ENGINE,RR,LH

BRACKET-ENGINE,FR

BOLT,HEX HEAD,10X50

BOLT,FLANGED,8X35

BOLT-FLANGE

BOLT-FLANGE

BOLT,FLANGED,10X220

BOLT,FLANGED,10X325

NUT,10MM

SHIM-ENG FIT FR,0.5MM

COLLAR,ENG MOUNTING

COLLAR,ENG MOUNT UPPE

COLLAR

NUT-HEX-SMALL,8MM

WASHER PLAIN 8MM

WASHER SPRING 8MM
