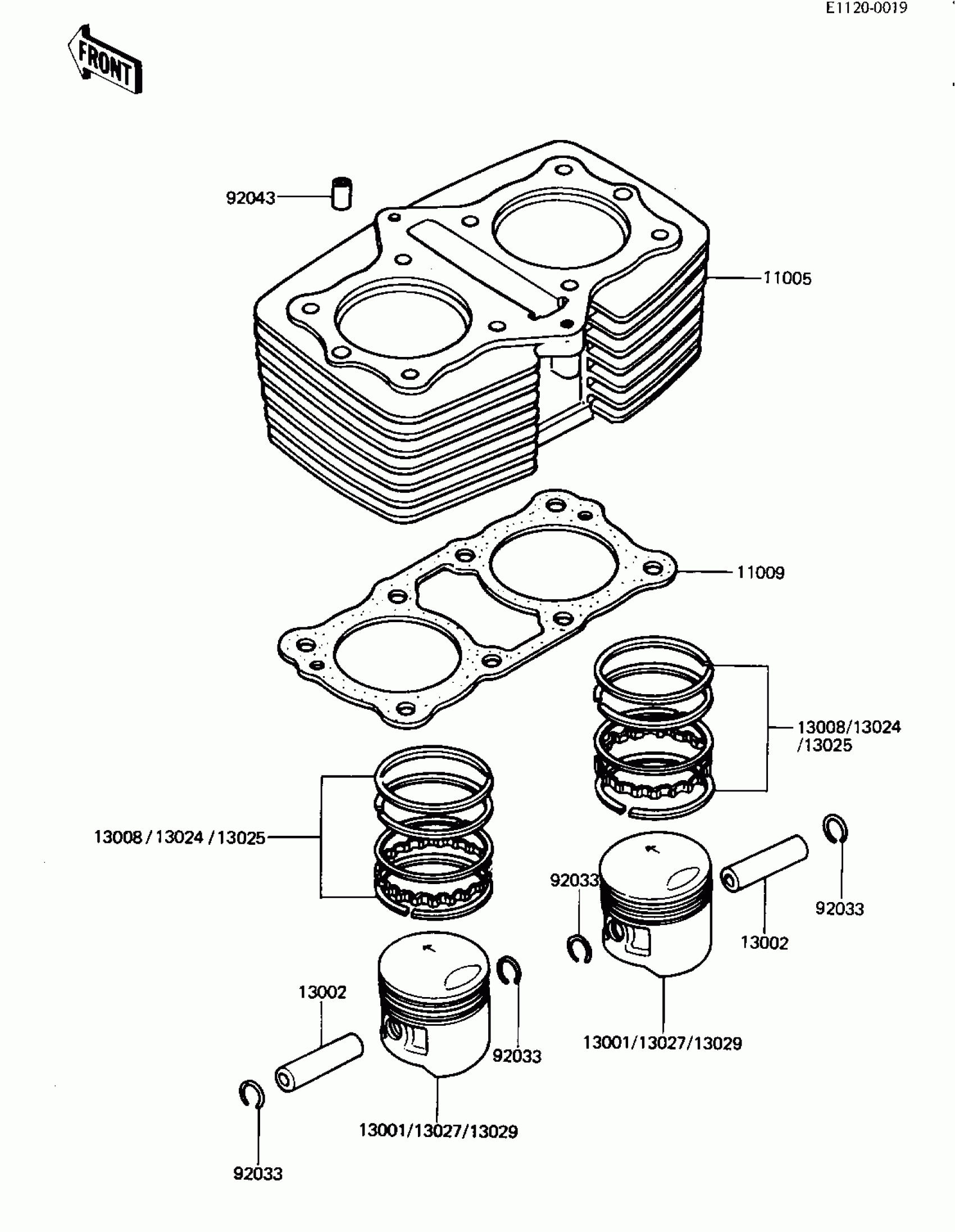

Kawasaki KZ440-G1 CYLINDER/PISTONS Diagram

#

Description

Price

11005

CYLINDER-ENGINE,SILVE

11005-1166

Unavailable

11009

GASKET,CYLINDER BASE

11009-1176

Unavailable

13001

PISTON,STD

13001-1032

Unavailable

13002

PIN-PISTON

13002-1011

Unavailable

13008

RING SET,PISTON,STD

13008-5029

$112.62

13024

RING SET,0.040",O/S

13024-5015

Unavailable

13025

RING SET,0.020",O/S

13025-5015

Unavailable

13027

PISTON,0.040",O/S

13027-1015

Unavailable

13029

PISTON,0.020",O/S

13029-1014

Unavailable

92033

RING-SNAP

92036-005

$4.07

92043

PIN,DOWEL,10X14

92043-1037

$0.74
