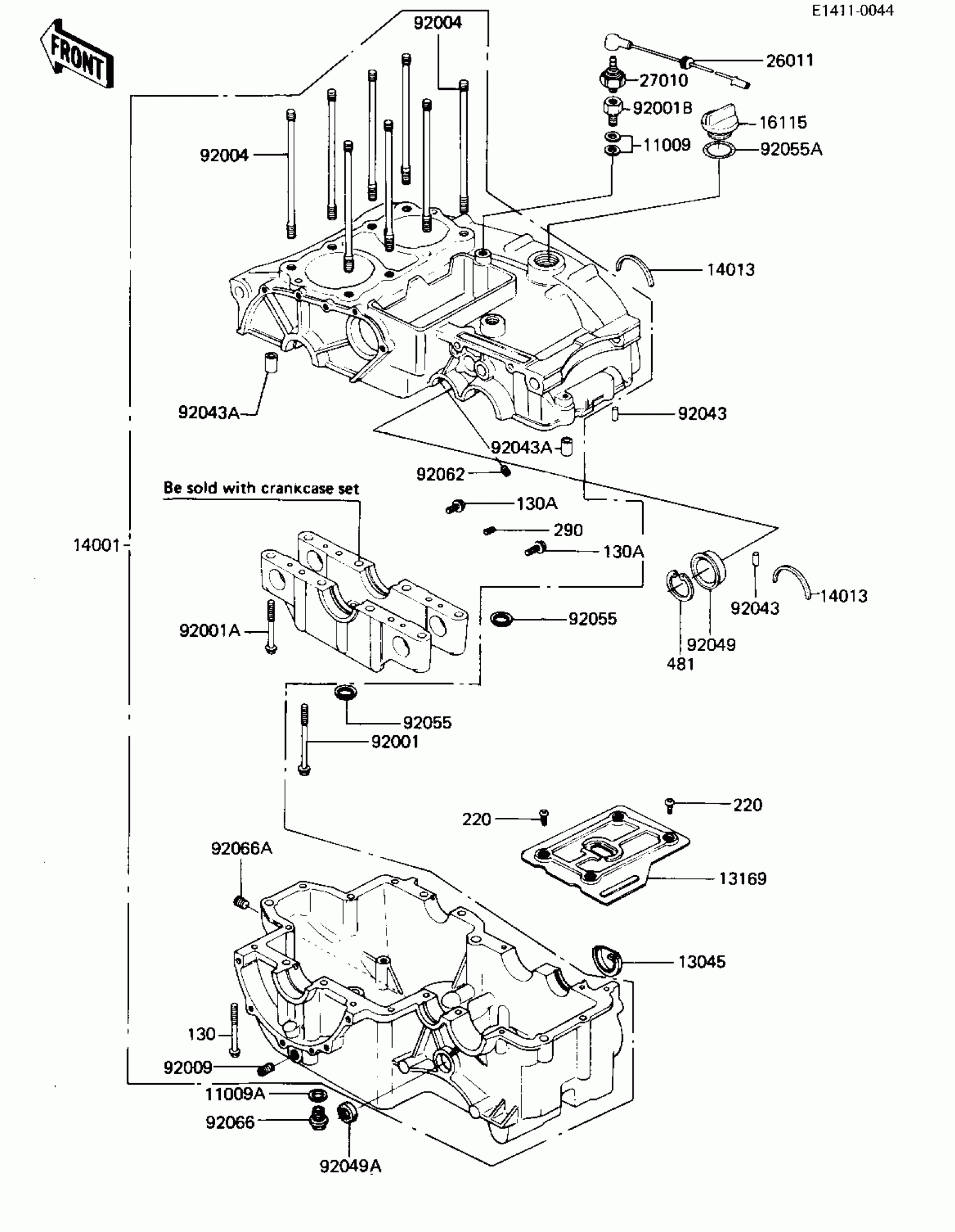

Kawasaki KZ440-G1 CRANKCASE Diagram

#

Description
Price

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11009A

GASKET,12X22X2

92065-097

$0.74

13045

RECEIVER,OIL

13045-1001

Unavailable

13169

PLATE,CRANKCASE

13169-1103

Unavailable

14001

SET-CRANKCASE

14001-5087

Unavailable

14013

RING-POSITION

14013-004

$10.19

16115

CAP-OIL FILLER

16115-1009

$14.30

26011

WIRE,LEAD,OIL SWITCH

26011-1078

Unavailable

27010

SWITCH,OIL PRESSURE

27010-1157

Unavailable

92001

BOLT,FLANGED,10X91

92001-1004

$9.74

92001A

BOLT,FLANGED,8X58

92001-1005

$7.33

92001B

BOLT,OIL SWITCH

92001-1020

$12.00

92004

STUD,10X153

92004-062

$18.74

92009

SET SCREW,PT 1/4

92013-010

$8.25

92043

PIN,DOWEL,6X16

92042-016

$5.00

92043A

PIN,DOWEL,10X14

92043-1037

$0.74

92049

SEAL-OIL,PLUG

92049-1074

Unavailable

92049A

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,OD=18

92055-048

$4.80

92055A

RING-O,31.5X2.6

92055-049

$4.31

92062

NOZZLE,BLACK

92062-011

$8.58

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066A

PLUG,OIL LINE,1/8X7

92066-059

Unavailable

130

BOLT-FLANGED,6X55

130G0655

$4.65

130A

BOLT,FLANGED,6X8

130P0608

$2.12

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

290

SCREW-SET-SOCKET,6X6

290Q0606

$6.34

481

CIRCLIP,36M/M

481J3600

$5.45
