Description

Price

11036

BRACKET-A,CLUTCH RELE

11036-1125

Unavailable

13081

CLUTCH-ASSY

13081-1067

Unavailable

13087

HUB,CLUTCH

13087-040

Unavailable

13088

PLATE,FRICTION

13088-1001

Unavailable

13089

PLATE-CLUTCH,T=2.0

13089-026

$12.80

13095

HOUSING,CLUTCH

13095-1008

Unavailable

13097

SPROCKET,PRIMARY

13121-030

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1009

Unavailable

13187

PLATE-CLUTCH OPERATIN

13187-1007

Unavailable

46102

ROD,CLUTCH

46102-1031

$19.75

59051

GEAR,OIL PUMP,34T

59051-1001

$49.87

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92022

WASHER,25.3X32X0.5

92022-225

$5.52

92022A

WASHER,CLUTCH THRUST

92022-288

$12.83

92022B

WASHER,CLUTCH TRUST

92022-302

Unavailable

92045

BEARING-BALL,16005

92045-1045

$28.25

92057

CHAIN,PRIMARY DRIVE

13122-005

Unavailable

92081

SPRING,CLUTCH

92081-1033

$7.38

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

480

CIRCLIP-TYPE-C,24MM

480J2400

$6.32

480A

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

480B

CIRCLIP, 38MM

480J3800

$5.44

610

PIN, DOWELL, 6X6

610A0606

$2.60

670

O RING,9MM

670B1509

$3.65

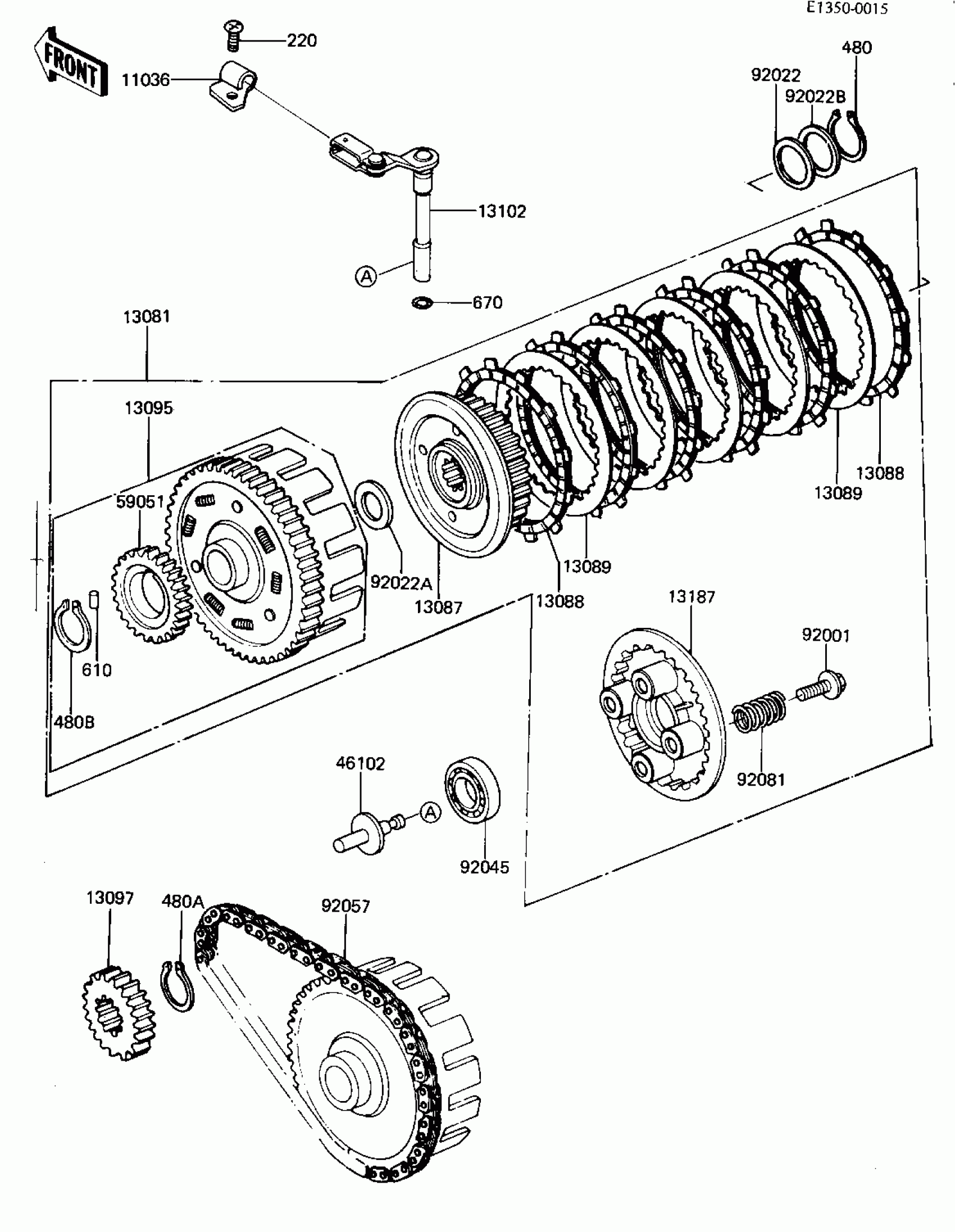

Kawasaki KZ440-G1 CLUTCH Diagram

BRACKET-A,CLUTCH RELE

CLUTCH-ASSY

HUB,CLUTCH

PLATE,FRICTION

PLATE-CLUTCH,T=2.0

HOUSING,CLUTCH

SPROCKET,PRIMARY

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATIN

ROD,CLUTCH

GEAR,OIL PUMP,34T

BOLT,FLANGED,6X18

WASHER,25.3X32X0.5

WASHER,CLUTCH THRUST

WASHER,CLUTCH TRUST

BEARING-BALL,16005

CHAIN,PRIMARY DRIVE

SPRING,CLUTCH

SCREW-PAN-CROS,6X16

CIRCLIP-TYPE-C,24MM

CIRCLIP-TYPE-C,30MM

CIRCLIP, 38MM

PIN, DOWELL, 6X6

O RING,9MM
