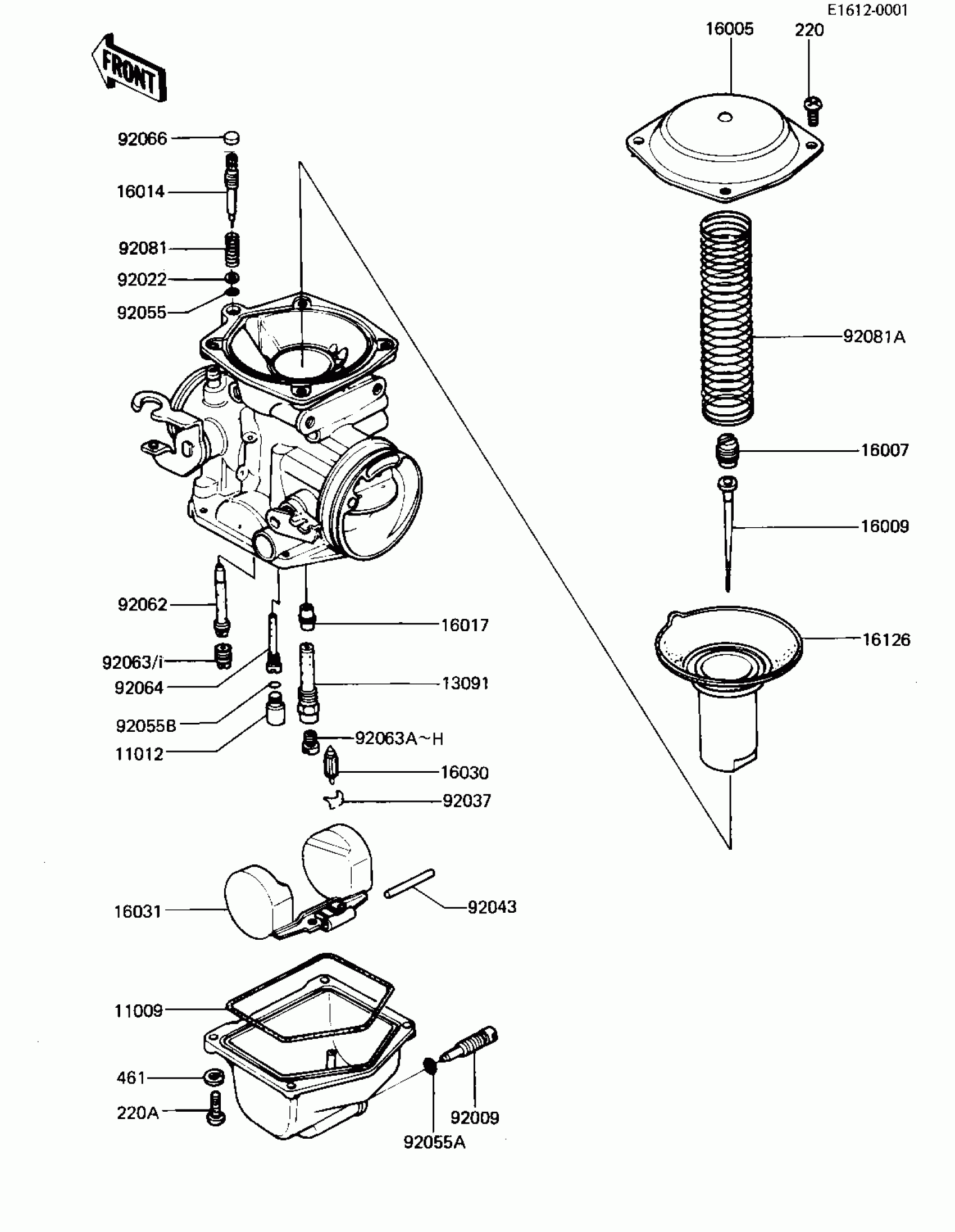

Kawasaki KZ440-G1 CARBURETOR PARTS Diagram
#
11009
O RING,FLOAT CHAMBER
16019-024
Unavailable
11012
CAP,POLYESTER
11012-1128
Unavailable
13091
HOLDER,NEEDLE JET,N413-02E00
13091-1050
Unavailable
16005
TOP,MIXING CHAMBER
16005-1012
Unavailable
16007
SCREW,NEEDLE SET
16007-1022
Unavailable
16009
JET NEEDLE,#N02A
16009-1064
Unavailable
16014
SCREW,PILOT ADJUST
16014-1011
Unavailable
16017
JET-NEEDLE
16017-1059
$49.12
16030
VALVE-FLOAT
16030-1007
$47.99
16031
FLOAT
16031-1001
Unavailable
16126
VALVE,VACUUM
16126-1044
$430.64
92009
SCREW,DRAIN,M6X1.0
92009-1095
$14.92
92022
WASHER,PLAIN
92022-1003
$4.31
92037
CLAMP,FLOAT VALVE
16044-007
$7.91
92043
PIN,FLOAT
92043-1002
Unavailable
92055
RING-O,PILOT ADJUST
92055-1002
$4.31
92055A
RING-O
92055-1053
$4.69
92055B
"O" RING
92055-1088
$21.40
92062
NOZZLE,MAIN
92062-1001
Unavailable
92063
MAINJET,PRIMARY,#70
92063-1002
$19.88
92063A
JET-MAIN,#90
92063-1003
$14.79
92063B
JET-MAIN,#92
92063-1004
$15.04
92063C
JET-MAIN,#85
92063-1023
$15.76
92063D
JET-MAIN,#85
92063-1023
$15.76
92063E
JET-MAIN,#88
92063-1024
$15.76
92063F
JET-MAIN,#88
92063-1024
$15.76
92063G
MAIN JET,2ND,#80
92063-1037
Unavailable
92063H
JET-MAIN,2ND,#82
92063-1044
$15.76
92063I
JET-MAIN,PRI,#65
92063-1096
$14.11
92064
JET-PILOT,#35
92064-1001
$23.08
92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92081
SPRING,PILOT ADJUST SCREW
92081-1002
$5.46
92081A
SPRING
92081-1257
$26.15
220
SCREW PAN HEAD 4X8
220B0408
$0.67
220A
SCREW-PAN-CRSOSS,4X1
220B0412
$0.21
461
WASHER SPRING 4MM
461F0400
Unavailable
