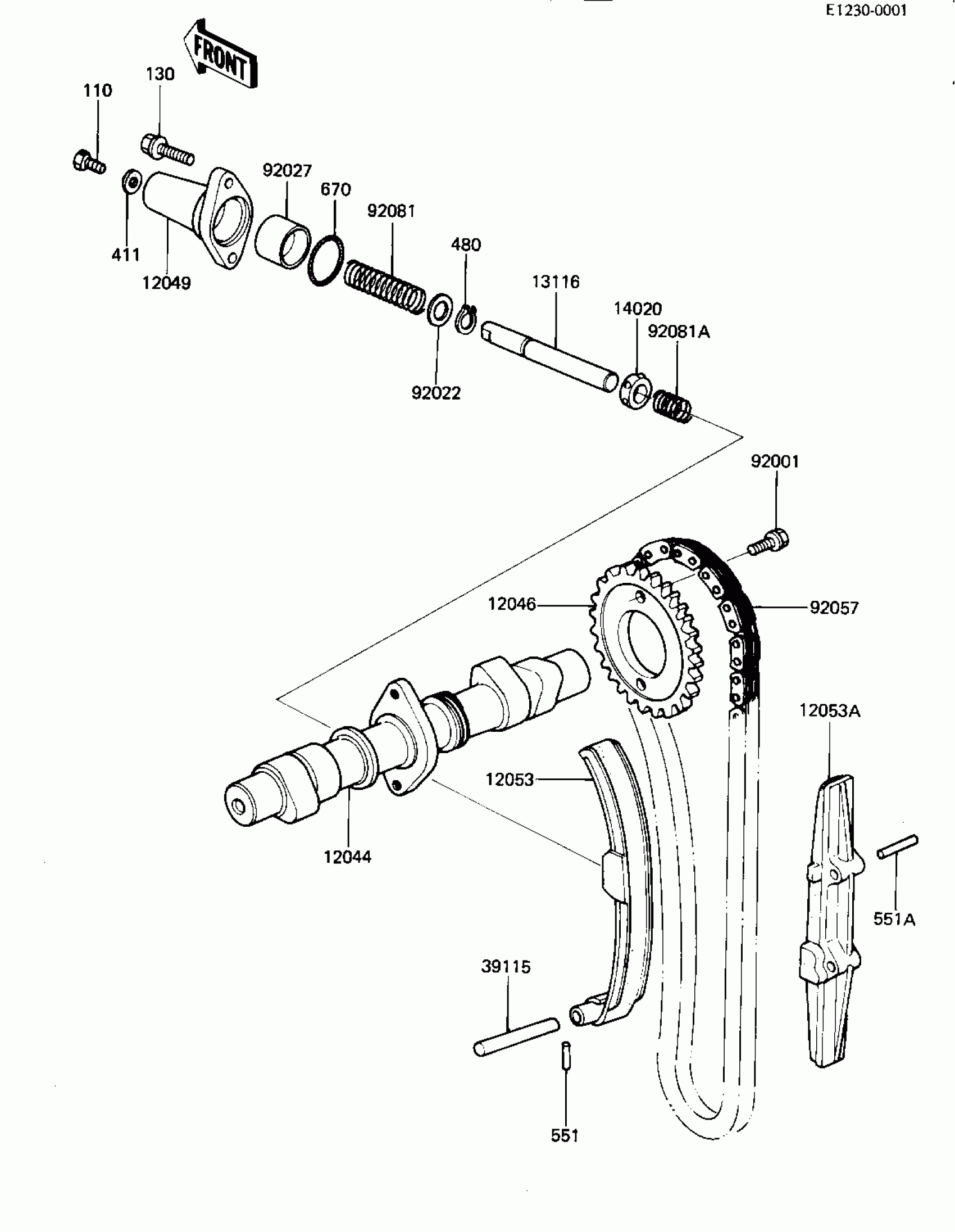

Kawasaki KZ440-G1 CAMSHAFT/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT,VALVE

12044-5001

Unavailable

12046

SPROCKET,CAM,46T

12046-1022

Unavailable

12049

TENSIONER,CAM CHAIN

12049-1010

Unavailable

12053

GUIDE,CHAIN,FRONT

12053-1041

Unavailable

12053A

GUIDE,CHAIN,REAR

12053-1042

Unavailable

13116

ROD-PUSH,TENSIONER

13116-1022

Unavailable

14020

RETAINER,TENSIONER

14020-1002

$17.55

39115

SHAFT,CHAIN GUIDE

39115-1001

$4.36

92001

BOLT,FLANGED,6X11

92003-208

$4.31

92022

WASHER,10.2X14.5X1.0

92022-1181

$3.92

92027

COLLAR,TENSIONER

92027-1240

$15.92

92057

CHAIN,CAMSHAFT,114L

92057-1038

Unavailable

92081

SPRING,TENSIONER

92081-1206

Unavailable

92081A

SPRING,TENSIONER

92081-1207

$5.17

110

BOLT-UPSET 6X14

112B0614

Unavailable

130

BOLT-FLANGED,6X20

130G0620

$1.69

411

WASHER PLAIN 6MM

411B0600

$2.84

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

551

PIN,DOWEL,3X25

551A0325

Unavailable

551A

PIN,DOWEL,5X32

551A0532

$3.14

670

O RING,21MM

670B2021

$4.69
