Description

Price

11034

BRACKET,IGNITION COIL

11034-1938

Unavailable

11036

BRACKET-A,REGULATOR

11036-1105

Unavailable

14025

COVER,MUFFLER STAY,LH

14025-1479

Unavailable

14025A

COVER,MUFFLER STAY,RH

14025-1480

Unavailable

32097

CASE-BATTERY

32097-1041

$58.06

35011

STAY,RR

35011-1116

$129.98

92037

CLAMP,BREATHER TUBE

92037-1246

$5.45

92059

CONNECTOR PIPE

92059-101

$9.12

92072

BAND,BATTERY

92072-1034

$7.68

92075

DAMPER,RUBBER

92075-261

$4.31

110

BOLT-UPSET,6X12

112G0612

$1.45

110A

BOLT-UPSET 6X14

112B0614

Unavailable

110B

BOLT-UPSET,6X16

112G0616

$1.10

114

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW-PAN-CROS,6X14

220B0614

$1.48

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

410A

WASHER PLAIN 8MM

410B0800

$0.93

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69

461A

WASHER SPRING 8MM

461F0800

$0.40

701

TUBE-PVC,6X360

701Q06360

$4.06

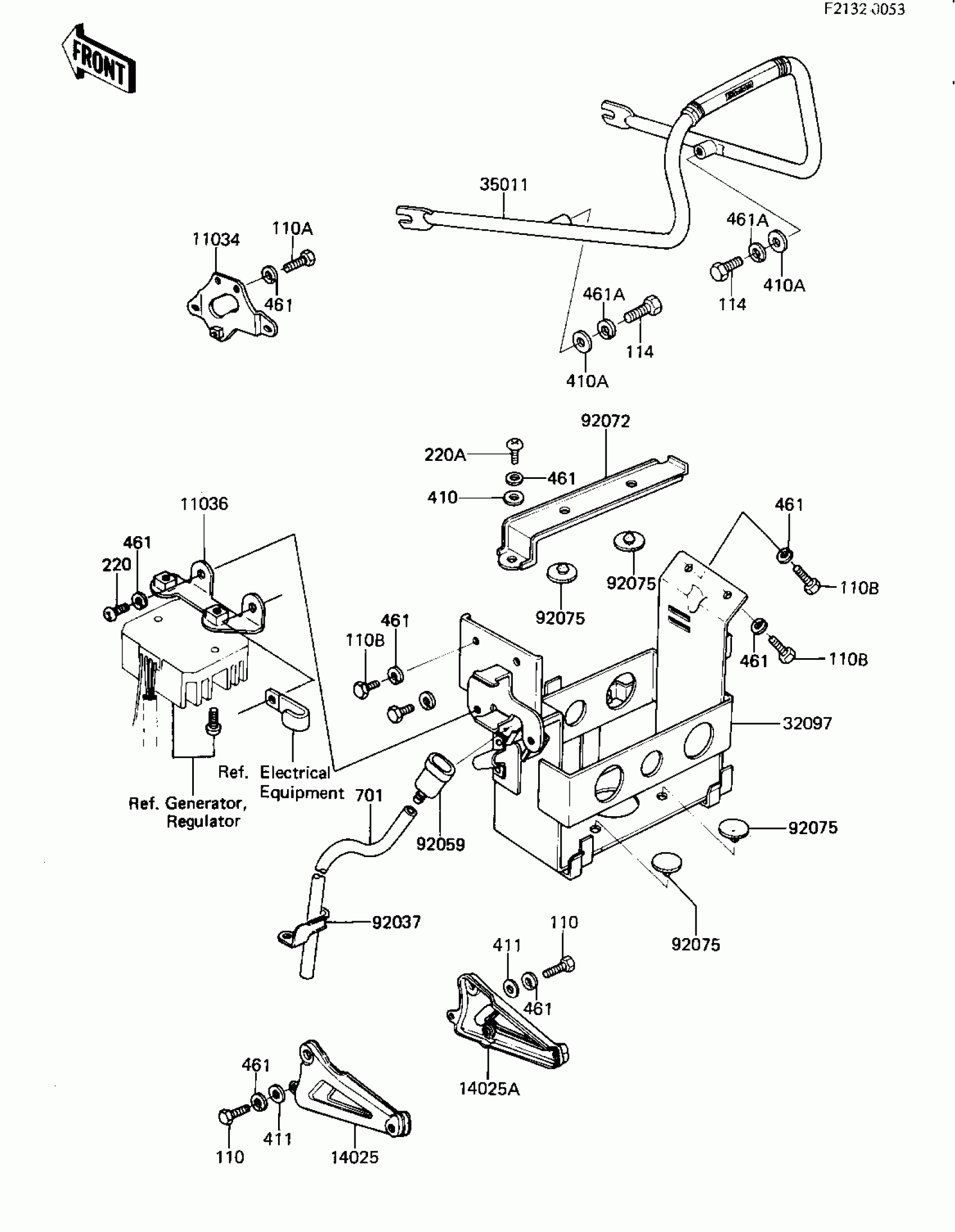

Kawasaki KZ440-G1 BATTERY CASE Diagram

BRACKET,IGNITION COIL

BRACKET-A,REGULATOR

COVER,MUFFLER STAY,LH

COVER,MUFFLER STAY,RH

CASE-BATTERY

STAY,RR

CLAMP,BREATHER TUBE

CONNECTOR PIPE

BAND,BATTERY

DAMPER,RUBBER

BOLT-UPSET,6X12

BOLT-UPSET 6X14

BOLT-UPSET,6X16

BOLT-SMALL-UPSET,8X16

SCREW PAN HEAD 6X12

SCREW-PAN-CROS,6X14

WASHER-PLAIN-SMALL,6MM

WASHER PLAIN 8MM

WASHER PLAIN 6MM

WASHER SPRING 6MM

WASHER SPRING 8MM

TUBE-PVC,6X360
