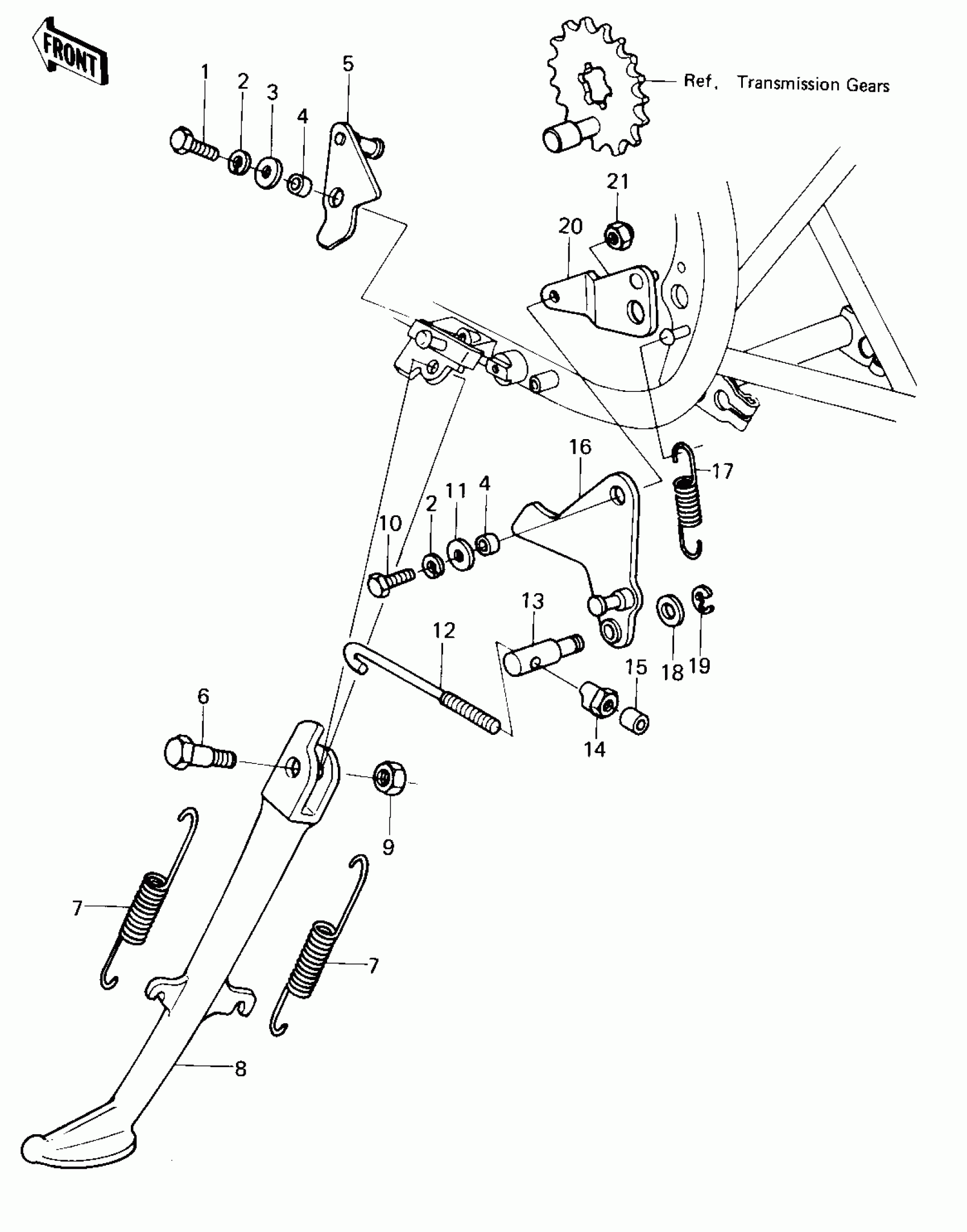

Kawasaki KZ440-B1 STAND ('80 B1) Diagram

#

Description
Price

1

BOLT-UPSET,6X16

112G0616

$1.10

2

WASHER SPRING 6MM

461F0600

$0.69

3

WASHER PLAIN 6MM

411B0600

$2.84

4

COLLAR,6.3X10X4.8

92027-1066

$4.26

5

LATCH,SIDE STAND

49031-1001

Unavailable

6

BOLT,SIDE STAND

92003-157

$9.91

7

SPRING,SIDE STAND

92081-1020

Unavailable

8

STAND-SIDE

34024-1008

$59.63

9

NUT,LOCK,10MM

92019-021

$6.11

10

BOLT-UPSET,6X20

112G0620

$2.12

11

WASHER,6.5X20X1.6

92022-125

$1.40

12

ROD,TIE,SIDE STAND

39111-1002

Unavailable

13

PIN,SIDE STAND

92043-1018

Unavailable

14

NUT,6M/M

92015-1028

Unavailable

15

TUBE,4.5X9X7

92059-1012

$38.33

16

LEVER,SIDE STAND

13168-1005

Unavailable

17

SPRING

92081-1023

$6.46

18

WASHER PLAIN 8MM

410B0800

$0.93

19

CIRCLIP-TYPE-E,6MM

482K6000

$2.95

20

BRACKET,SIDE STAND

11034-1151

Unavailable

21

NUT,LOCK,6MM

92019-008

$4.26
