Description

Price

1

SEAT-ASSY,DUAL

53001-1139

$357.05

2

DAMPER RUBBER-SEAT

92075-156

Unavailable

3

DAMPER

92075-099

$5.52

4

HINGE,SEAT

53009-1007

$6.40

5

HINGE, REAR

53009-026

$16.61

6

HOOK,SEAT

53008-024

Unavailable

7

WASHER PLAIN 6MM

411B0600

$2.84

8

WASHER SPRING 6MM

461F0600

$0.69

9

BOLT-UPSET 6X14

112B0614

Unavailable

10

GROMMET

92071-056

$4.26

11

CASE,MANUAL

32099-011

$16.66

12

PIN,SEAT PIVOT

92043-1064

Unavailable

13

PIN,SNAP

554A0600

$0.93

14

PIN, DUAL SEAT PIVOT

53011-006

$5.24

15

SCREW-PAN-CROS,6X14

220B0614

$1.48

16

WASHER SPRING 6MM

461F0600

$0.69

17

LOCK-ASSY,SEAT&HELMET

27016-5028

Unavailable

18

SCREW,TAPPING,5X8

92009-1043

$4.77

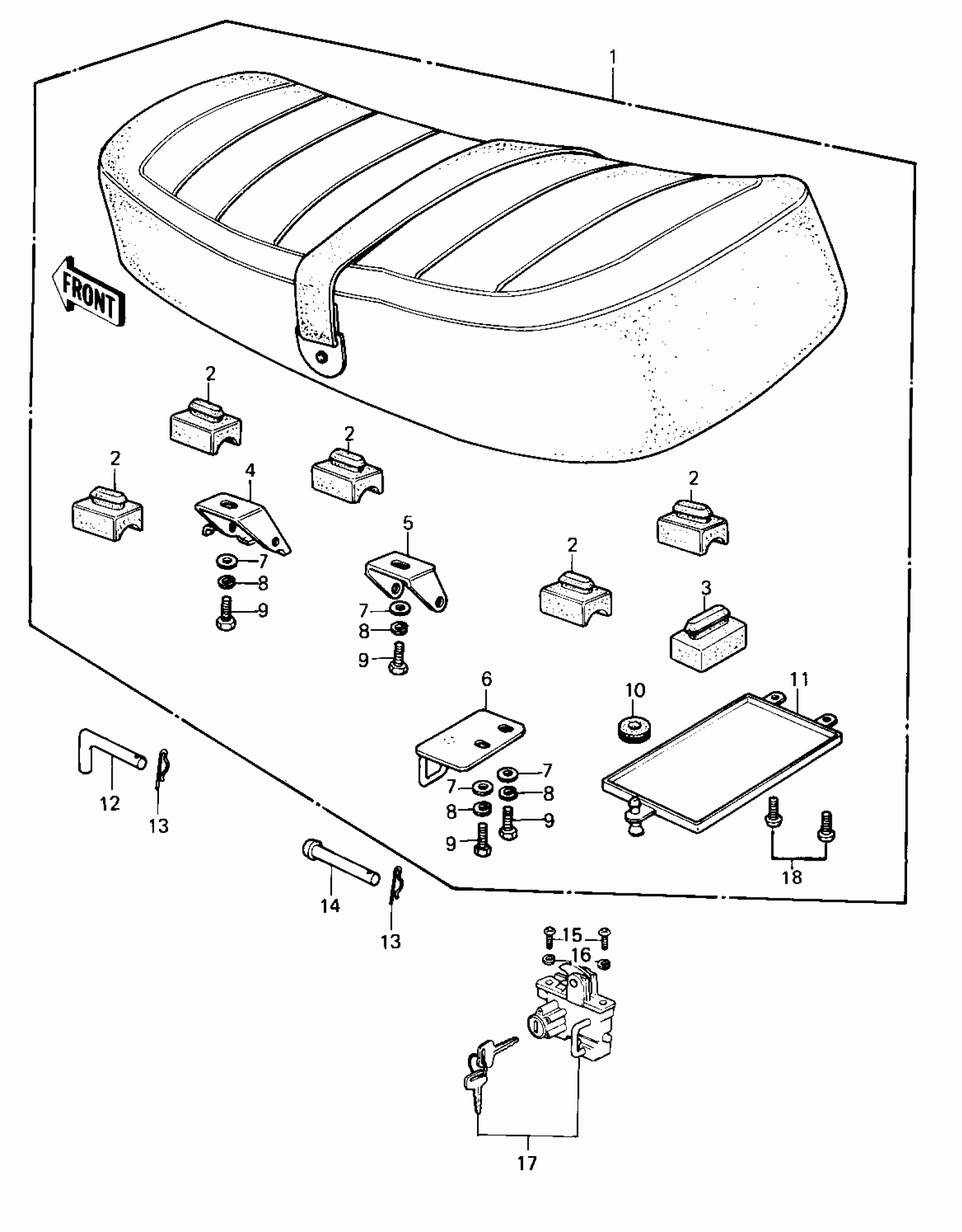

Kawasaki KZ440-B1 SEAT ('80 B1) Diagram

SEAT-ASSY,DUAL

DAMPER RUBBER-SEAT

DAMPER

HINGE,SEAT

HINGE, REAR

HOOK,SEAT

WASHER PLAIN 6MM

WASHER SPRING 6MM

BOLT-UPSET 6X14

GROMMET

CASE,MANUAL

PIN,SEAT PIVOT

PIN,SNAP

PIN, DUAL SEAT PIVOT

SCREW-PAN-CROS,6X14

WASHER SPRING 6MM

LOCK-ASSY,SEAT&HELMET

SCREW,TAPPING,5X8
