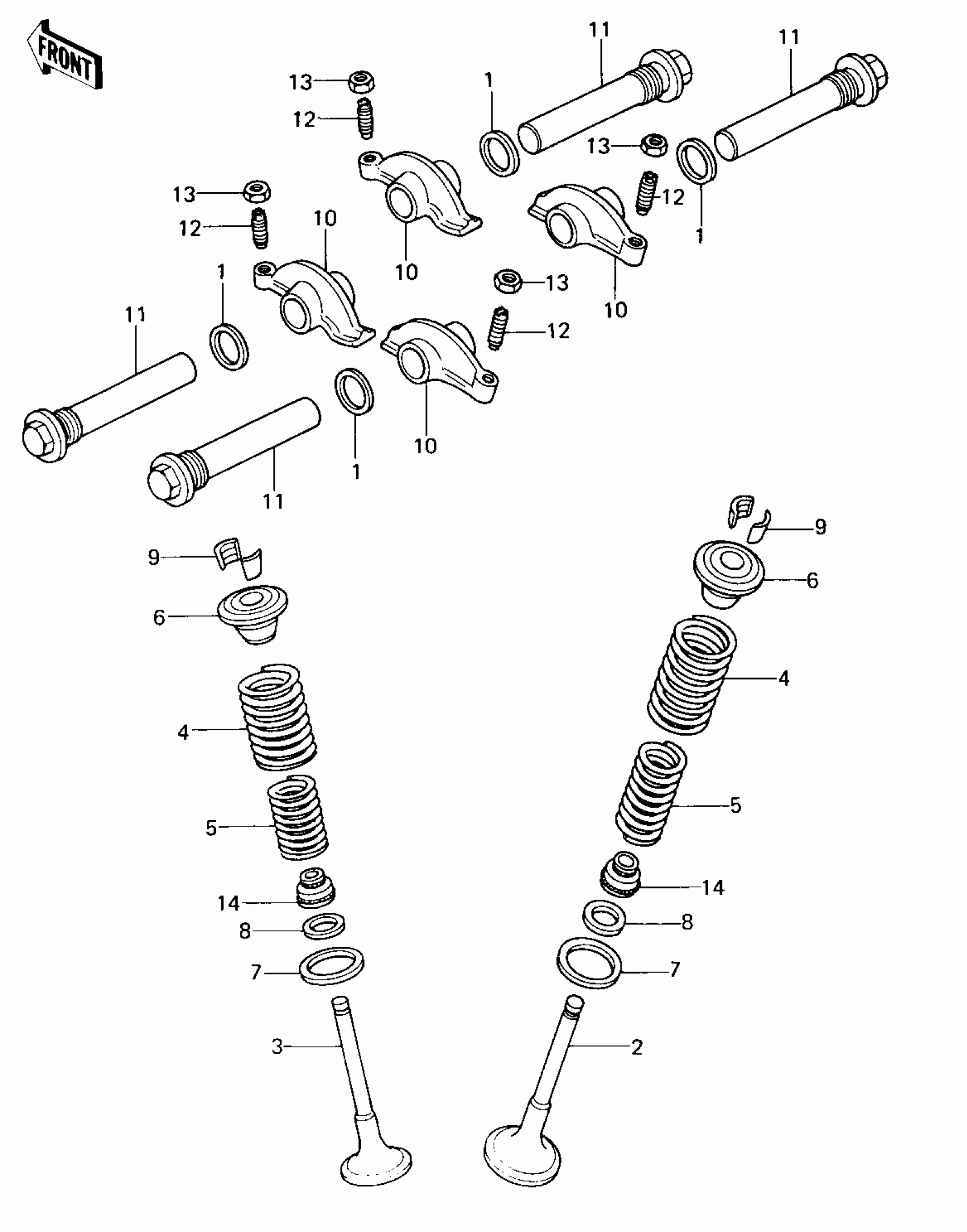

Kawasaki KZ440-B1 ROCKER ARMS/VALVES ('80 B1) Diagram

#

Description
Price

1

GASKET,16X19.7X1.5

11009-1106

$5.81

2

VALVE,INTAKE

12004-1008

Unavailable

3

VALVE,EXHAUST

12005-1007

Unavailable

4

SPRING,OUTER VALVE

12007-013

$15.61

5

SPRING,INNER VALVE

12007-014

$15.61

6

RETAINER,VALVE SPRING

12009-006

$11.03

7

SEAT,VLV OUTER SPRING

12010-005

$7.95

8

SEAT,VLV INNER SPRING

12010-006

Unavailable

9

COLLET,RETAINER

12011-004

$4.14

10

ARM,ROCKER

12016-1001

Unavailable

11

SHAFT,ROCKER

12020-1001

Unavailable

12

SCREW,6MM

92009-1032

Unavailable

13

NUT,6MM

92016-061

$3.57

14

SEAL-OIL,RV37129.5

92049-016

$13.84
