Description

Price

1

PIN-COTTER,4.0X35

550D4035

$2.17

2

NUT,16MM

92015-055

$11.50

3

REAR SPROCKET,45T

42041-145

$171.45

4

DR CHAIN 530X100

92057-092

$162.09

5

CHAIN JOINT 530

92058-008

Unavailable

6

COUPLING ASSY,REAR

42033-1002

$191.57

7

COLLAR,COUPLING,L.H.

92027-1014

$26.20

8

SEAL-OIL,TWC35527

92052-006

Unavailable

9

RING-SNAP,52MM

92033-1043

$8.05

10

BEARING-BALL,#6205C3

601B6205

$19.57

11

SLEEVE,RR HUB COUPLING

42036-1002

Unavailable

12

BOLT,HUB SPROCKET,10X55

92003-156

Unavailable

13

NUT-HEX-FINE,10MM

314B1000

$0.67

14

WASHER,SPROCKET LOCK

92088-005

$6.24

15

DRUM-ASSY,RR BRK

41034-1005

$287.90

16

BEARING-BALL,#6303C3

601B6303

$8.29

17

O RING,60MM

671B2560

$6.91

18

DAMPER,SHOCK,RR HUB

92075-1008

Unavailable

19

COLLAR,REAR HUB BRG.

92027-1013

$15.77

20

BEARING-BALL

601B6303U

$26.36

21

RING-SNAP,47MM

92033-1042

$4.22

22

PANEL-ASSY-BRAKE,RR

41035-1089

$361.26

23

SHOE-BRAKE

41048-1069

$27.31

24

SPRING,BRAKE SHOE

42020-004

$8.51

25

CAM-BRAKE

41050-1001

$35.31

26

SEAL,BRAKE CAM

41051-003

$4.26

27

INDICATOR,BRAKE SHOE

41085-004

Unavailable

28

LEVER-BRAKE CAM

41053-1001

$35.97

29

WASHER PLAIN 8MM

410B0800

$0.93

30

BOLT HEX HEAD 8X28

114G0828

$3.71

31

COLLAR,REAR AXLE,R.H.

92027-1015

$11.93

32

AXLE,REAR

41068-1004

$41.80

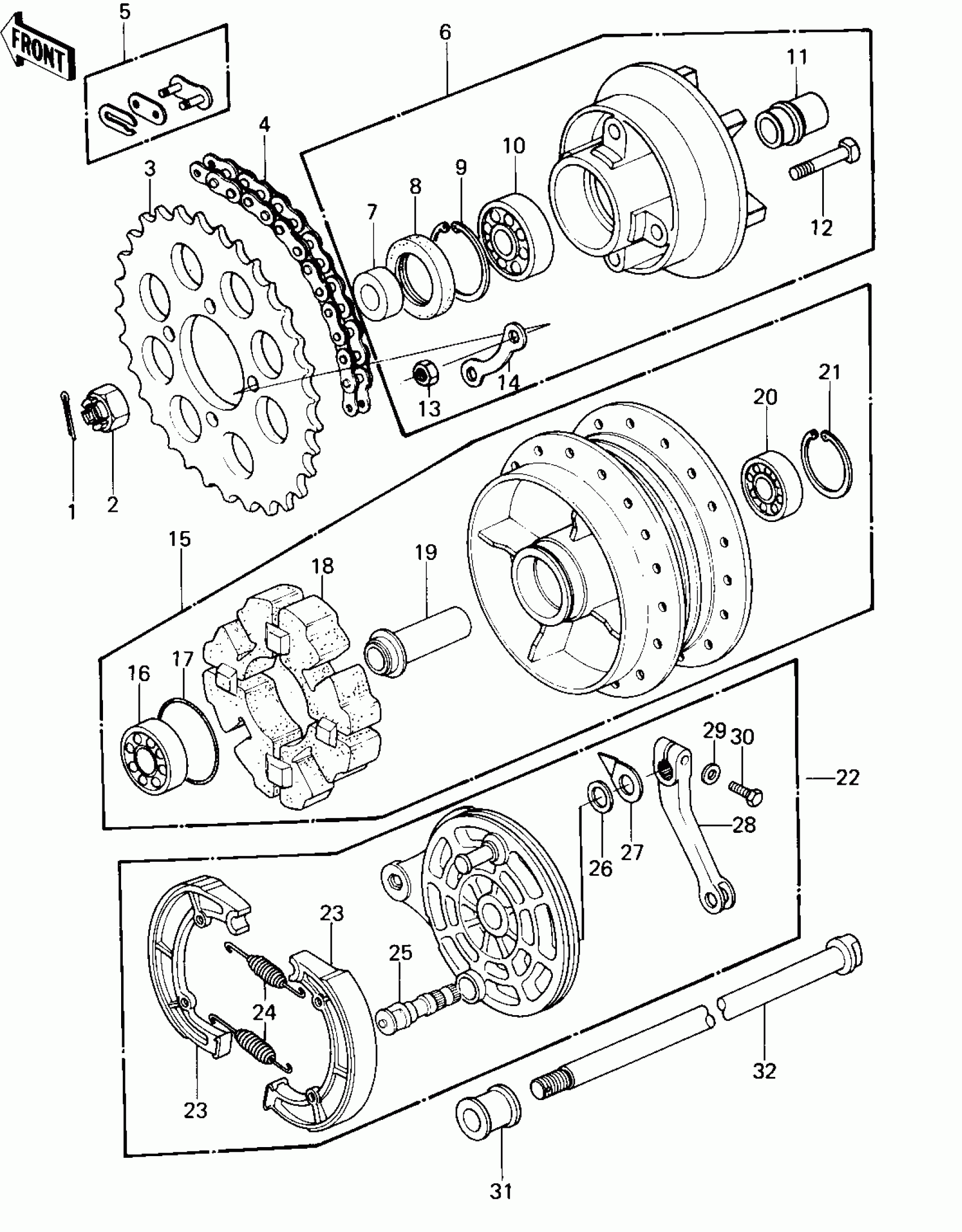

Kawasaki KZ440-B1 REAR HUB/BRAKE/CHAIN ('80 B1) Diagram

PIN-COTTER,4.0X35

NUT,16MM

REAR SPROCKET,45T

DR CHAIN 530X100

CHAIN JOINT 530

COUPLING ASSY,REAR

COLLAR,COUPLING,L.H.

SEAL-OIL,TWC35527

RING-SNAP,52MM

BEARING-BALL,#6205C3

SLEEVE,RR HUB COUPLING

BOLT,HUB SPROCKET,10X55

NUT-HEX-FINE,10MM

WASHER,SPROCKET LOCK

DRUM-ASSY,RR BRK

BEARING-BALL,#6303C3

O RING,60MM

DAMPER,SHOCK,RR HUB

COLLAR,REAR HUB BRG.

BEARING-BALL

RING-SNAP,47MM

PANEL-ASSY-BRAKE,RR

SHOE-BRAKE

SPRING,BRAKE SHOE

CAM-BRAKE

SEAL,BRAKE CAM

INDICATOR,BRAKE SHOE

LEVER-BRAKE CAM

WASHER PLAIN 8MM

BOLT HEX HEAD 8X28

COLLAR,REAR AXLE,R.H.

AXLE,REAR
