Description

Price

1

GASKET,OIL PUMP

11009-1014

Unavailable

2

OIL PUMP ASSY

16082-1001

Unavailable

3

SCREW PAN HEAD 6X10

220B0610

$3.14

4

SCREW PAN HEAD 6X25

220B0625

$2.60

5

ELEMENT-OIL FILTER

16099-003

$12.20

6

COVER,OIL STRAINER

16101-003

$19.22

7

COVER,OIL FILTER

16101-004

$44.52

8

FILTER,OIL

16111-003

$20.68

9

GASKET,OIL FILTER COVER

11009-1874

$7.55

10

VALVE,OIL FILTER

16126-1108

$41.98

11

BALL-STEEL,3/8"

600A1200

$1.56

12

PIN,SPRING,2X20

92043-111

$6.27

13

SPRING

92081-109

$11.29

14

VALVE-ASSY-RELIEF

16130-1001

Unavailable

15

SCREW PAN HEAD 6X30

220B0630

$3.41

16

O RING,16MM

670B2016

$1.36

17

O RING,90MM

671B2590

$9.91

18

WASHER,20.5X30X1

92022-1012

$4.34

19

SPRING,OIL FILTER

92081-1018

$4.65

20

PIN-DOWEL,6X12

551A0612

$0.94

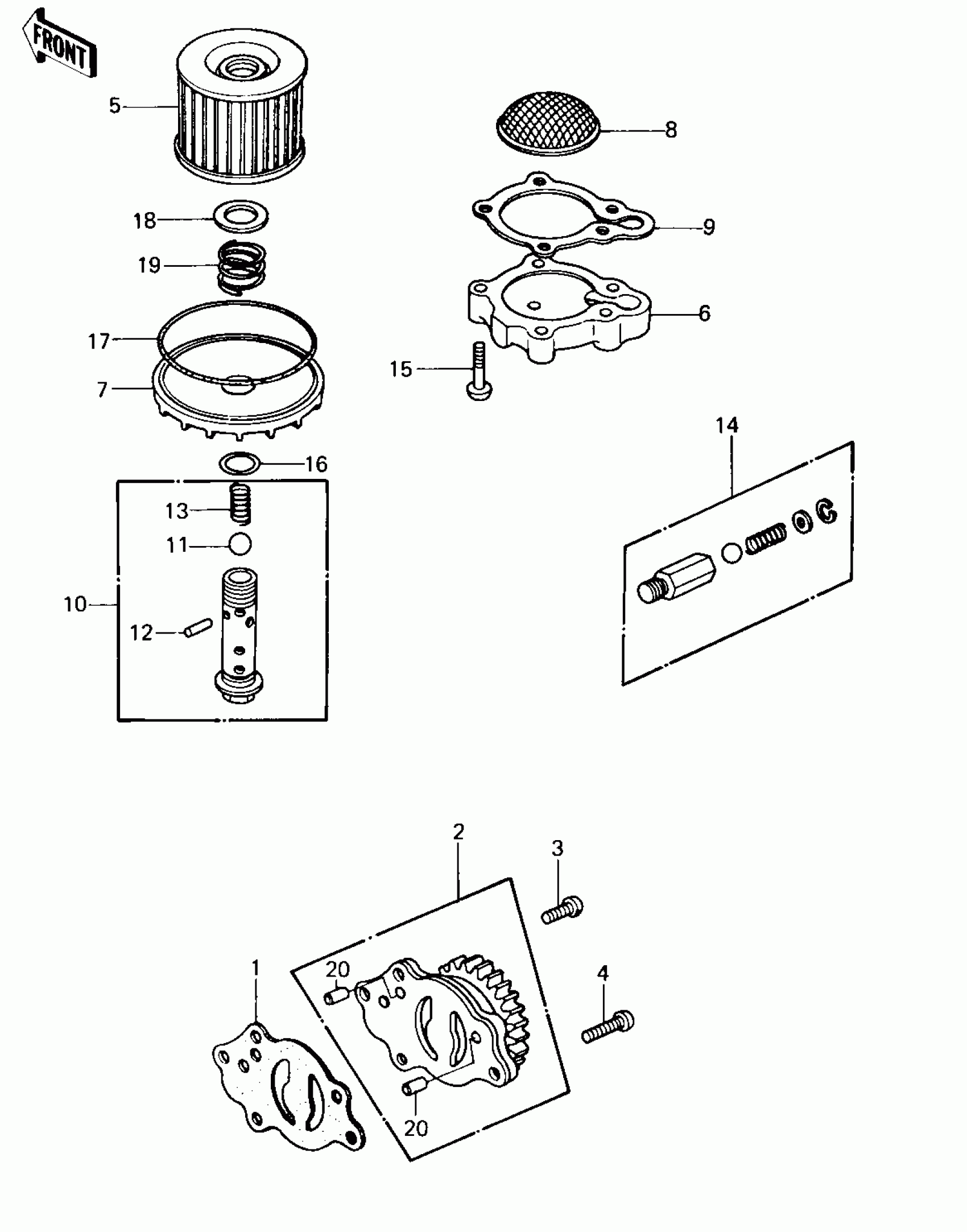

Kawasaki KZ440-B1 OIL PUMP/OIL FILTER ('80 B1) Diagram

GASKET,OIL PUMP

OIL PUMP ASSY

SCREW PAN HEAD 6X10

SCREW PAN HEAD 6X25

ELEMENT-OIL FILTER

COVER,OIL STRAINER

COVER,OIL FILTER

FILTER,OIL

GASKET,OIL FILTER COVER

VALVE,OIL FILTER

BALL-STEEL,3/8"

PIN,SPRING,2X20

SPRING

VALVE-ASSY-RELIEF

SCREW PAN HEAD 6X30

O RING,16MM

O RING,90MM

WASHER,20.5X30X1

SPRING,OIL FILTER

PIN-DOWEL,6X12
