Description

Price

1

LIGHT UNIT HEAD

23003-022

Unavailable

2

RIM-LAMP

23006-044

$92.87

3

LENS-COMP,"001-1269" MARK

23007-059

$99.38

4

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

5

SCREW ASY FOCUS ADJST

23013-008

Unavailable

6

SCREW ASY LENS UNIT

23013-009

$12.53

7

BODY-COMP-HEAD LAMP,F.BLACK

23005-047-21

Unavailable

8

WASHER

23021-010

$4.31

9

WASHER SPRING 5MM

461F0500

$0.69

10

SCREW,5MM

92011-024

$2.58

11

NUT,10MM

23020-021

Unavailable

12

BOLT,10X35

92007-024

$8.06

13

WASHER

92022-289

$16.33

14

COLLAR,HEAD LAMP

92027-1129

$6.35

15

COLLAR,10.2X13.4X8.1

92027-231

Unavailable

16

DAMPER,LAMP

92075-128

$5.86

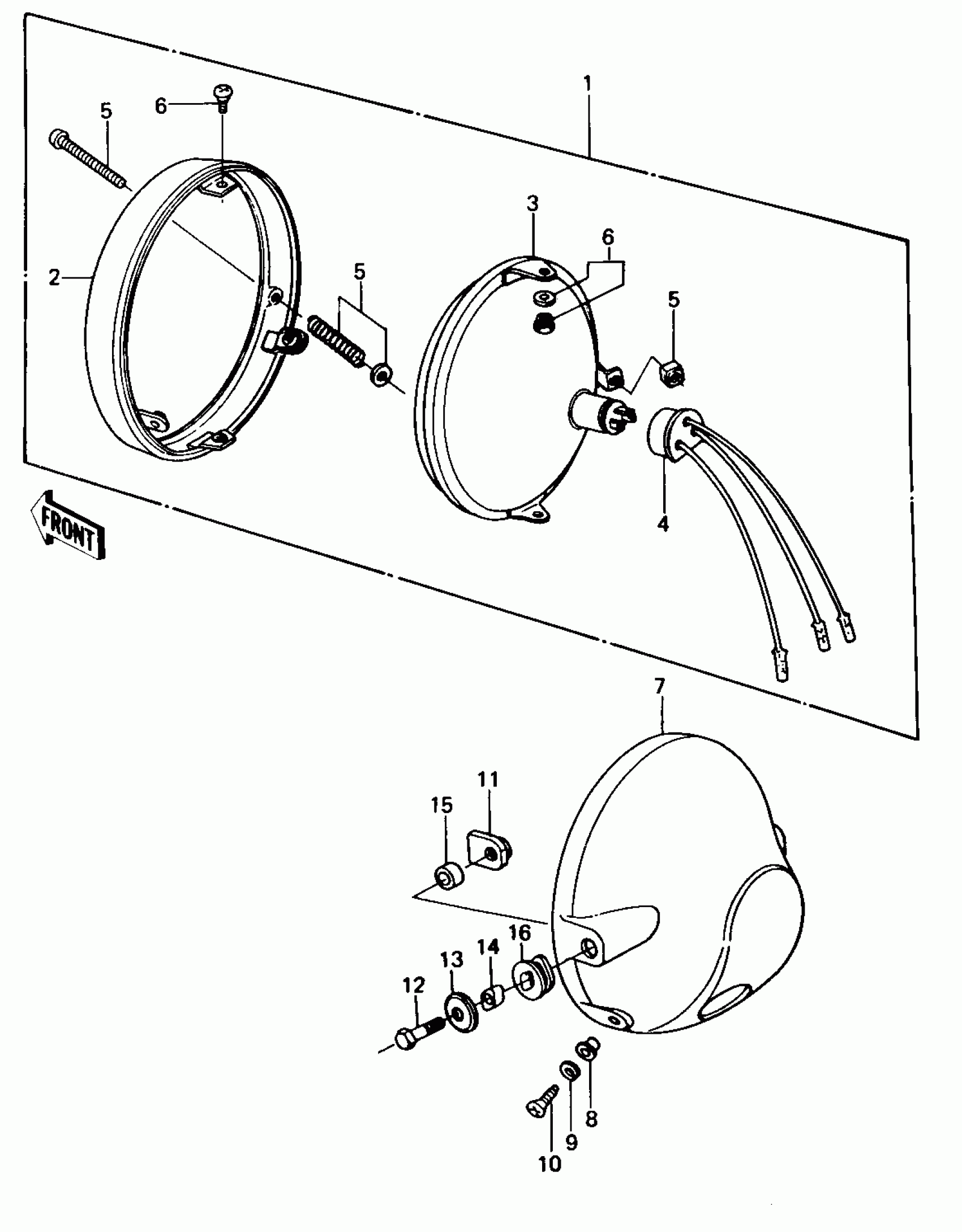

Kawasaki KZ440-B1 HEADLIGHT ('80 B1) Diagram

LIGHT UNIT HEAD

RIM-LAMP

LENS-COMP,"001-1269" MARK

SOCKET ASSY,HEAD LAMP

SCREW ASY FOCUS ADJST

SCREW ASY LENS UNIT

BODY-COMP-HEAD LAMP,F.BLACK

WASHER

WASHER SPRING 5MM

SCREW,5MM

NUT,10MM

BOLT,10X35

WASHER

COLLAR,HEAD LAMP

COLLAR,10.2X13.4X8.1

DAMPER,LAMP
