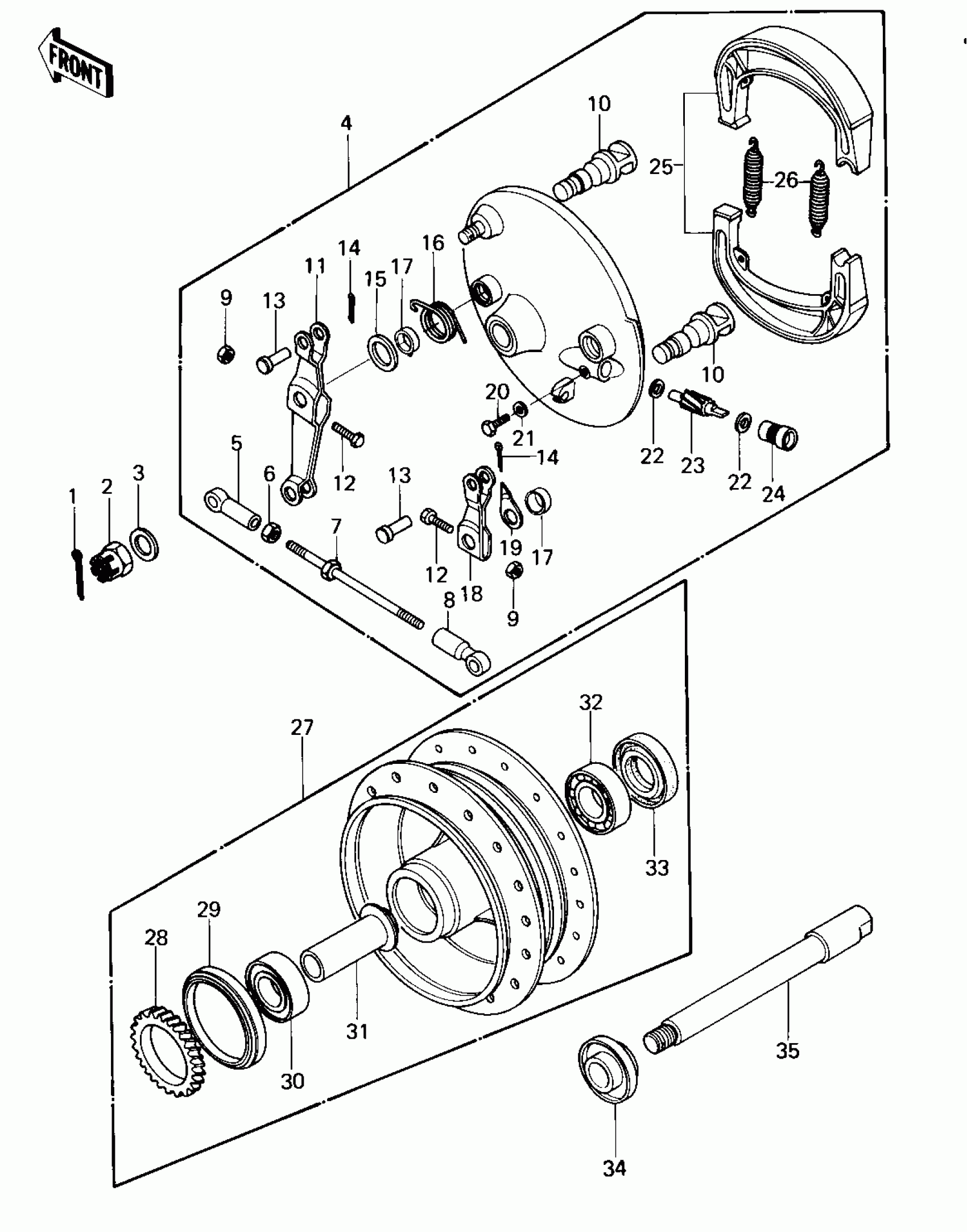

Kawasaki KZ440-B1 FRONT HUB/BRAKE ('80 B1) Diagram

#

Description
Price

1

PIN-COTTER,3.0X25

550D3025

$0.58

2

NUT,CASTLE,14MM

42045-020

$9.91

3

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

4

PANEL-ASY,FR BRK

41035-1005

$379.37

5

ROD END,BRK CONNECT

41058-008

Unavailable

6

NUT-HEX

311B0500

$0.47

7

ROD BRK CAM LEV CONCT

41057-004

Unavailable

8

ROD END,BRK CONNECT

41058-009

Unavailable

9

NUT,6MM

41072-007

$3.92

10

CAM SHAFT,FRONT BRAKE

41050-016

$46.88

11

LEVER FRT BRK CAM 1ST

41053-011

Unavailable

12

BOLT-UPSET

112G0630

$1.36

13

PIN BRAKE CONNECT ROD

41055-003

$9.02

14

PIN COTTER 1.2X10

550D1210

$2.65

15

WASHER,BRAKE CAMSHAFT

41052-005

Unavailable

16

SPRING FR BRK CAM LEV

41056-001

Unavailable

17

SEAL,BRAKE CAM

41051-001

$4.26

18

LEVER FRT BRK CAM 2ND

41053-012

Unavailable

19

INDICATOR,FR BK SHOE

41085-015

$8.42

20

BOLT-UPSET

112G0618

$1.01

21

WASHER PLAIN 6MM

411B0600

$2.84

22

WASHER PINION THRUST

41063-003

Unavailable

23

PINION SPEEDOMETER

41060-007

Unavailable

24

BUSH SPEDMETER PINION

41062-003

$29.59

25

SHOE,BRAKE

41048-019

Unavailable

26

SPRING FRNT BRK SHOE

41049-004

Unavailable

27

DRUM-ASSY,FR BRK

41034-1008

$209.05

28

GEAR,SPEEDOMETER,30T

41060-1014

$17.06

29

OIL SEAL WOC55687

92050-017

Unavailable

30

BEARING BALL #6302Z

601B6302Z

$27.38

31

SPACER F AXLE BEARING

41039-011

$8.54

32

BEARING-BALL,#6302C3

601B6302

$6.24

33

OIL SEAL WTC25428

92052-005

Unavailable

34

COLLAR,FRONT AXLE

92027-1049

Unavailable

35

AXLE,FRONT

41068-045

Unavailable
