Description

Price

1

FENDER-FR

35001-5007

$224.46

2

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

3

WASHER SPRING 8MM

461F0800

$0.40

4

BOLT-UPSET 6X14

112B0614

Unavailable

5

WASHER SPRING 6MM

461F0600

$0.69

6

SCREW-CSK-RD-CROS,5X20

222E0520A

$3.29

7

STAY,FRONT FENDER

35010-027

Unavailable

8

WASHER SPRING 5MM

461F0500

$0.69

9

NUT-HEX

311B0500

$0.47

10

BOLT-UPSET

112G0630

$1.36

11

WASHER SPRING 6MM

461F0600

$0.69

12

WASHER,7X24X1.6

92022-228

$3.92

13

COLLAR,L=13.1

92027-251

Unavailable

14

DAMPER,FEMALE

92075-175

$4.39

15

BOLT-UPSET

112G0625

$3.62

16

RUBBER,FENDER COVER

92075-174

$4.78

17

FENDER-RR

35022-138

$59.53

18

FENDER-RR

35022-1004

Unavailable

19

BOLT-UPSET

112G0618

$1.01

20

WASHER PLAIN 6MM

411B0600

$2.84

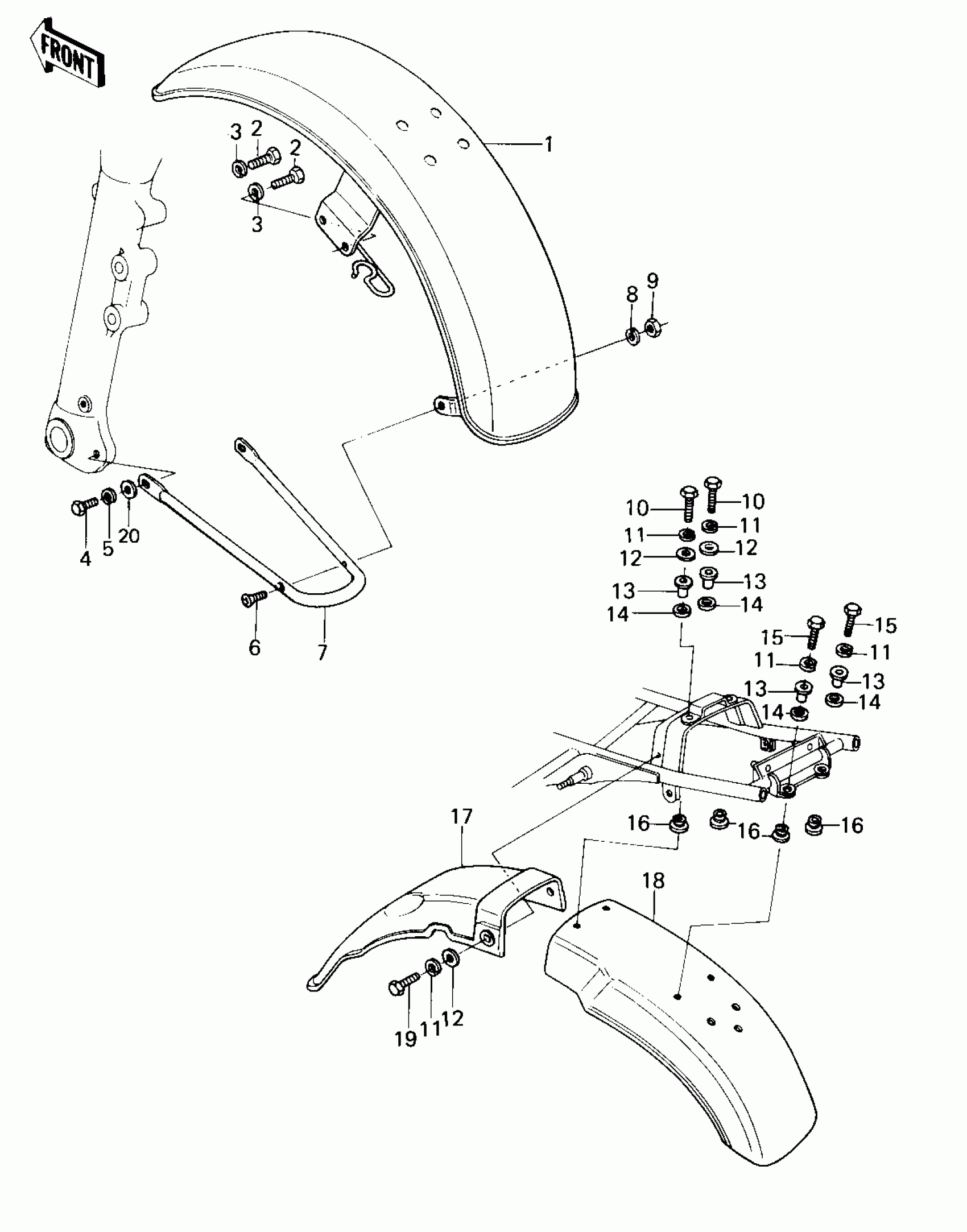

Kawasaki KZ440-B1 FENDERS ('80 B1) Diagram

FENDER-FR

BOLT-SMALL-UPSET,8X16

WASHER SPRING 8MM

BOLT-UPSET 6X14

WASHER SPRING 6MM

SCREW-CSK-RD-CROS,5X20

STAY,FRONT FENDER

WASHER SPRING 5MM

NUT-HEX

BOLT-UPSET

WASHER SPRING 6MM

WASHER,7X24X1.6

COLLAR,L=13.1

DAMPER,FEMALE

BOLT-UPSET

RUBBER,FENDER COVER

FENDER-RR

FENDER-RR

BOLT-UPSET

WASHER PLAIN 6MM
