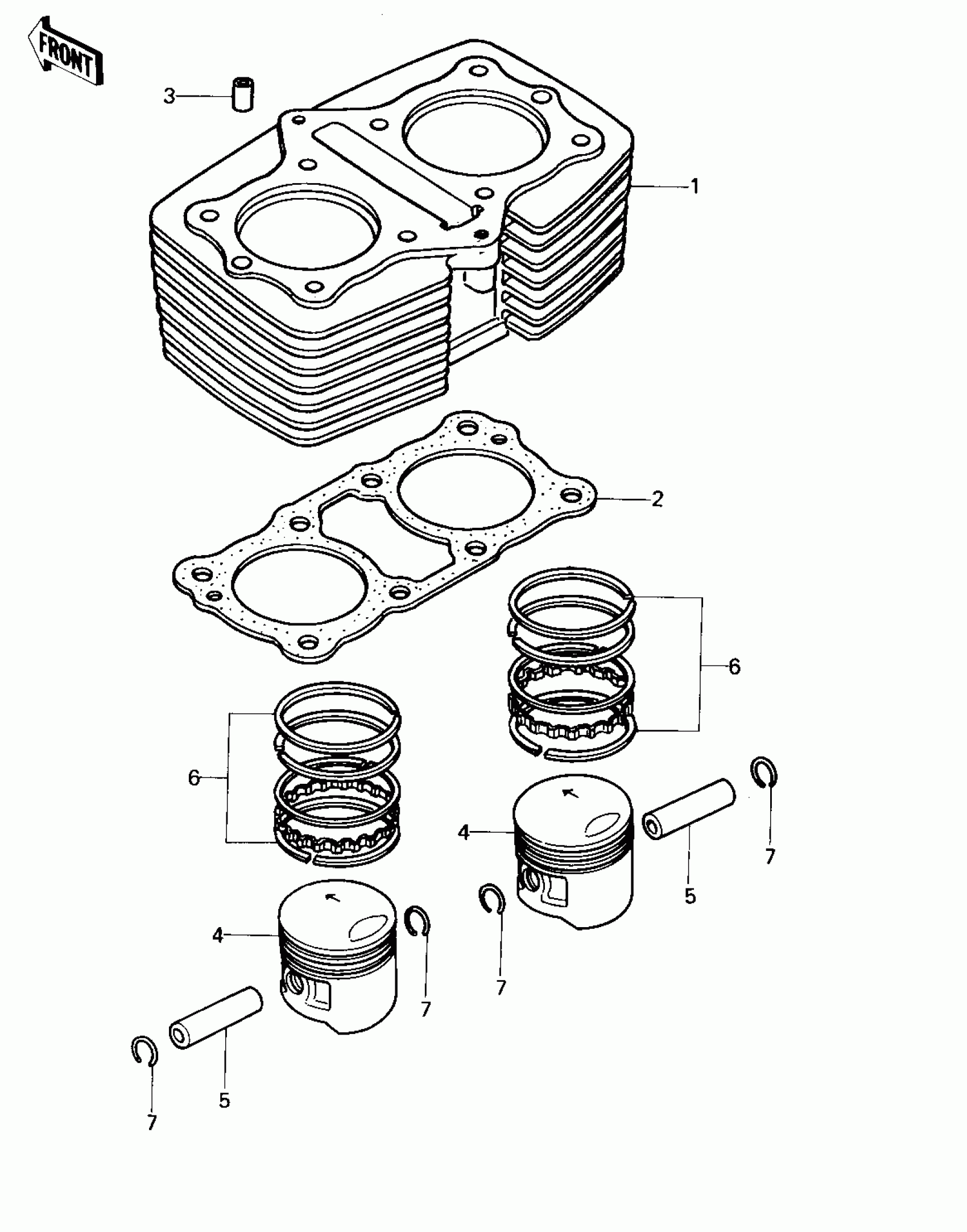

Kawasaki KZ440-B1 CYLINDER/PISTONS ('80 B1) Diagram

#

Description

Price

1

CYLINDER ASSY

11006-1004

Unavailable

2

GASKET,CYLINDER BASE

11009-1176

Unavailable

3

PIN,DOWEL,10X14

92043-1037

$0.74

4

PISTON,STD

13001-1032

Unavailable

4

PISTON,0.020",O/S

13029-1014

Unavailable

4

PISTON,0.040",O/S

13027-1015

Unavailable

5

PIN-PISTON

13002-1011

Unavailable

6

RING SET,PISTON,STD

13008-5029

$112.62

6

RING SET,0.020",O/S

13025-5015

Unavailable

6

RING SET,0.040",O/S

13024-5015

Unavailable

7

RING-SNAP

92036-005

$4.07
