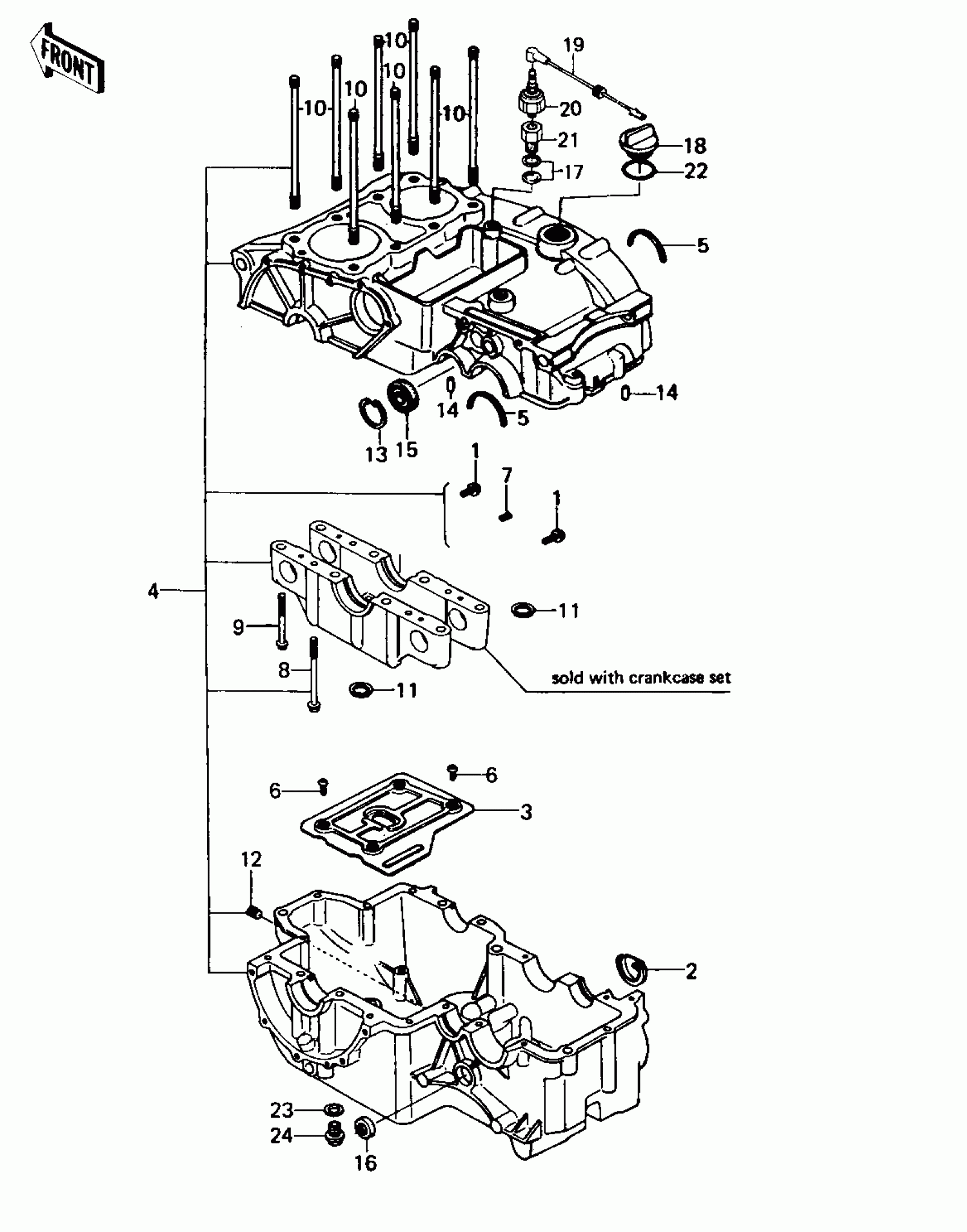

Kawasaki KZ440-B1 CRANKCASE ('80 B1) Diagram

#

Description
Price

1

BOLT,FLANGED,6X8

130P0608

$2.12

1

BOLT,FLANGED,6X8

130P0608

$2.12

2

RECEIVER,OIL

13045-1001

Unavailable

3

PLATE,CRANKCASE

13169-1103

Unavailable

4

SET-CRANKCASE

14001-5087

Unavailable

5

RING-POSITION

14013-004

$10.19

6

SCREW PAN HEAD 6X12

220B0612

Unavailable

7

SCREW-SET-SOCKET,6X6

290Q0606

$6.34

7

SCREW-SET-SOCKET,6X6

290Q0606

$6.34

8

BOLT,FLANGED,10X91

92001-1004

$9.74

9

BOLT,FLANGED,8X58

92001-1005

$7.33

9

BOLT,FLANGED,8X58

92001-1005

$7.33

9

BOLT,FLANGED,8X58

92001-1005

$7.33

10

STUD,10X153

92004-062

$18.74

10

STUD,10X153

92004-062

$18.74

11

RING-O,OD=18

92055-048

$4.80

12

PLUG,OIL LINE,1/8X7

92066-059

Unavailable

12

PLUG,OIL LINE,1/8X7

92066-059

Unavailable

13

CIRCLIP,36M/M

481J3600

$5.45

14

PIN,DOWEL,6X16

92042-016

$5.00

15

OIL SEAL,PUSH ROD

92049-1041

$25.75

16

SEAL-OIL,TB13225.5

92051-005

$7.74

17

GASKET,10X14.5X1.5

11009-1105

$6.51

18

CAP-OIL FILLER

16115-013

$19.96

19

WIRE,LEAD,OIL SWITCH

26011-1078

Unavailable

20

SWITCH,OIL PRESSURE

27010-1157

Unavailable

21

BOLT,OIL SWITCH

92001-1020

$12.00

22

RING-O,31.5X2.6

92055-049

$4.31

23

GASKET,12X22X2

92065-097

$0.74

24

PLUG,OIL DRAIN,12X15

92066-1174

$6.16
