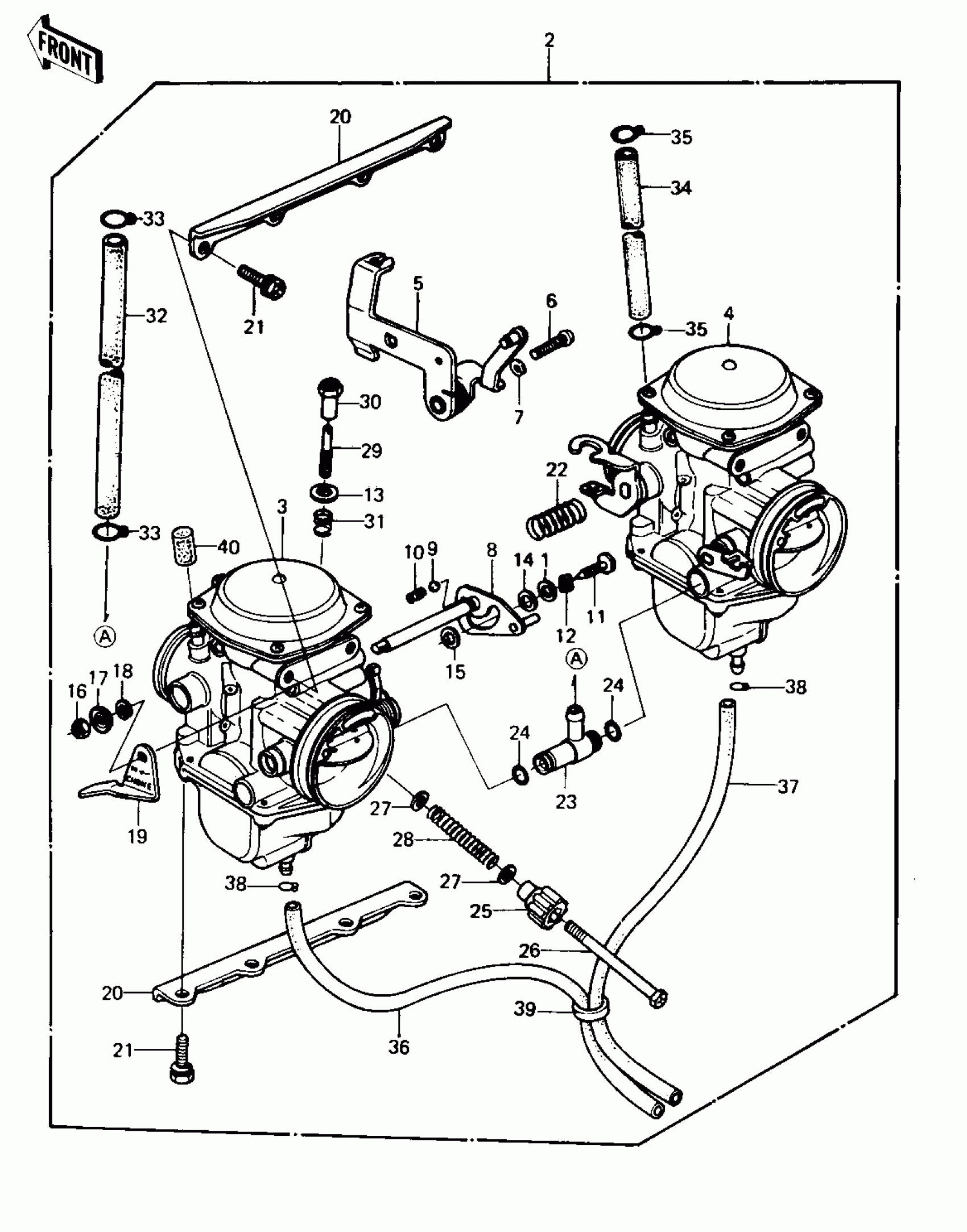

Kawasaki KZ440-B1 CARBURETOR ASSY ('80 B1) Diagram

#

Description
Price

1

WASHER,6.5X11X1.2,STL

92022-1207

$4.37

2

CARBURETOR ASSY

16001-1241

Unavailable

3

CARBURETOR,L.H.

16001-1292

$232.06

4

CARBURETOR,R.H.

16001-1293

$285.64

5

BRACKET,THROTTLE CABL

11034-1805

Unavailable

6

SCREW-PAN-CROS

220B0520

$0.68

7

WASHER SPRING 5MM

461F0500

$0.69

8

SHAFT,LINK

16041-1020

$49.97

9

BALL,STEEL,3/16"

92140-1004

$1.51

10

SPRING

92081-1249

$7.55

11

SCREW,LINK SHAFT

92009-1096

$8.54

12

SPRING,WAVED WASHER

92081-1262

$3.83

13

WASHER

92022-1204

Unavailable

14

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

15

WASHER,6.4X9.4X0.8,PL

92022-1200

Unavailable

16

NUT-HEX

311B0500

$0.47

17

WASHER,LOCK,5M/M

92022-1201

Unavailable

18

WASHER SPRING 5MM

461F0500

$0.69

19

LEVER,CHOKE

13168-1065

Unavailable

20

PLATE,STAY

16065-1012

Unavailable

21

SCREW,6X16

92009-1129

Unavailable

22

SPRING

92081-1258

$6.00

23

FITTING,FUEL TUBE

92005-1026

$47.19

24

RING-O

92055-1004

$4.31

25

HOLDER,ADJUST

13091-1078

Unavailable

26

BOLT,HEX HEAD,5X70

92001-1328

$10.10

27

WASHER

92022-1203

$5.45

28

SPRING

92081-1251

$4.71

29

SCREW-THROTTLE STOP

16021-1027

Unavailable

30

NUT,5MM

92015-1118

Unavailable

31

SPRING

92081-1252

Unavailable

32

TUBE,FUEL,7.3X12.5X200

92059-1029

$30.56

33

CLAMP,FUEL TUBE

92037-1075

$3.96

34

TUBE,5.3X10.5X200

92059-1001

Unavailable

35

CLAMP,TUBE

92037-1682

$6.15

36

TUBE,3.5X6.5X330

92059-111

$22.10

37

TUBE,3.5X6.5X330

92059-111

$22.10

38

CLAMP,TUBE

92037-1142

$4.31

39

TUBE,CLAMP

92059-1141

$11.06

40

CAP,RUBBER

11012-1129

Unavailable
