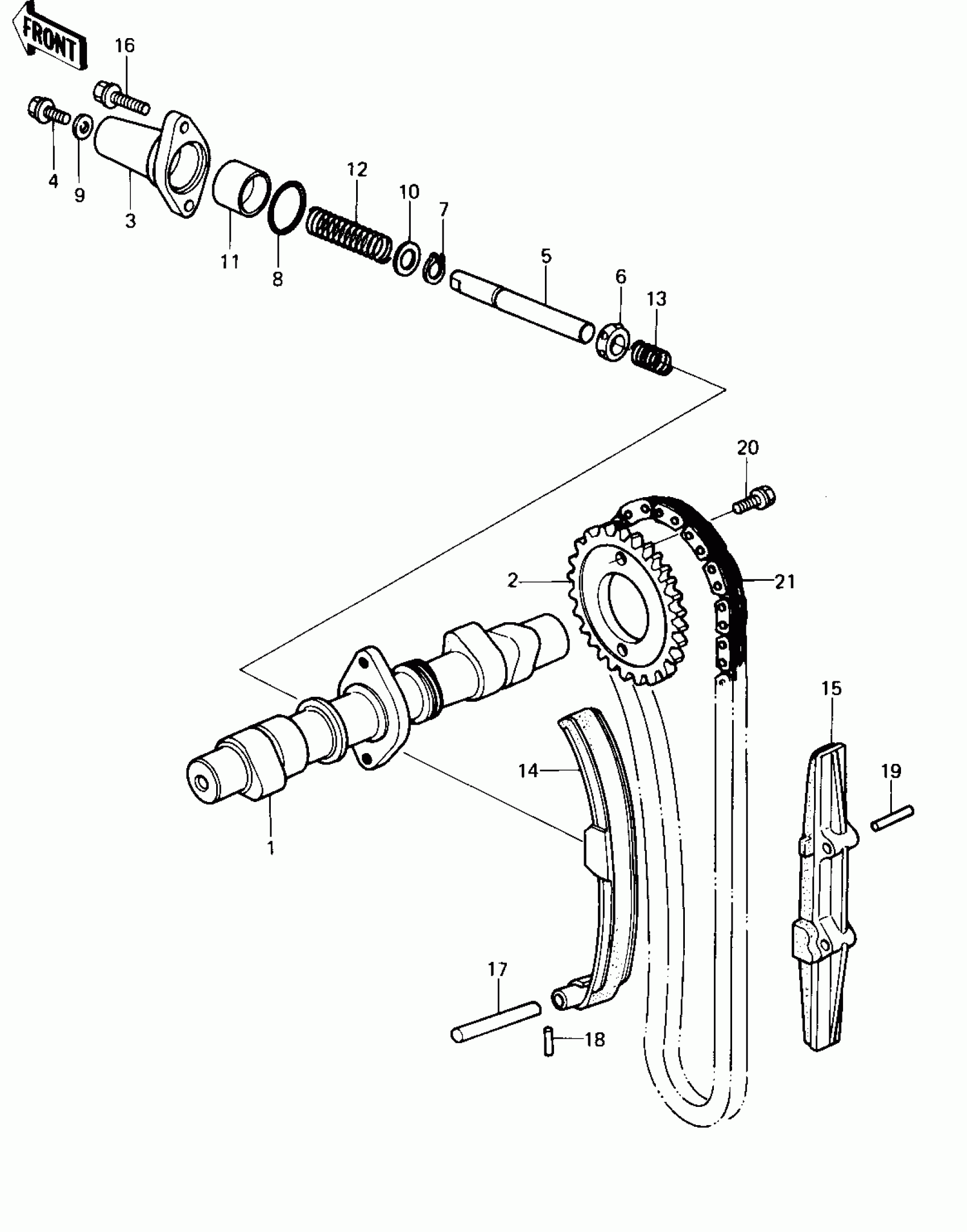

Kawasaki KZ440-B1 CAMSHAFT/CHAIN/TENSIONER ('80 B1) Diagram

#

Description
Price

1

CAMSHAFT,VALVE

12044-5001

Unavailable

2

SPROCKET,CAM,46T

12046-1022

Unavailable

3

TENSIONER,CAM CHAIN

12049-1010

Unavailable

4

BOLT-FLANGED,6X14

130N0614

$3.24

5

ROD-PUSH,TENSIONER

13116-1022

Unavailable

6

RETAINER,TENSIONER

14020-1002

$17.55

7

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

8

O RING,21MM

670D2021

$6.85

9

WASHER OIL PUMP BANJO

92022-077

$3.99

10

WASHER,10.2X14.5X1.0

92022-1181

$3.92

11

COLLAR,TENSIONER

92027-1240

$15.92

12

SPRING,TENSIONER

92081-1206

Unavailable

13

SPRING,TENSIONER

92081-1207

$5.17

14

GUIDE,CHAIN,FRONT

12053-1041

Unavailable

15

GUIDE,CHAIN,REAR

12053-1042

Unavailable

16

BOLT-FLANGED,6X20

130G0620

$1.69

17

SHAFT,CHAIN GUIDE

39115-1001

$4.36

18

PIN,DOWEL,3X25

551A0325

Unavailable

19

PIN,DOWEL,5X32

551A0532

$3.14

20

BOLT,FLANGED,6X11

92003-208

$4.31

21

CHAIN,CAMSHAFT,114L

92057-1038

Unavailable
