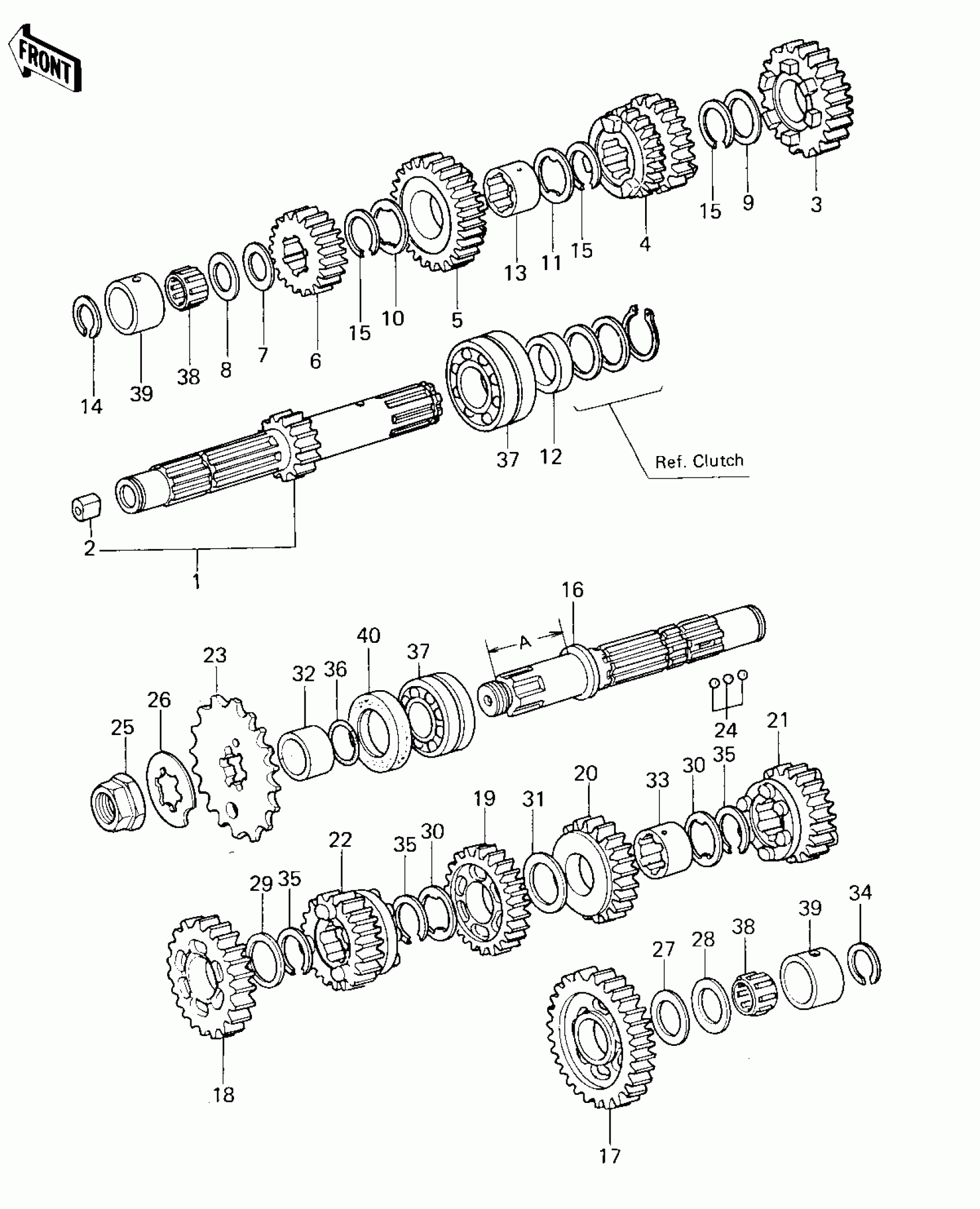

Kawasaki KZ400-H1 TRANSMISSION Diagram
#
1
SHAFT,DRIVE,13T
13127-1004
Unavailable
2
BUSHING,DRIVE SHAFT
92028-155
Unavailable
3
GEAR,INPUT5TH,23T
13129-1277
Unavailable
4
3RD-4TH GEAR,DRV SHFT
13129-1054
Unavailable
5
TOP GEAR,DRV SHAFT
13129-1055
Unavailable
6
2ND GEAR,DRV SHAFT
13129-1062
Unavailable
7
WASHER,20.5X30X1,STEEL
92022-112
$8.86
8
WASHER,20.5X30X0.5,STEEL
92022-144
Unavailable
9
WASHER,25.3X30X0.5
92022-159
$8.58
10
WASHER,TOOTHED,25.5X32X1
92024-033
$8.19
11
WASHER,TOOTHED,22.5X31X0.5
92024-038
$6.22
12
COLLAR
92027-289
Unavailable
13
BUSHING,OUTPUT 3RD GR
92028-1002
$44.59
14
RING-SNAP,20MM
92033-015
$4.26
15
RING-SNAP,24MM
92033-026
$8.79
16
SHAFT,OUTPUT
13128-1015
Unavailable
17
LOW GEAR,OUTPUT SHAFT
13129-1056
Unavailable
18
2ND GEAR,OUTPUT SHAFT
13129-1057
Unavailable
19
3RD GEAR,OUTPUT SHAFT
13129-1058
Unavailable
20
4TH GEAR,OUTPUT SHAFT
13129-1059
Unavailable
21
5TH GEAR,OUTPUT SHAFT
13129-1060
Unavailable
22
TOP GEAR,OUTPUT SHAFT
13129-1061
Unavailable
23
ENGINE SPROCKET,15T
13144-1018
Unavailable
24
BALL-STEEL,5/32
600A0500
$0.81
25
NUT,20MM
92015-1254
$14.90
26
WASHER,SPLINE
92022-1083
Unavailable
27
WASHER,20.5X30X1,STEEL
92022-112
$8.86
28
WASHER,20.5X30X0.5,STEEL
92022-144
Unavailable
29
WASHER,25.3X30X0.5
92022-159
$8.58
30
WASHER,TOOTHED,22.5X31X0.5
92024-038
$6.22
31
SPACER,30X38X1.0
92026-079
$8.86
32
COLLAR,ENG SPROCKET
92027-288
$39.34
33
BUSHING,OUTPUT GEAR
92028-1268
$28.88
34
RING-SNAP,20MM
92033-015
$4.26
35
RING-SNAP,24MM
92033-026
$8.79
36
RING-O
92055-035
$5.00
37
BEARING,B,5205ANX4PX
92045-031
$67.65
38
BEARING-NEEDLE,20R2513P
92046-044
$22.69
39
RACE,OUT & DRV SHAFT
92048-1001
$15.68
40
SEAL-OIL,SC325210
92050-024
$8.17
