Description

Price

1

BOLT-UPSET

112G0625

$3.62

2

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

3

SCREW-PAN-CROS

220R0460

Unavailable

4

LENS,TAIL LAMP

23026-034

$77.14

5

BODY-COMP-TAIL LAMP

23027-041

$128.08

6

GASKET,TAIL LAMP LENS

23028-021

$12.37

7

BULB,12V 27/8W

92069-059

$8.12

8

BRACKET,TAIL LAMP

23036-1005

$93.85

9

DAMPER

23066-020

$14.96

10

DAMPER

23066-023

$17.63

11

COLLAR,6.8X10X8.5

92027-129

$5.00

12

BOLT-UPSET

112G0618

$1.01

13

WASHER,6.5X20X1.6

92022-125

$1.40

14

WASHER SPRING 6MM

461F0600

$0.69

15

COLLAR,6.8X10X14.5

92027-156

$5.00

16

COLLAR

92027-169

$6.15

17

DAMPER,TAIL LAMP

92075-1055

$9.62

18

DAMPER,FENDER

92075-121

$4.56

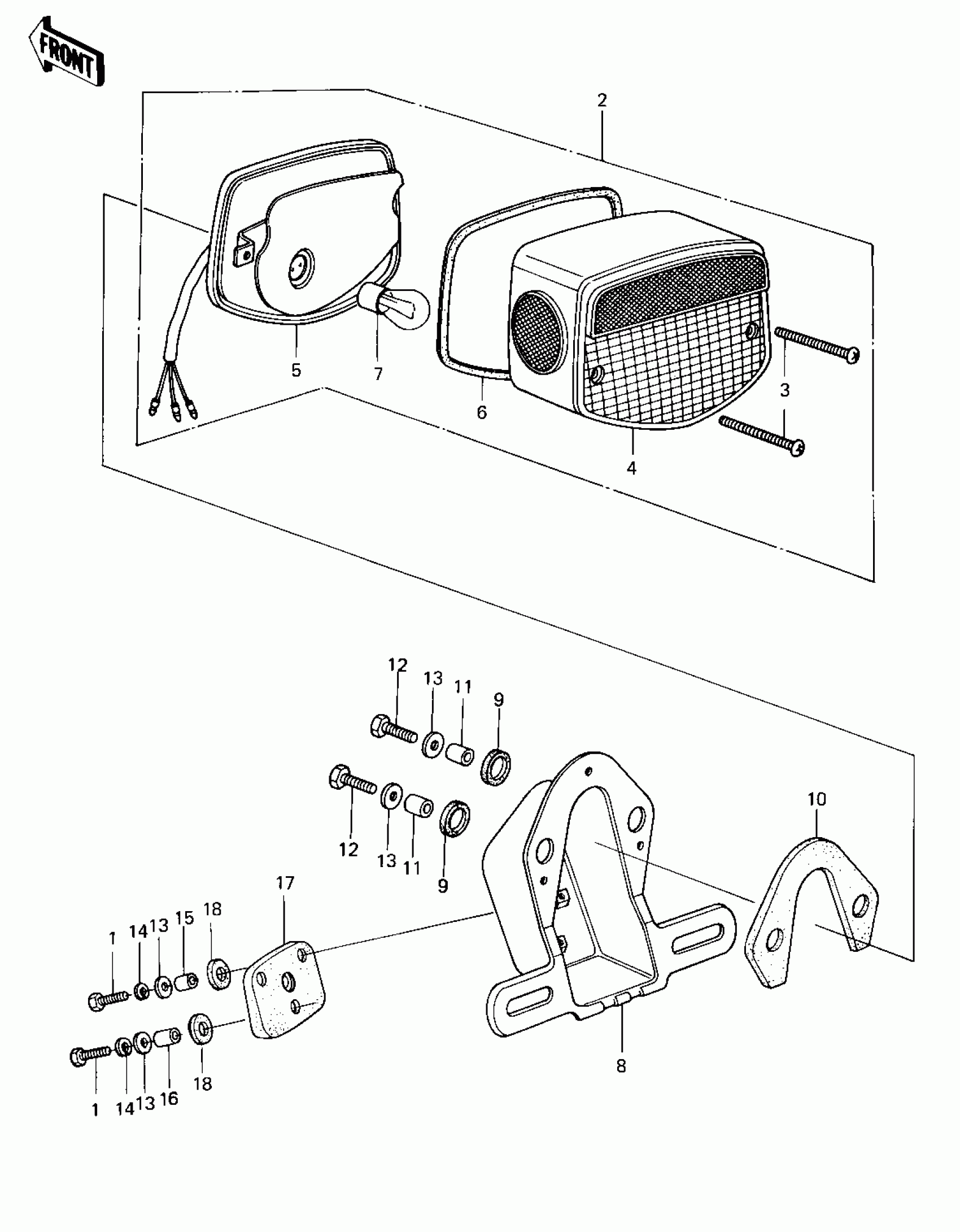

Kawasaki KZ400-H1 TAILLIGHT Diagram

BOLT-UPSET

LAMP-TAIL,"220-40781"MARK

SCREW-PAN-CROS

LENS,TAIL LAMP

BODY-COMP-TAIL LAMP

GASKET,TAIL LAMP LENS

BULB,12V 27/8W

BRACKET,TAIL LAMP

DAMPER

DAMPER

COLLAR,6.8X10X8.5

BOLT-UPSET

WASHER,6.5X20X1.6

WASHER SPRING 6MM

COLLAR,6.8X10X14.5

COLLAR

DAMPER,TAIL LAMP

DAMPER,FENDER
