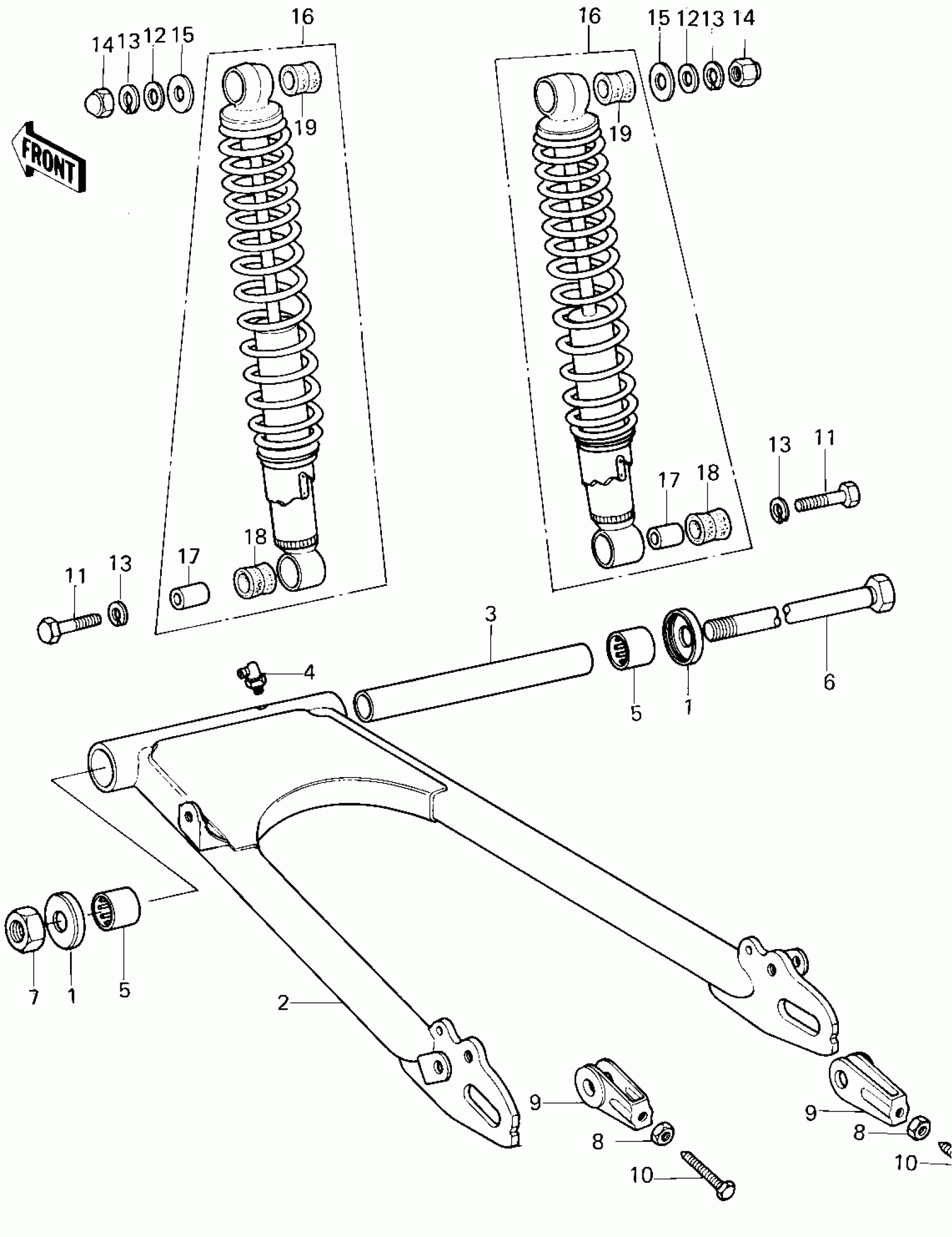

Kawasaki KZ400-H1 SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

1

CAP,SWING ARM

11012-1029

$20.99

2

ARM-COMP-SWING

33001-1107

$227.75

3

SLEEVE,SWING ARM

42036-1017

Unavailable

4

GREASE NIPPLE

92005-002

Unavailable

5

BEARING-NEEDLE,HK2216

92046-1115

$20.02

6

SHAFT,SWING ARM PIVOT

33032-1011

$46.40

7

NUT-LOCK,14MM

92019-011

Unavailable

8

NUT 8MM

312B0800

$0.58

9

ADJUSTER-CHAIN

33040-043

$28.47

10

BOLT,8X50

92001-1399

$9.48

11

BOLT HEX HEAD 10X35

113N1035

$9.14

12

WASHER-PLAIN,10MM

411B1000

$0.93

13

WASHER SPRING 10MM

461F1000

$0.67

14

NUT,CAP,10MM

92020-003

$6.52

15

WASHER,10.5X26X2.3

92022-044

$3.92

16

SHOCK ABSBR RR

45014-1039

$217.12

17

COLLAR,SHOCKABSORBER

45016-008

$9.91

18

DAMPER,SHOCKABSORBER

45017-012

$14.90

19

DAMPER,SHOCKABSORBER

45017-015

Unavailable
