Description

Price

1

GASKET,16X19.7X1.5

11009-1106

$6.26

2

VALVE,INTAKE

12004-1001

Unavailable

3

VALVE,EXHAUST

12005-1001

Unavailable

4

SPRING,OUTER VALVE

12007-013

$16.53

5

SPRING,INNER VALVE

12007-014

$16.53

6

RETAINER,VALVE SPRING

12009-006

$11.50

7

SEAT,VLV OUTER SPRING

12010-005

$8.12

8

SEAT,VLV INNER SPRING

12010-006

Unavailable

9

COLLET,RETAINER

12011-004

$5.46

10

ARM,ROCKER

12016-1001

Unavailable

11

SHAFT,ROCKER

12020-1001

Unavailable

12

SCREW,6MM

92009-1032

$7.29

13

NUT,6MM

92016-061

$4.69

14

SEAL-OIL,RV37129.5

92049-016

$18.35

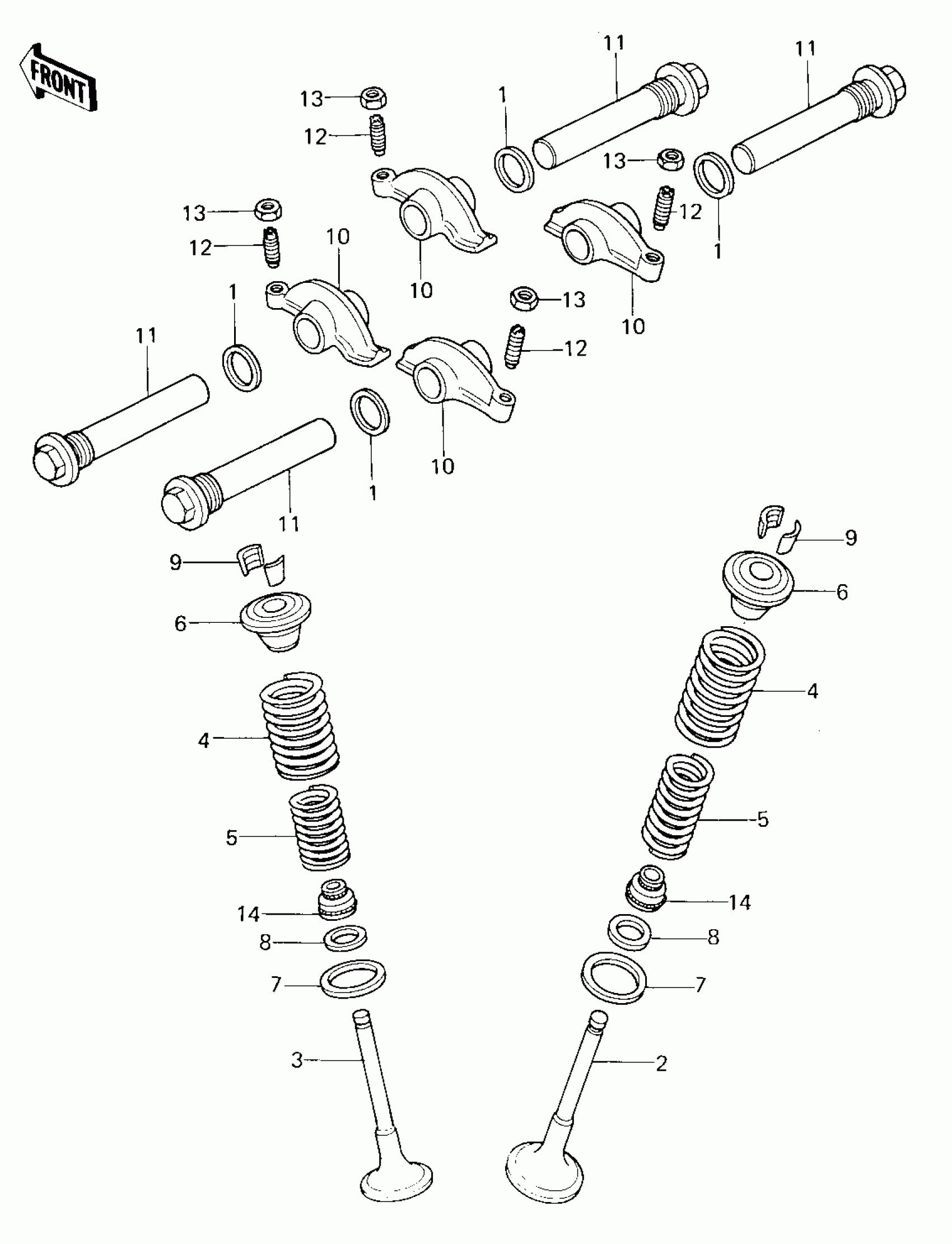

Kawasaki KZ400-H1 ROCKER ARMS/VALVES Diagram

GASKET,16X19.7X1.5

VALVE,INTAKE

VALVE,EXHAUST

SPRING,OUTER VALVE

SPRING,INNER VALVE

RETAINER,VALVE SPRING

SEAT,VLV OUTER SPRING

SEAT,VLV INNER SPRING

COLLET,RETAINER

ARM,ROCKER

SHAFT,ROCKER

SCREW,6MM

NUT,6MM

SEAL-OIL,RV37129.5
