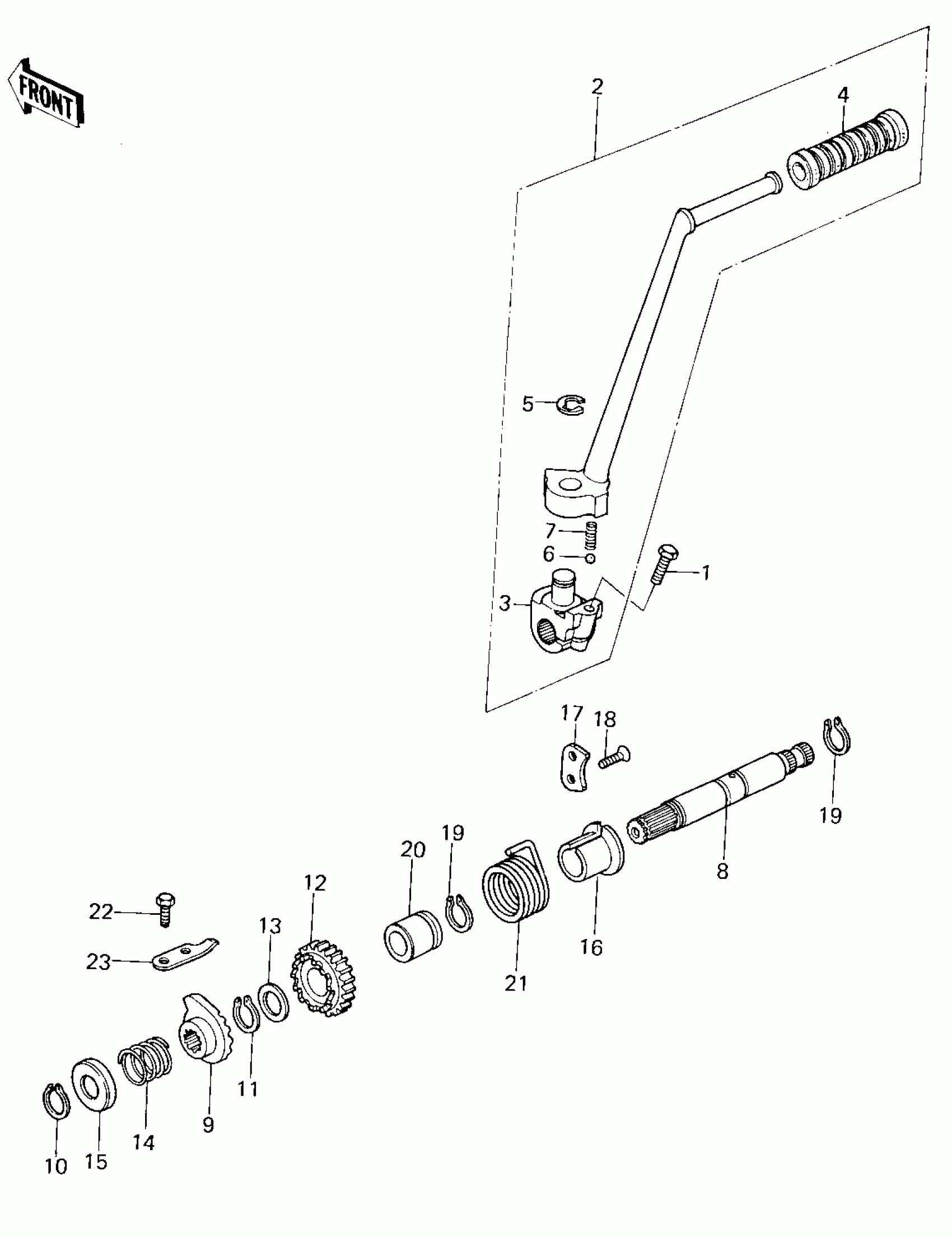

Kawasaki KZ400-H1 KICKSTARTER MECHANISM Diagram

#

Description
Price

1

BOLT,FLANGED,8X35

92001-1577

Unavailable

2

PEDAL ASSY,KICK

13064-1002

Unavailable

3

BOSS,KICK PEDAL

13061-1001

Unavailable

4

DAMPER,KICK PEDAL

13063-004

$10.94

5

CIRCLIP-TYPE-E,9MM

482K9000

$4.39

6

BALL-STEEL,1/4

600A0800

$0.62

7

SPRING,KICK PEDAL

92081-020

$4.26

8

SHAFT,KICK

13066-1001

Unavailable

9

RATCHET,KICK SHAFT

13078-011

Unavailable

10

CIRCLIP-TYPE-C,19MM

480J1900

$1.28

11

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

12

GEAR,KICK,20T

59051-1007

Unavailable

13

WASHER,20.5X30X1,STEEL

92022-112

$8.86

14

SPRING RATCHET

92081-104

$10.23

15

CAP,KICKSTARTER

92102-008

Unavailable

16

GUIDE,KICK SPRING

13070-009

Unavailable

17

PLATE-DRUM LEV POSTON

13169-007

Unavailable

18

SCREW-CSK-CROS,6X12

221B0612

$2.06

19

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

20

BUSHING,KICK SHAFT

92028-175

$17.51

21

SPRING,KICK RETURN

92082-006

Unavailable

22

BOLT-UPSET

112G0614

$1.96

23

STOPPER,KICKSTARTER

13072-012

Unavailable
