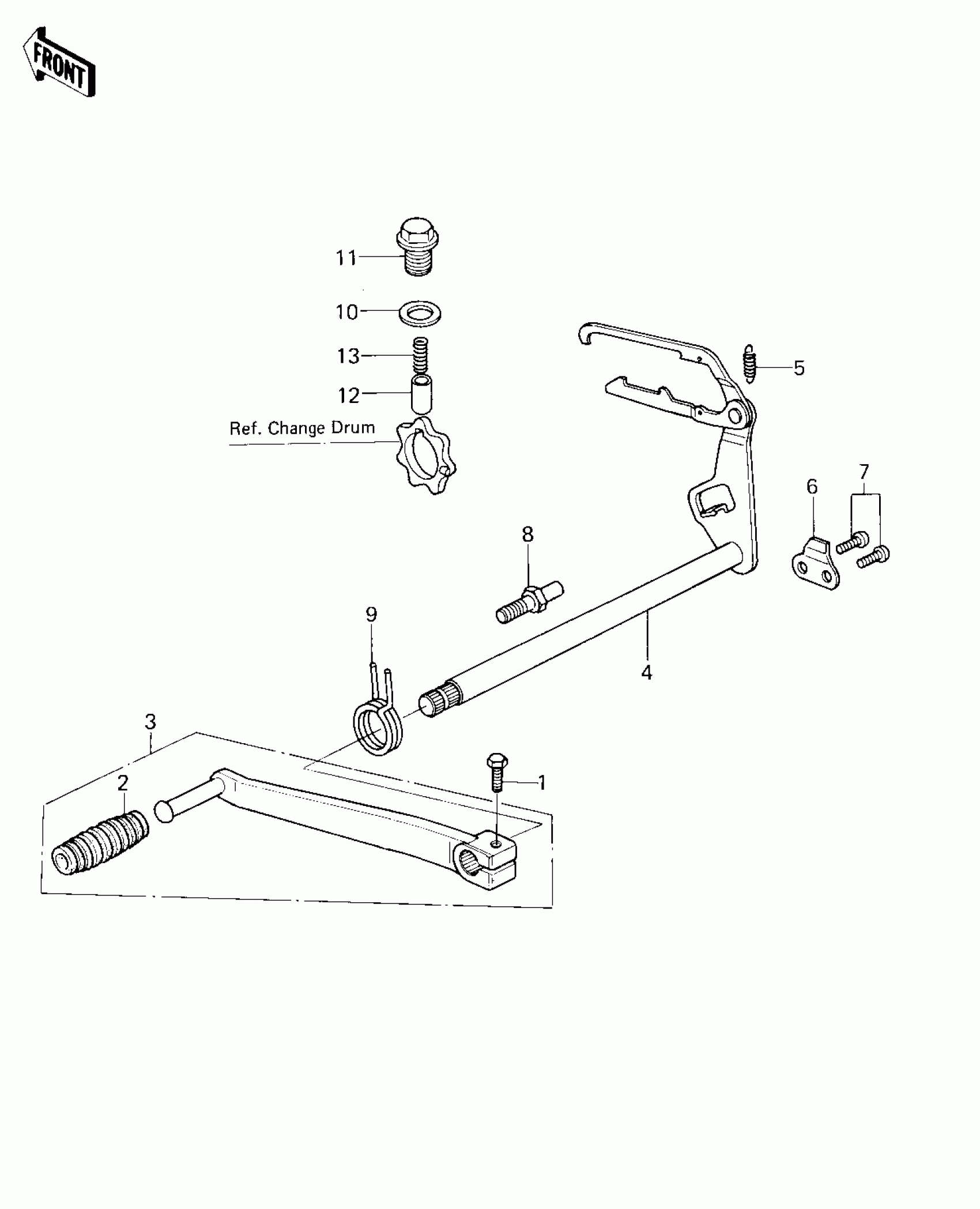

Kawasaki KZ400-H1 GEAR CHANGE MECHANISM Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

DAMPER,CHANGE PEDAL

92160-1036

$3.85

3

PEDAL ASSY,GEAR CHANG

13242-1019

Unavailable

4

LEVER COMP,CHNG SHAFT

13161-1001

Unavailable

5

SPRING,CHANGE LEVER

92081-076

$4.14

6

PLATE,GEAR SHIFT LEV

13169-011

Unavailable

7

SCREW-PAN-CROS,6X16

220B0616

Unavailable

8

BOLT,RETURN SPRING

92001-1401

$4.17

9

SPRING,CHG PEDL RTRN

92083-028

Unavailable

10

GASKET,15.5X22X1

11009-1008

$2.75

11

BOLT,NEUTRAL POSITION

92001-1037

$12.73

12

PIN

92043-076

$11.22

13

SPRING

92081-112

$5.37
