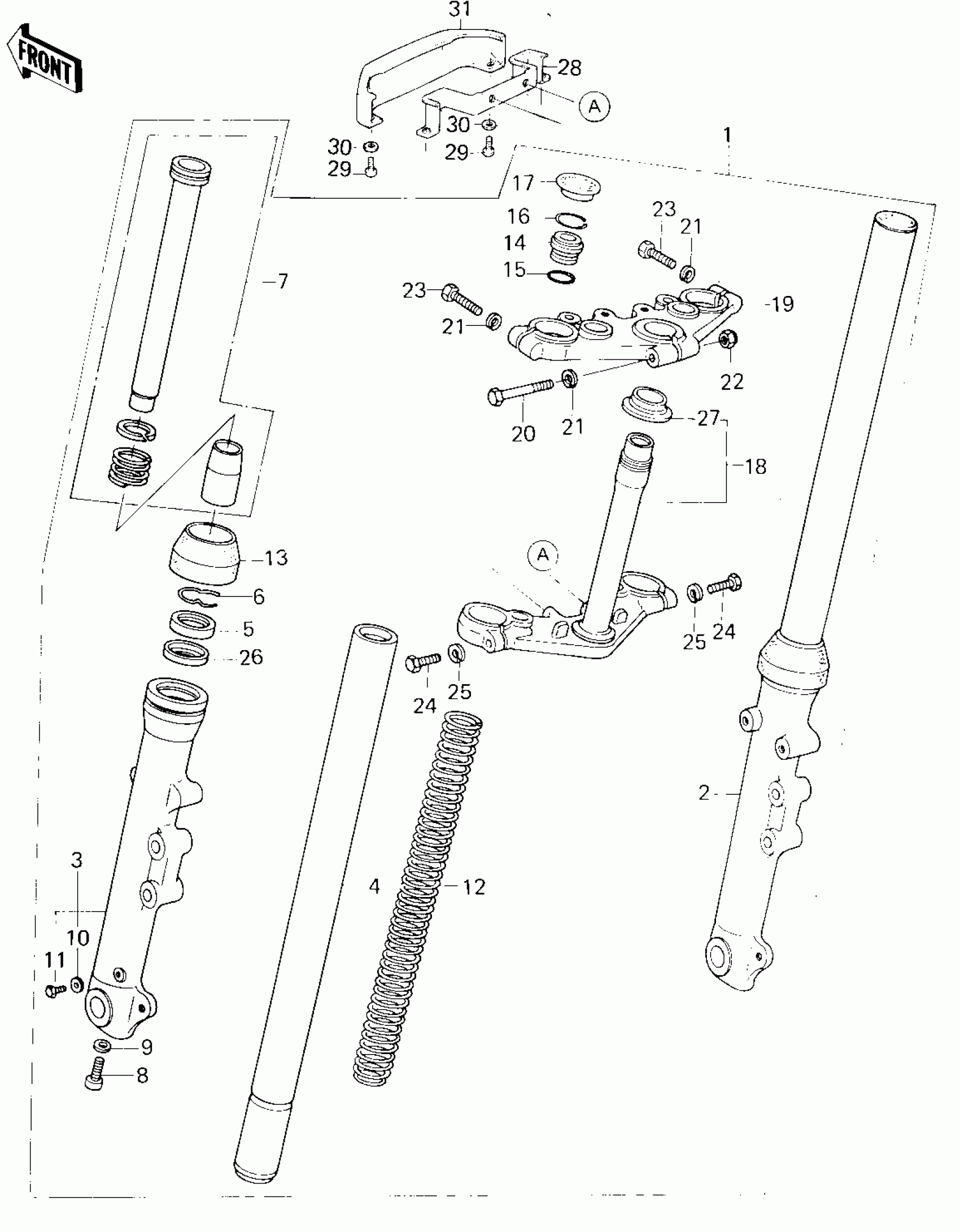

Kawasaki KZ400-H1 FRONT FORK Diagram
#
Description
Price
1
FORK-FRONT
44001-1214
$1,248.18
2
TUBE,RH,FORK OUTER
44006-1029
$202.55
3
TUBE,LH,FORK OUTER
44005-1029
$262.75
4
PIPE-FORK INNER
44013-1025
$312.80
5
SEAL-OIL,FORK
92049-1077
$20.75
6
RING,OIL SEAL STOPPER
44043-057
$6.52
7
CYLINDER-FORK
44022-1028
$97.96
8
BOLT,FORK CYLINDER
44041-078
$9.89
9
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
10
GASKET,DRAIN PLUG
44045-047
$9.34
11
BOLT HEX HEAD 6X8
110B0608
$0.18
12
SPRING,FORK INNER
44026-1037
Unavailable
13
SEAL,FORK
92093-1063
$34.25
14
SEAT-FORK SPRING
44029-022
$11.61
15
RING-O
44046-025
$6.57
16
RING-SNAP
44044-023
$5.46
17
CAP,RUBBER,FORK TOP
11012-1021
Unavailable
18
HOLDER-FORK UNDER
44037-1014
$349.92
19
HEAD,STEERING STEM
44039-1023
$189.97
20
BOLT,HEX HEAD,8X55
92001-1064
Unavailable
21
WASHER SPRING 8MM
461F0800
$0.40
22
NUT,LOCK,8MM
92015-1124
$5.42
23
BOLT,8X40
92001-1063
$9.63
24
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
25
WASHER SPRING 10MM
461F1000
$0.67
26
SPACER,FORK
92026-1005
Unavailable
27
RACE,STEERING STEM BEARING
92047-006
$12.67
28
BRACKET,FORK COVER
11034-1698
Unavailable
29
SCREW PAN HEAD 4X10
220B0410
$2.30
30
WASHER PLAIN 4MM
410B0400
$0.48
31
COVER,FORK
44033-1042
Unavailable
