Description

Price

1

DISC PLATE,FRONT

41080-1027

$546.56

2

CALIPER ASSY,L.H,

43041-1024

$487.10

3

BOLT

43045-006

$40.84

4

BLEEDER SET

43085-001

$24.57

5

PLUG

43088-002

Unavailable

6

NUT-HEX-FINE,10MM

315B1000

$0.58

7

PACKING,PISTON SEAL

43049-002

$13.90

8

PISTON,BRAKE,42M/M

43020-1012

Unavailable

9

DUST SEALD,RUBBER

43054-003

Unavailable

10

PAD SET

43082-1001

Unavailable

11

DUST SHILD,SHAFT

43052-005

Unavailable

12

"0" RING

43053-006

Unavailable

13

SPACER

43040-004

$10.00

14

WASHER SPRING 6MM

461F0600

$0.69

15

SCREW PAN HEAD 6X12

220B0612

Unavailable

16

BOLT,FLANGED,10X44

92001-1299

Unavailable

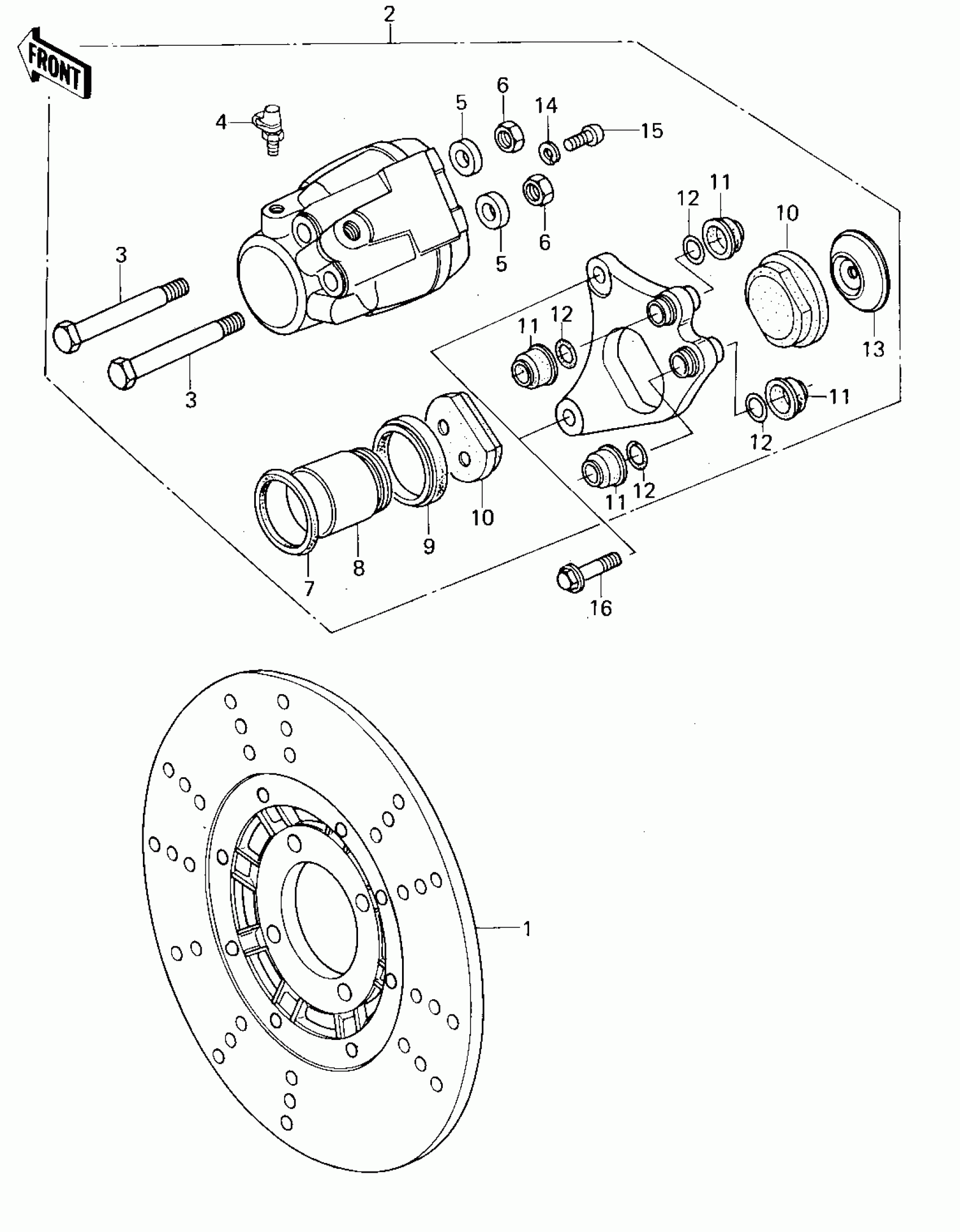

Kawasaki KZ400-H1 FRONT BRAKE Diagram

DISC PLATE,FRONT

CALIPER ASSY,L.H,

BOLT

BLEEDER SET

PLUG

NUT-HEX-FINE,10MM

PACKING,PISTON SEAL

PISTON,BRAKE,42M/M

DUST SEALD,RUBBER

PAD SET

DUST SHILD,SHAFT

"0" RING

SPACER

WASHER SPRING 6MM

SCREW PAN HEAD 6X12

BOLT,FLANGED,10X44
