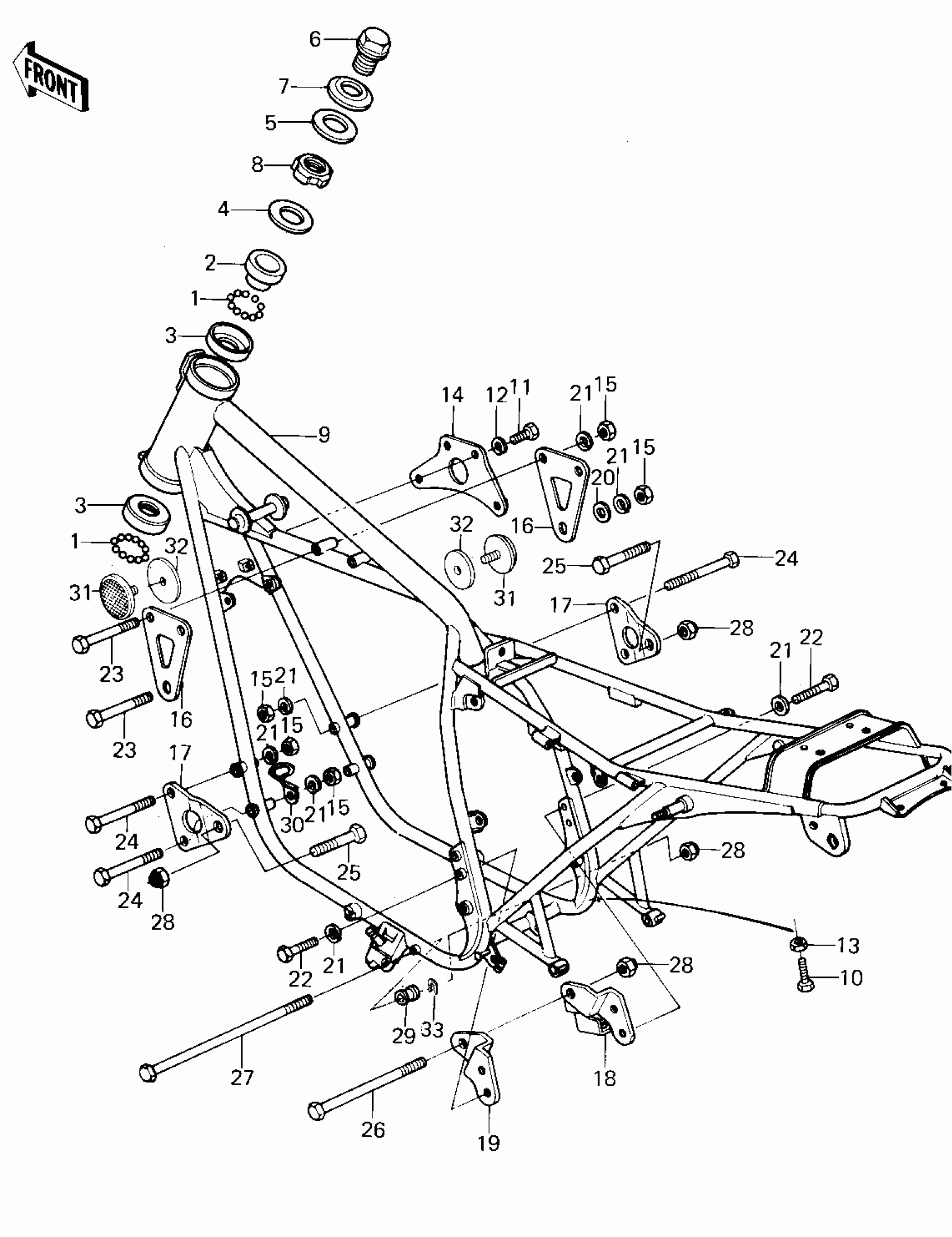

Kawasaki KZ400-H1 FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

BALL-STEEL,1/4

600A0800

$0.62

2

RACE,STEERING STEM BEARING

92047-006

$12.67

3

RACE,STEERING STEM BEARING

92048-006

$11.61

4

CAP,STEERING STEM

46098-016

$6.51

5

WASHER,WAVE

46100-003

$11.39

6

BOLT,16X25.5

92007-031

Unavailable

7

WASHER,16X41X4

92022-230

$11.93

8

NUT,30MM

92090-007

$11.71

9

FRAME-COMP

32002-1248

Unavailable

10

BOLT-UPSET,6X20

112G0620

$2.12

11

BOLT-UPSET 6X14

112B0614

Unavailable

12

WASHER SPRING 6MM

461F0600

$0.69

13

NUT 6MM

311B0600

$0.93

14

BRACKET,IGNITON COIL

32058-049

$11.85

15

NUT,8MM

311B0800

$0.67

16

BRACKET,ENGINE,HEAD

32029-1097

$17.40

17

BRACKET,ENGINE,FRONT

32029-1098

$12.27

18

BRACKET,ENG,REAR,R.H.

32029-1099

$16.34

19

BRACKET,ENG REAR,L.H.

32029-1100

$12.42

20

WASHER PLAIN 8MM

411B0800

$0.93

21

WASHER SPRING 8MM

461F0800

$0.40

22

BOLT,FLANGED,8X35

92001-1577

Unavailable

23

BOLT,FLANGED,8X60

92001-1581

$5.14

24

BOLT,HEX HEAD,8X65

92001-1236

$2.13

25

BOLT,HEX HEAD,10X50

92001-1254

$4.38

26

BOLT,HEX HEAD,10X200

92001-1260

$10.77

27

BOLT,10X300,REAR LOWR

92001-1272

Unavailable

28

NUT,LOCK,10MM

92019-021

$6.11

29

COLLAR,ENG MOUNTING

92027-160

Unavailable

29

COLLAR

92027-250

Unavailable

30

CLAMP,CABLE

92037-1015

Unavailable

31

REFLECTOR-REFLEX,FR

28012-016

$23.25

32

DAMPER,REFLECTOR

92094-011

$4.60

33

SHIM-ENG FIT FR,0.5MM

92025-053

Unavailable
