Description

Price

1

CASE ROCKER

11022-1001

Unavailable

2

FITTING,BREATHER

14067-006

$21.09

3

BODY,BREATHER

14070-1004

$120.10

4

BOLT,8X63

92002-1215

$8.76

5

BOLT,HEX HEAD,8X40

92002-1214

Unavailable

6

BOLT,HEX HEAD,6X54

92003-110

$4.99

7

BOLT,6X105

92003-194

Unavailable

8

RING-O,36MM

92055-1005

$6.16

9

RING-O,104.4X3.1

92055-1020

$14.23

10

TUBE,BREATHER

92059-1002

Unavailable

11

PLUG,36X7.5

92066-1006

$16.53

12

SCREW PAN HEAD 6X10

220B0610

$3.14

13

GEAR,METER SCREW

41060-1013

Unavailable

14

CLAMP,METER GEAR

92037-1030

Unavailable

15

SEAL-OIL

92050-075

$11.39

16

RING-O,13X1.9

92055-1021

$7.62

17

GASKET,TACHOMETER GEAR

92065-103

$4.07

18

BUSHING-METER GEAR

92087-1001

Unavailable

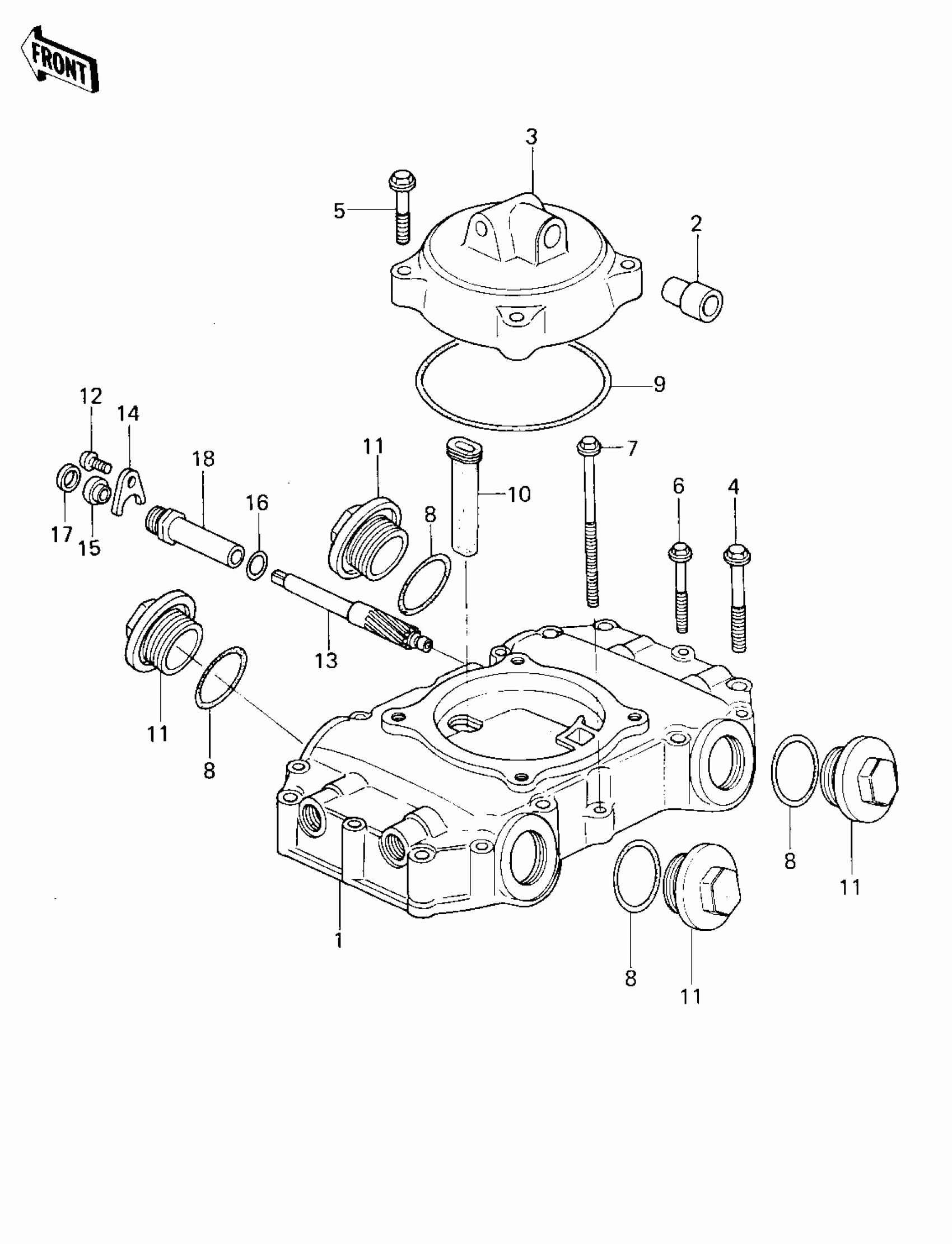

Kawasaki KZ400-H1 CYLINDER HEAD COVER Diagram

CASE ROCKER

FITTING,BREATHER

BODY,BREATHER

BOLT,8X63

BOLT,HEX HEAD,8X40

BOLT,HEX HEAD,6X54

BOLT,6X105

RING-O,36MM

RING-O,104.4X3.1

TUBE,BREATHER

PLUG,36X7.5

SCREW PAN HEAD 6X10

GEAR,METER SCREW

CLAMP,METER GEAR

SEAL-OIL

RING-O,13X1.9

GASKET,TACHOMETER GEAR

BUSHING-METER GEAR
