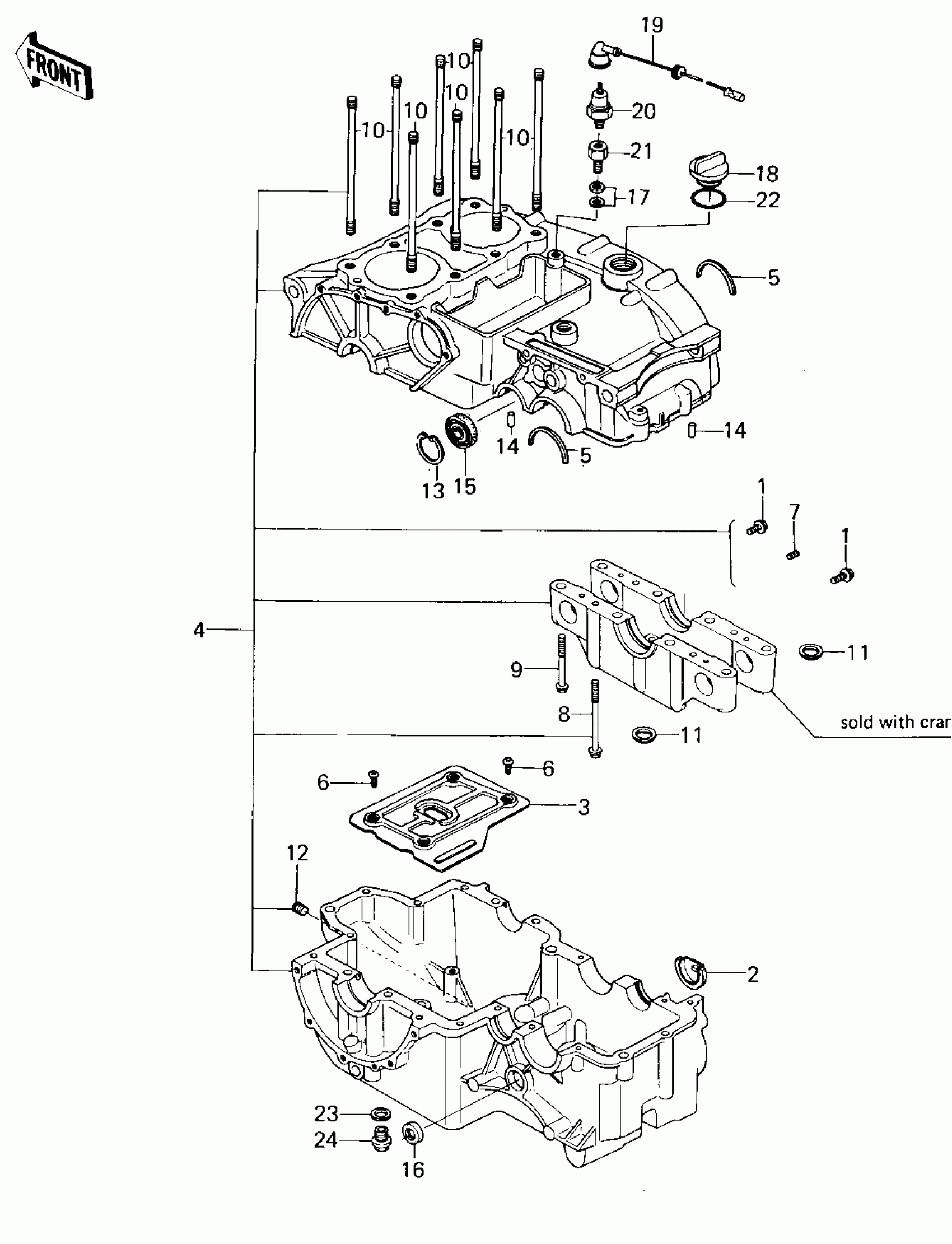

Kawasaki KZ400-H1 CRANKCASE Diagram
#
Description
Price
1
BOLT,FLANGED,6X8
130P0608
$2.12
1
BOLT,FLANGED,6X8
130P0608
$2.12
2
RECEIVER,OIL
13045-1001
Unavailable
3
PLATE,CRANKCASE
13169-1103
Unavailable
4
SET-CRANKCASE
14001-5087
Unavailable
5
RING-POSITION
14013-004
$10.19
6
SCREW PAN HEAD 6X12
220B0612
Unavailable
7
SCREW-SET-SOCKET,6X6
290Q0606
$6.34
7
SCREW-SET-SOCKET,6X6
290Q0606
$6.34
8
BOLT,FLANGED,10X91
92001-1004
$9.74
8
BOLT,FLANGED,10X91
92001-1004
$9.74
8
BOLT,FLANGED,10X91
92001-1004
$9.74
9
BOLT,FLANGED,8X58
92001-1005
$7.33
10
STUD,10X153
92004-062
$18.74
10
STUD,10X153
92004-062
$18.74
11
RING-O,OD=18
92055-048
$4.80
12
PLUG,OIL LINE,1/8X7
92066-059
Unavailable
12
PLUG,OIL LINE,1/8X7
92066-059
Unavailable
13
CIRCLIP,36M/M
481J3600
$5.45
14
PIN,DOWEL,6X16
92042-016
$5.00
15
OIL SEAL,PUSH ROD
92049-1041
$25.75
16
SEAL-OIL,TB13225.5
92051-005
$7.74
17
GASKET,10X14.5X1.5
11009-1105
$6.51
18
CAP-OIL FILLER
16115-013
$19.96
19
WIRE,LEAD,OIL SWITCH
26011-1078
Unavailable
20
SWITCH,OIL PRESSURE
27010-1157
Unavailable
21
BOLT,OIL SWITCH
92001-1020
$12.00
22
RING-O,31.5X2.6
92055-049
$4.31
23
GASKET,12X22X2
92065-097
$0.74
24
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
