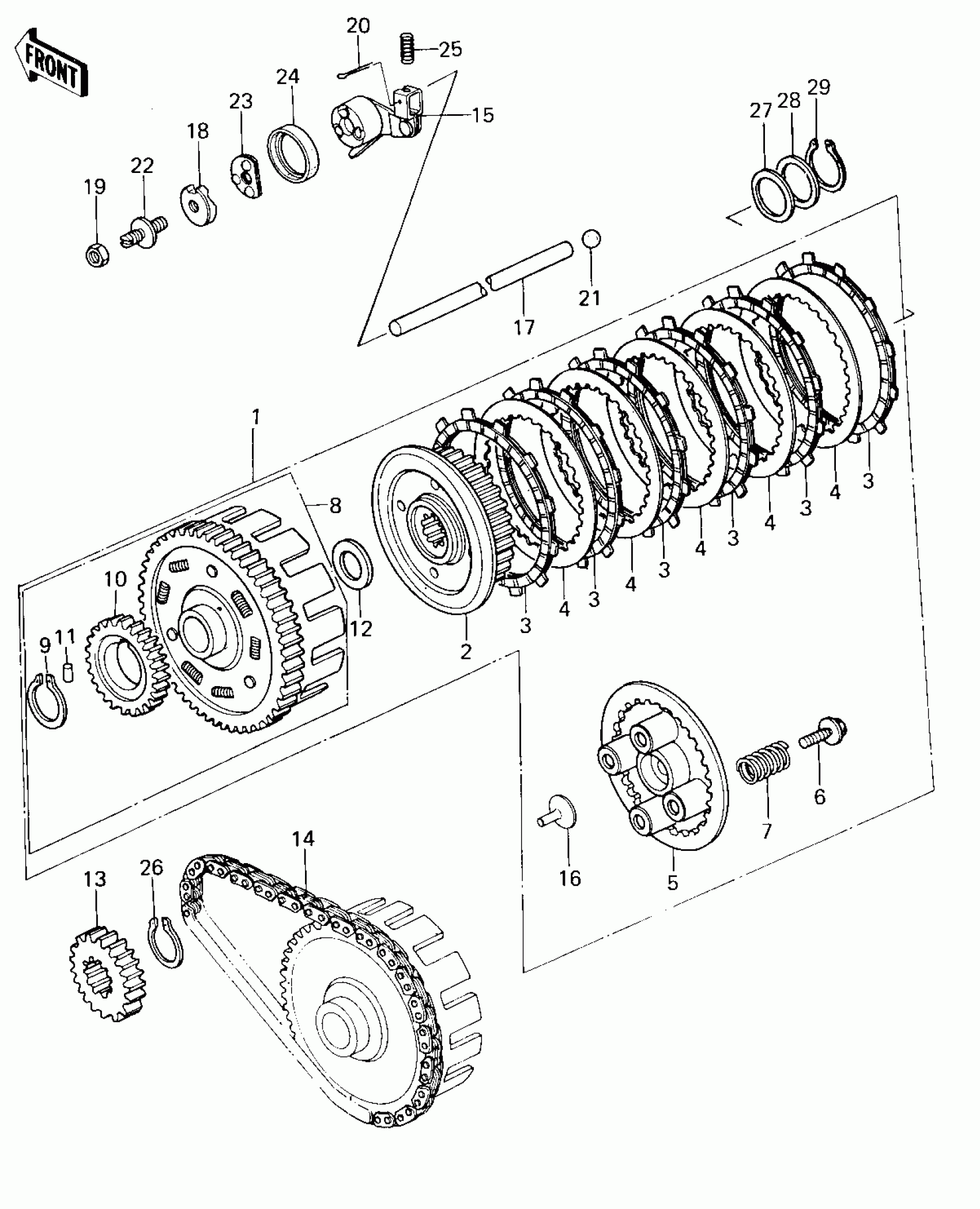

Kawasaki KZ400-H1 CLUTCH Diagram
#
Description
Price
1
CLUTCH-ASSY
13081-1019
Unavailable
2
HUB,CLUTCH
13087-040
Unavailable
3
PLATE,FRICTION
13088-1001
Unavailable
4
PLATE-CLUTCH,T=2.0
13089-026
$12.80
5
PLATE,CLUTCH SPRING
13187-1003
Unavailable
6
BOLT,FLANGED,6X18
92001-1066
$6.22
7
SPRING,CLUTCH
92081-1033
$7.38
8
HOUSING,CLUTCH
13095-1008
Unavailable
9
CIRCLIP, 38MM
480J3800
$5.44
10
GEAR,OIL PUMP,34T
59051-1001
$49.87
11
PIN, DOWELL, 6X6
610A0606
$2.60
12
WASHER,CLUTCH THRUST
92022-288
$12.83
13
SPROCKET,PRIMARY
13121-030
Unavailable
14
CHAIN,PRIMARY DRIVE
13122-005
Unavailable
15
RELEASE, CLUTCH
13102-1004
Unavailable
16
PUSHER,CLTCH SPRG PLT
13116-029
Unavailable
17
ROD,PUSH,CLUTCH
13116-1017
Unavailable
18
CAM-RELEASE,CLUTCH
13119-1003
$16.96
19
NUT-HEX-SMALL,8MM
318B0800
$0.59
20
PIN-COTTER,1.6X15
550D1615
$2.51
21
BALL-STEEL,3/8"
600A1200
$1.56
22
SCREW,8MM
92009-1009
$4.99
23
BEARING,BALL,CLUTCH
92045-1001
$11.60
24
SEAL-OIL,CLUTCH RELEASE
92049-1003
$10.89
25
SPRING,CLUTCH RETURN
92081-1058
$9.25
26
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
27
WASHER,25.3X32X0.5
92022-225
$5.52
28
WASHER,CLUTCH TRUST
92022-302
Unavailable
29
CIRCLIP-TYPE-C,24MM
480J2400
$6.32
