Description

Price

1

CAMSHAFT,VALVE

12044-5001

Unavailable

2

SPROCKET,CAM,34T

12046-1002

Unavailable

3

GUIDE,CHAIN,REAR

12053-1042

Unavailable

4

GUIDE,CAM CHAIN

12053-1001

Unavailable

5

CAP,CAM CHAIN TENSION

12064-005

Unavailable

6

ROD,PUSH

13116-1003

Unavailable

7

CHAIN CAM

21070-004

$147.34

8

SHAFT,CHAIN GUIDE

39115-1001

$4.36

9

PIN,DOWEL,3X25

551A0325

Unavailable

10

PIN,DOWEL,5X32

551A0532

$3.14

11

GUIDE,PUSH ROD

92001-1271

$45.33

12

BOLT,FLANGED,6X11

92003-208

$4.31

13

NUT,LOCK

92016-054

$12.55

14

WASHER,PLAIN

92022-1029

$0.66

15

WASHER,PLAIN

92022-1030

$4.68

16

WASHER,14X20X2

92022-1040

$3.22

17

"0" RING,22MM

92055-018

$6.02

18

SPRING,CHAIN TENSINR

92081-131

Unavailable

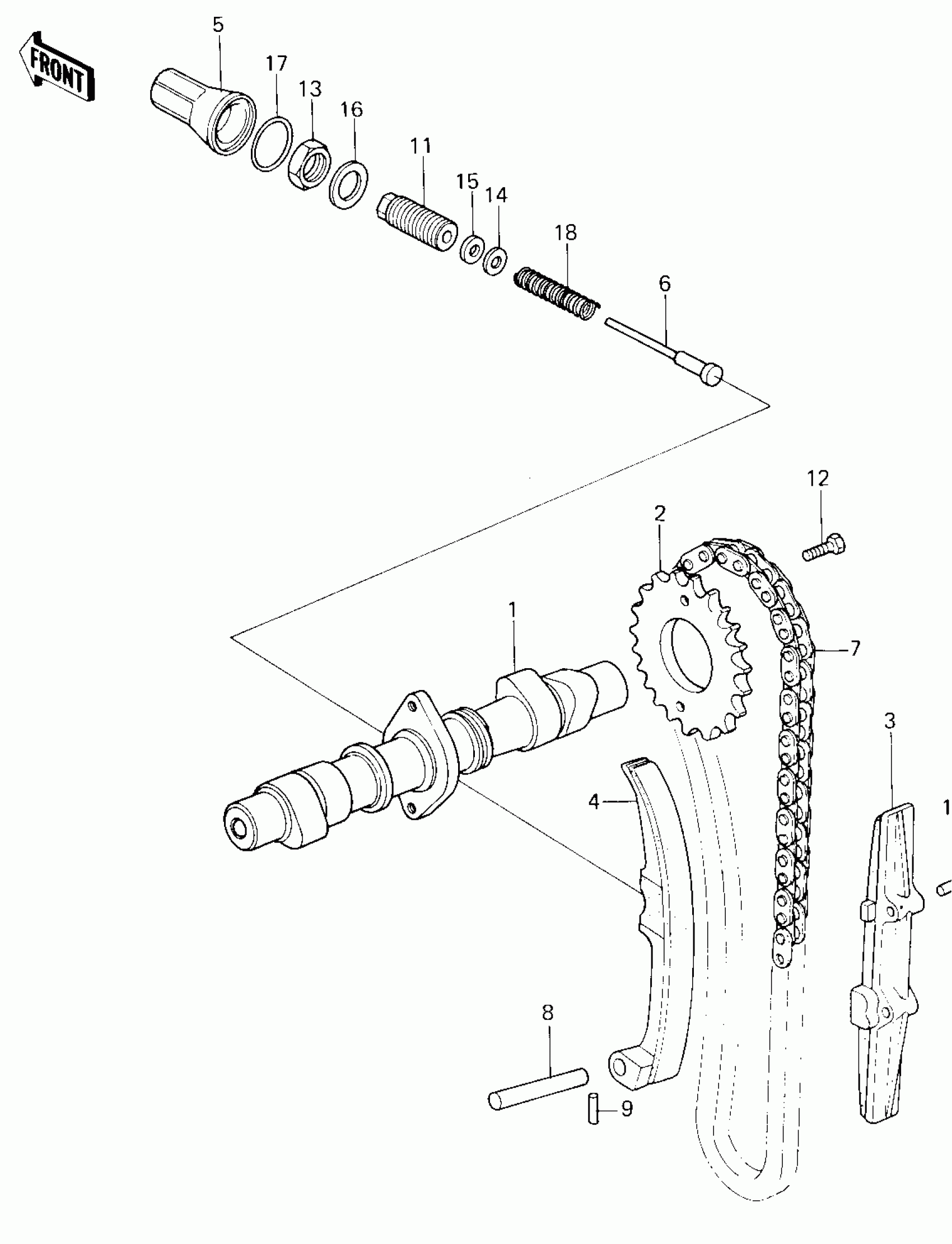

Kawasaki KZ400-H1 CAMSHAFT/CHAIN/TENSIONER Diagram

CAMSHAFT,VALVE

SPROCKET,CAM,34T

GUIDE,CHAIN,REAR

GUIDE,CAM CHAIN

CAP,CAM CHAIN TENSION

ROD,PUSH

CHAIN CAM

SHAFT,CHAIN GUIDE

PIN,DOWEL,3X25

PIN,DOWEL,5X32

GUIDE,PUSH ROD

BOLT,FLANGED,6X11

NUT,LOCK

WASHER,PLAIN

WASHER,PLAIN

WASHER,14X20X2

"0" RING,22MM

SPRING,CHAIN TENSINR
