Description

Price

1

PEDAL,BRAKE

43001-1035

$271.67

2

SPRING,BRAKE PEDAL

43005-029

$9.34

3

WASHER SPRING 8MM

461F0800

$0.40

4

NUT,CAP AND LOCK,8MM

92019-013

$14.88

5

WASHER,8.5X20X1.6

92022-1561

$4.31

6

NUT-HEX-FINE,10MM

315B1000

$0.58

7

TORQUE LINK REAR BRK

43007-016

Unavailable

8

WASHER SPRING 10MM

461F1000

$0.67

9

BOLT,10X25

92003-017

Unavailable

10

BOLT,10X35

92003-034

$13.21

11

PIN-SNAP,8MM

554A0800

$1.26

12

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

13

ROD-BRAKE

43011-009

$23.31

14

SPRING,BRAKE ROD

43012-001

$4.65

15

PIN COTTER 2.0X15

550D2015

$1.04

16

NUT,BRAKE ROD

92015-042

$6.22

17

PIN,6X17

92043-064

$4.69

18

PIN,BRAKE ROD

92043-065

$5.57

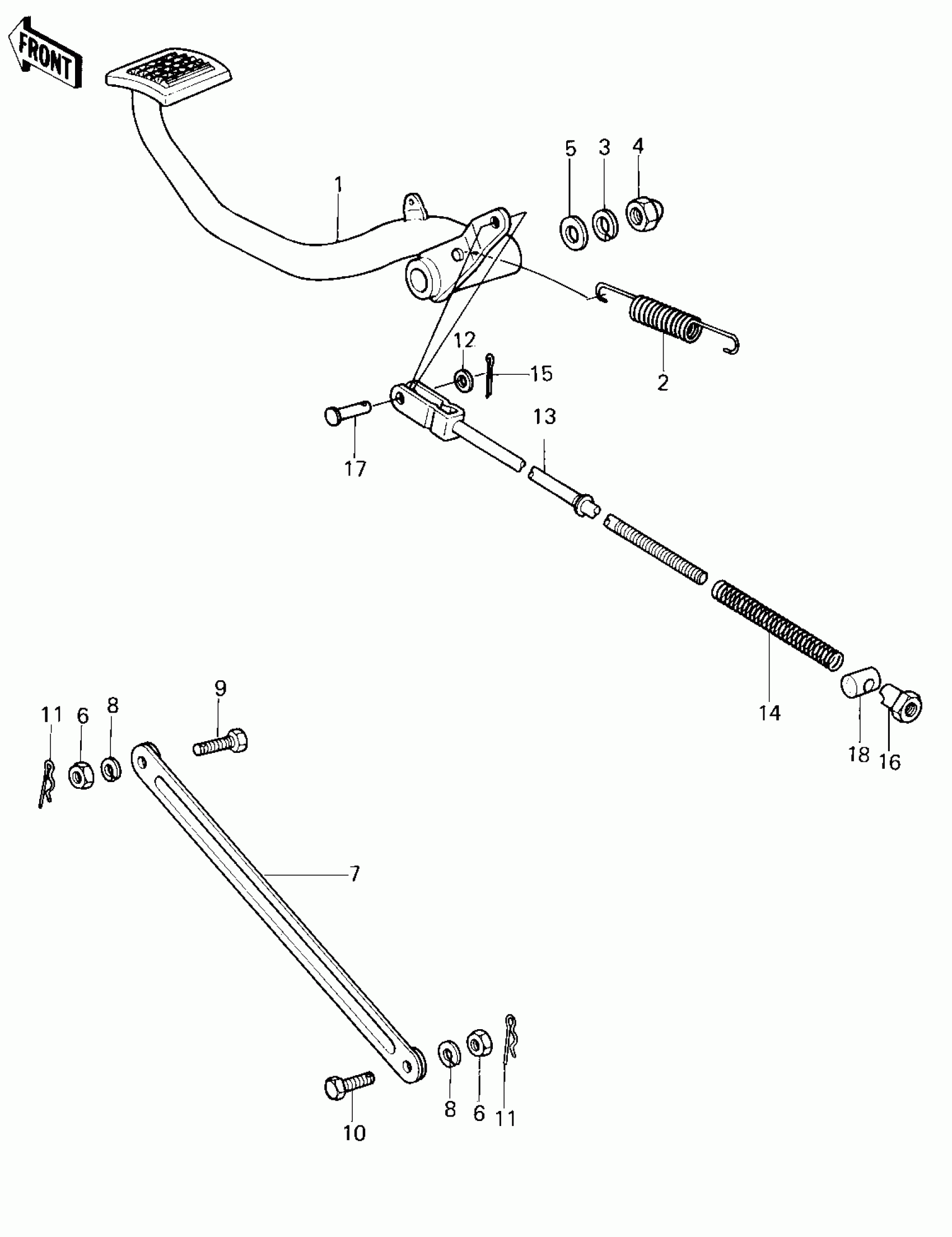

Kawasaki KZ400-H1 BRAKE PEDAL/TORQUE LINK Diagram
