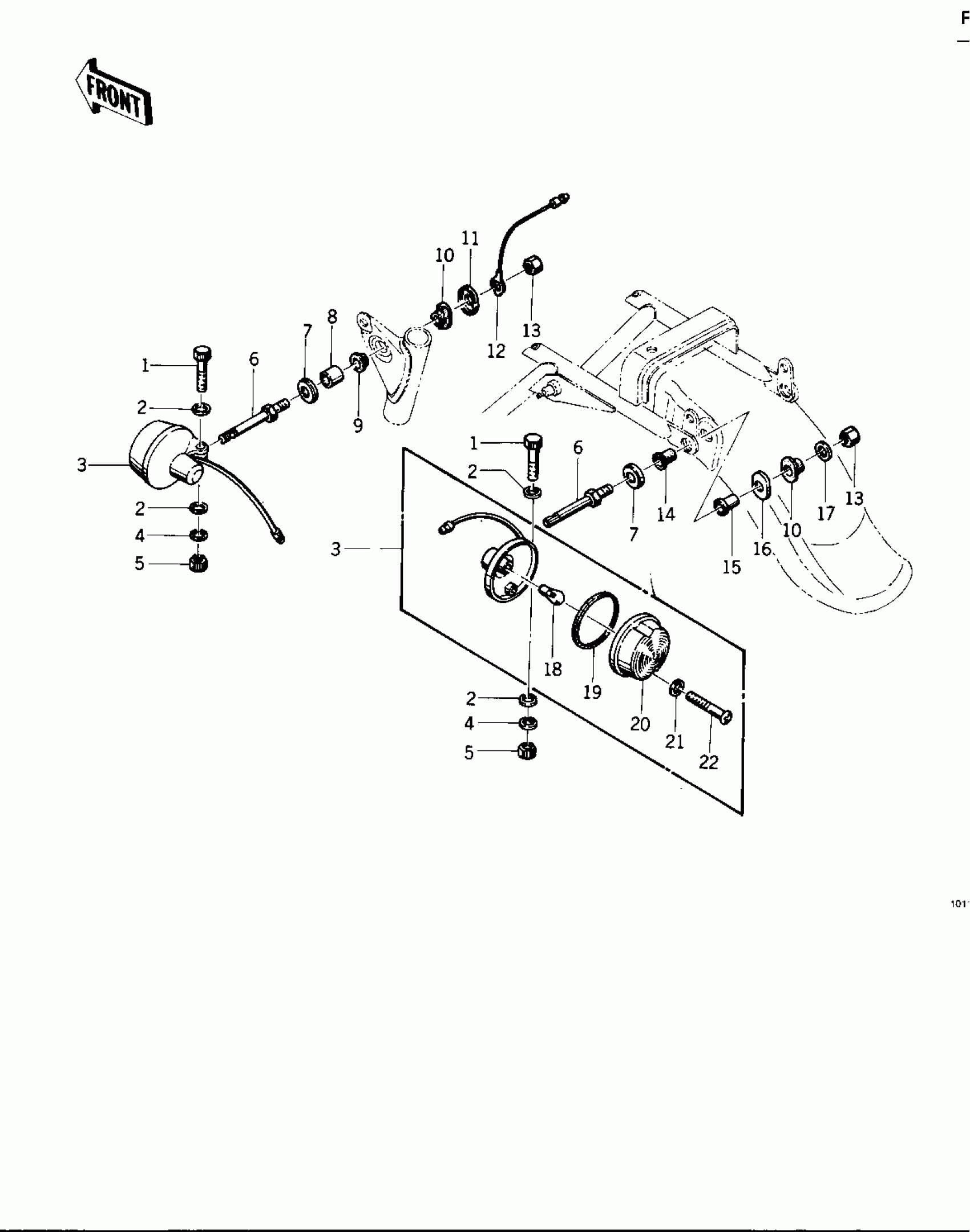

Kawasaki KZ400-D4 TURN SIGNALS ('76 -'77 KZ400 - D3/D4) Diagram

#

Description
Price

1

BOLT HEX HEAD 6X36

110N0636

$3.38

2

WASHER,PLAIN,6MM

410D0600

$0.77

3

LAMP-TURN SIGNAL

23040-029

$153.16

4

WASHER SPRING 6MM

461F0600

$0.69

5

NUT 6MM

312B0600

$0.72

6

BKT TURN SIGNL LIGHT

23051-049

$58.02

7

CAP,SIGNAL LIGHT STAY

92102-015

Unavailable

8

COLLAR,12.7X15.9X19

92027-223

$6.05

9

DAMPER RUBBER,SIG LM

92075-158

$5.47

9

DAMPER RUBBER,SIG LM

92075-158

$5.47

10

DAMPER RUBBER,SIGNAL

92075-238

$5.27

11

CAP,FR SIG LIGHT STAY

92102-014

$5.27

12

WIRE TURN SIGNAL LEAD

26011-081

$10.14

13

NUT-HEX-FINE

315B1200

$0.93

14

DAMPER RUBBER,SIGNAL

92075-241

$3.42

15

COLLAR,RR SIG LIGHT

92027-225

$9.58

16

CAP,RR SIG LIGHT STAY

92102-013

$3.71

17

WASHER PLAIN 12MM

411B1200

$0.93

18

BULB,12V 32CP(23W)

92069-055

$5.18

19

GASKET,TURN SIGNAL LAMP

23050-002

$4.97

20

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

$10.96

20

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

Unavailable

21

WASHER,PLAIN,4MM

23058-002

$2.49

22

SCREW-PAN HEAD,4X35

220E0435A

$8.56
